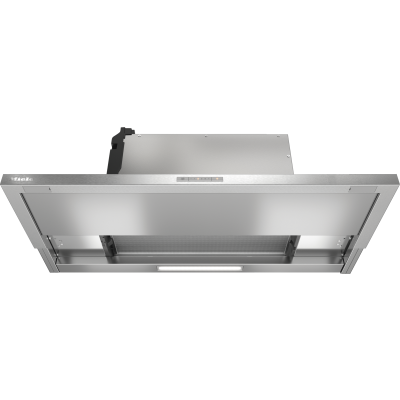

About the Miele DAS2920
- 36 Inch Under Cabinet Slide-Out Range Hood with 3-Speed
- Button Controls
- LED Lighting
- Dishwasher-Safe Mesh Filter
- Active AirClean Filter
- Miele CleanCover
Brand:
CFM:
427 CFM
Venting Type:
Convertible
Style:
Slide-Out Hood
Width:
35 3/8"
Height:
1 1/2"
Depth:
10 3/4"
Built-in ventilation hood with EasySwitch controls for convenient operation.
• Classic design - stainless-steel panel, 90 cm wide
• LED strip for uniform lighting
• Efficient filtration- 10-ply stainless steel grease filters
• Safe and easy to clean - Miele CleanCover
• Recirculation mode - Active AirClean or Longlife AirClean Filter
Inside the Box
Non-return flap
About Miele
Miele is a German manufacturer of high-quality domestic appliances and machines for commercial applications. The company was founded over 110 years ago in 1899 by Carl Miele and Reinhard Zinkann and has always been a family-owned, family-run company. Miele aims to manufacture the highest-quality domestic appliances and commercial equipment in the world and to be seen by markets worldwide as providing a top-class household product.
Key Features
Stainless-Steel Grease Filters (10-Layer)
- Easy to use and effective against grease.
- Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Safety Turn Off
- Always on the safe side
- Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Active AirClean Filter
- A completely odor-free kitchen.
- Efficient odor absorption: The disposable filter with active charcoal must be replaced regularly.
Miele CleanCover
- Convenience and safety in detail.
- Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
DAS2920 Mounting Plan
Specifications
GTIN
EAN
4002516495857
UPC
28S2920SUSA
Dimensions
Height
1 1/2 Inch
Depth
10 3/4 Inch
Width
35 3/8 Inch
Appearance
Blower Type
Internal
Blower Included
Yes
Venting Type
Convertible
Mounting Type
Under Cabinet
Glass Canopy
No
Fingerprint Resistant
No
Color
Stainless Steel
Type
Cabinet Insert
Style
Slide-Out Hood
Product Information
Model
DAS2920
Warranty Terms
2 years ? Miele Appliances are backed by a two year warranty. For additional details, visit https://www.mieleusa.com/c/service-10.htm
Brand
Miele
Smart
WiFi
No
Smart Accessory Required
No
Capacity
CFM
427 CFM
Duct Size
6 Inch
Technical Details
Approved for Outdoor Use
No
Voltage
120 Volts
Amps
15
Features
Delay Shut-Off
No
Lights
LED
Dishwasher Safe Filters
Yes
Filter Type
Mesh
Number of Fan Speeds
3
Safety
Safety shut-off
Yes
Blower
AC motor
Yes
Dual-action blower
Yes
Lighting
Color temperature in K
3500 Kelvin
Light intensity in Lx
300 lx
Number x W
1 x 3,0 W
LED ClearView lighting
Yes
Filter System
Number of dishwasher-safe stainless-steel grease filters
1
Control Panel
CleanCover
Yes
Touch controls on glass
Yes
Electronic controls
Yes
Design
Color
Stainless Steel
Operating Modes
Recirculated mode
Convertible
Technical Data
Canopy width
35 3/8"
Canopy height
1 1/2"
Number of phases
1
Frequency in Hz
60
Fuse rating in A
15
Voltage in V
120
Total connected load in kW
0.35
Standard plug fitted
Yes
Length of electrical wire in ft. (m)
2 (0.8)
Net weight in lbs.
36
Minimum height above gas cooktop
26" (max. 12.6 kW total power, burner ≤ 4.5 kW)
Minimum distance above electric cooktops
24 1/8"
Depth of hood canopy
10 3/4"
Optional Accessories
OdorFree charcoal filter
No
Installation Notes
Vent connection at top
Yes
Construction Type
Built-in ventilation hood
Yes
General
Manufacturer
Miele
