Accessories
1 Item(s)

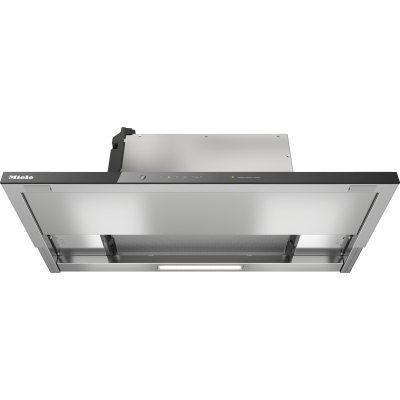

About the Miele DAS4930
- 36 Inch Under Cabinet Smart Range Hood with 3-Speed/625 CFM Blower
- Touch Control
- LED Lighting
- Dishwasher-Safe Mesh Filter
- Con@ctivity
- Delayed Shutdown
- Filter Saturation Indicator
- Safety Turn Off
- Active AirClean Filter
Brand:
CFM:
625 CFM
Venting Type:
Convertible
Style:
Slide-Out Hood
Width:
35 3/8"
Height:
1 1/2"
Depth:
10 3/4"
Built-in ventilation hood with intuitive SmartControl controls.
• Elegant design - Obsidian Black control panel, 36" wide
• Unique user convenience - Con@ctivity
• LED strip for uniform lighting
• Efficient filtration- 10-ply stainless steel grease filters
• Recirculation mode - Active AirClean or Longlife AirClean Filter
Inside the Box
Non-return flap
About Miele
Miele is a German manufacturer of high-quality domestic appliances and machines for commercial applications. The company was founded over 110 years ago in 1899 by Carl Miele and Reinhard Zinkann and has always been a family-owned, family-run company. Miele aims to manufacture the highest-quality domestic appliances and commercial equipment in the world and to be seen by markets worldwide as providing a top-class household product.
Key Features
Con@ctivity
- Automatic operation for intelligent blower control.
- Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Delayed Shutdown
- Automatic blower run-on
- Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Filter Saturation Indicator
- The countdown time is conveniently in view.
- Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
SmartControl
- Elegant touch controls
- High-quality and functional: enjoy convenient touch controls with a yellow display and dimmer function.
Safety Turn Off
- Always on the safe side
- Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Active AirClean Filter
- A completely odor-free kitchen
- Efficient odor absorption: The disposable filter with active charcoal must be replaced regularly.
Stainless-Steel Grease Filters (10-Layer)
- Easy to use and effective against grease
- Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Miele CleanCover
- Convenience and safety in detail
- Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
DAS4930 Mounting Plan
Specifications
GTIN
EAN
4002516496199
UPC
28S4930BUSA
Dimensions
Depth
10 3/4 Inch
Width
35 3/8 Inch
Height
1 1/2 Inch
Appearance
Blower Type
Internal
Blower Included
Yes
Venting Type
Convertible
Mounting Type
Under Cabinet
Glass Canopy
No
Fingerprint Resistant
No
Color
Obsidian Black
Type
Hood
Style
Slide-Out Hood
Product Information
Model
DAS4930
Brand
Miele
Warranty Terms
2 years ? Miele Appliances are backed by a two year warranty. For additional details, visit https://www.mieleusa.com/c/service-10.htm
Optional Accessories
OdorFree charcoal filter
No
Installation Notes
Vent connection at top
Yes
Smart
WiFi
Yes
Smart Accessory Required
No
Technical Details
Approved for Outdoor Use
No
Voltage
120 Volts
Amps
15
Features
Delay Shut-Off
Yes
Lights
LED
Dishwasher Safe Filters
Yes
Filter Type
Mesh
Number of Fan Speeds
3
Capacity
Duct Size
6 Inch
CFM
625 CFM
Technical Data
Number of phases
1
Frequency in Hz
60
Fuse rating in A
15
Voltage in V
120
Total connected load in kW
0.35
Standard plug fitted
Yes
Length of electrical wire in ft. (m)
2 (0.8)
Net weight in lbs.
36
Minimum height above gas cooktop
26" (max. 12.6 kW total power, burner ≤ 4.5 kW)
Minimum distance above electric cooktops
24 1/8"
Depth of hood canopy
10 3/4"
Canopy height
1 1/2"
Canopy width
35 3/8"
Lighting
LED ClearView lighting
Yes
Number x W
1 x 3 W
Light intensity in Lx
300 lx
Color temperature in K
3500 Kelvin
Light dimmer function
Yes
Filter System
Number of dishwasher-safe stainless-steel grease filters
1
Control Panel
CleanCover
Yes
Programmable charcoal filter saturation indicator
Yes
Programmable grease filter saturation indicator
Yes
Grease filter saturation indicator
Yes
Delayed shutdown for 5 or 15 minutes
Yes
Programmable Intensive switch-off
Yes
Touch controls on glass
Yes
Electronic controls
Yes
Automatic function Con@ctivity 3.0 (WiFi)
Yes
Miele@home
Yes
Design
Color
Obsidian black
Operating Modes
Recirculated mode
Convertible
Construction Type
Built-in ventilation hood
Yes
Safety
Single-ply safety glass (ESG)
Yes
Safety shut-off
Yes
Blower
AC motor
Yes
Dual-action blower
Yes
General
Series
Slimline
Manufacturer
Miele
