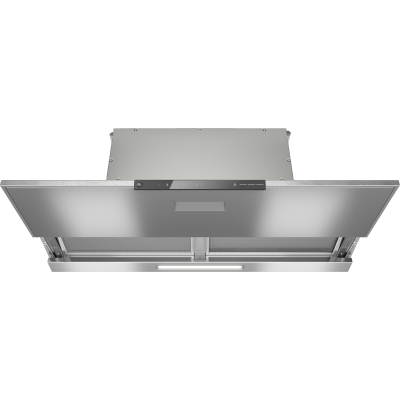

About the Miele DAS8930
- 34 Inch Under Cabinet Smart Range Hood with 3-Speed/625 CFM Blower
- Touch Control
- LED Lighting
- Dishwasher-Safe Mesh Filter
- Con@ctivity
- Delayed Shutdown
- Filter Saturation Indicator
- Safety Turn Off
- Active AirClean Filter
Brand:
CFM:
625 CFM
Venting Type:
Convertible
Style:
Standard Hood
Width:
34"
Height:
2 3/8"
Depth:
12 1/8"
Built-in ventilation hood with intuitive SmartControl White controls for use in narrow upper cabinets.
• Intricate design - flat stainless-steel panel, 36 in (90 cm)wide
• Unique user convenience - Con@ctivity
• LED strip for uniform lighting
• Efficient filtration- 10-ply stainless steel grease filters
• Recirculation mode - Active AirClean or Longlife AirClean Filter
Inside the Box
Non-return flap
About Miele
Miele is a German manufacturer of high-quality domestic appliances and machines for commercial applications. The company was founded over 110 years ago in 1899 by Carl Miele and Reinhard Zinkann and has always been a family-owned, family-run company. Miele aims to manufacture the highest-quality domestic appliances and commercial equipment in the world and to be seen by markets worldwide as providing a top-class household product.
Key Features
Con@ctivity
- Automatic operation for intelligent blower control.
- Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Delayed Shutdown
- Automatic blower run-on
- Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Filter Saturation Indicator
- The countdown time is conveniently in view.
- Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
SmartControl
- Elegant touch controls
- High-quality and functional: enjoy convenient touch controls with a yellow display and dimmer function.
Safety Turn Off
- Always on the safe side
- Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Active AirClean Filter
- A completely odor-free kitchen
- Efficient odor absorption: The disposable filter with active charcoal must be replaced regularly.
Stainless-Steel Grease Filters (10-Layer)
- Easy to use and effective against grease
- Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Miele CleanCover
- Convenience and safety in detail
- Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
DAS8930 Mounting Plan
Specifications
Product Information
Warranty Terms
2 years ? Miele Appliances are backed by a two year warranty. For additional details, visit https://www.mieleusa.com/c/service-10.htm
Model
DAS8930
Brand
Miele
Technical Data
Depth of hood canopy
12 1/8"
Canopy height
2 3/8"
Canopy width
34"
Minimum distance above electric cooktops
24 1/8"
Minimum height above gas cooktop
26" (max. 12.6 kW total power, burner ≤ 4.5 kW)
Net weight in lbs.
42
Number of phases
1
Frequency in Hz
60
Fuse rating in A
15
Voltage in V
120
Total connected load in kW
0.35
Standard plug fitted
Yes
Length of electrical wire in ft. (m)
2 (0.8)
Safety
Safety shut-off
Yes
Blower
AC motor
Yes
Dual-action blower
Yes
Lighting
Light dimmer function
Yes
Color temperature in K
3500 Kelvin
Light intensity in Lx
270 lx
Number x W
1 x 3 W
LED ClearView lighting
Yes
Filter System
Number of dishwasher-safe stainless-steel grease filters
2
Control Panel
CleanCover
Yes
Programmable charcoal filter saturation indicator
Yes
Programmable grease filter saturation indicator
Yes
Grease filter saturation indicator
Yes
Delayed shutdown for 5 or 15 minutes
Yes
Programmable Intensive switch-off
Yes
Touch controls on glass
Yes
Electronic controls
Yes
Automatic function Con@ctivity 3.0 (WiFi)
Yes
Miele@home
Yes
GTIN
EAN
4002516495628
UPC
28S8930SUSA
Optional Accessories
OdorFree charcoal filter
No
Installation Notes
Installation template
Yes
Vent connection at top and rear
Yes
Vent connection at top
Yes
Smart
Smart Accessory Required
No
WiFi
Yes
Dimensions
Height
2 3/8 Inch
Depth
12 1/8 Inch
Width
34 Inch
Appearance
Blower Type
Internal
Blower Included
Yes
Venting Type
Convertible
Mounting Type
Under Cabinet
Glass Canopy
No
Fingerprint Resistant
No
Color
Stainless Steel
Type
Insert Liner
Style
Standard Hood
Capacity
CFM
625 CFM
Duct Size
6 Inch
Features
Number of Fan Speeds
3
Delay Shut-Off
Yes
Lights
LED
Dishwasher Safe Filters
Yes
Filter Type
Mesh
Design
Color
Stainless steel
Operating Modes
Recirculated mode
Convertible
Construction Type
Built-in ventilation hood
Yes
Technical Details
Approved for Outdoor Use
No
Voltage
120 Volts
Amps
15
General
Manufacturer
Miele
