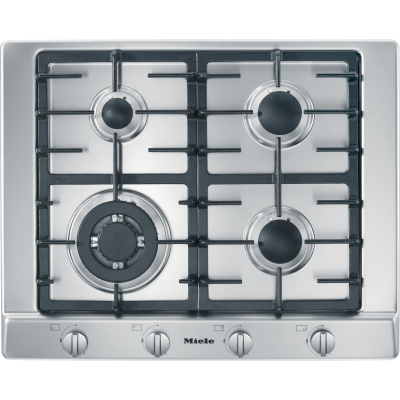

About the Miele KM2012G
- 24 Inch Gas Cooktop with 4 Sealed Burners
- Continuous Grate
- Mono Wok Burner
- Ignition Safety Control
- Side Knob Controls
- QuickStart
- GasStop and Restart
Brand:
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
25 9/16"
Height:
2 1/8"
Depth:
20 1/2"
Cutout Width:
22 1/16"
Cutout Depth:
18 7/8"
Volts:
120 Volts
Amps:
15
The flexibility of the Miele gas cooktop is consistent only with the performance of the product. Designed with at least one super burner, each new unit has a high heat output. The super burner is conveniently located in the front of the cooktop, making the wok stir-fry, pan-sauté or just a large pot cooking practical and safe. Gas cooking is not always about power, control is also essential. Operating at low heat output is often as important as setting high power, and all Miele units allow you to do so. In order to further minimize heat, the simmering plate ensures that excess heat is removed from the pan. Miele has resolved any safety concerns when the flame is burned with its unique re-ignition system. This solution combines the speed and reliability of automatic re-ignition with the thermocouple protection flexibility. If a flame goes out for any reason, a re-ignition is initiated. If the flame is not re-lighted, the system will shut down the gas flow to ensure optimal level safety. The cooktop watches on its own, giving you a little less to worry about. Miele's new collection of gas cooking surfaces reflects powerful performance with a dynamic layout that helps you choose a cooktop with the right look for your kitchen environment; hexagonal or contemporary linear style.
About Miele
Since 1899, Miele has created thoughtfully designed, precisely engineered home appliances that fulfill the company's founding promise of 'Immer Besser' - a German phrase meaning 'Forever Better'. Designed for longevity and durably crafted, our full suite of home appliances delivers many years of exceptional performance, complementing any kitchen décor. Discover how Miele can create special moments... every day - offering a versatile design, which stands the test of time, functionality that simplifies everyday tasks and quality that will endure for decades.
Key Features
Mono Wok Burner
- For particularly versatile cooking convenience.
4 Completely Sealed Burners
- Fully sealed burners Contain spills and allow easy cleaning and maintenance.
Side Control Panel
- Offer easier and safer cooking, preventing children from reaching over hot burners to adjust their temperature.
Stainless Steel Knobs
- It provides improved performance and elegance, giving it a luxurious look and feel.
Fast Ignition System
- No need to press or hold the control: convenient rotary electronic controls switch the burners on.
Ignition Safety Control
- In case of an excessively long operation, the gas shuts off automatically.
Continuous Grate
- Allows pots to move effortlessly from the burner without lifting.
Wok Ring Included
- Removable wok ring included to securely hold a wok over the flame while cooking on the side burner.
Manuals & Downloads
KM2012G Installation and User Manual
KM2012G Specification Sheet
KM2012G Warranty
Specifications
GTIN
EAN
4002516354093
UPC
26201250USA
Appearance
Surface Color
Stainless Steel
Color
Stainless Steel
Control Type
Knobs
Type
Drop-In
Style
Sealed Burner
Number of Burners
4
Fuel Subtype
Natural Gas
Fuel Type
Gas
Glass Surface
No
Downdraft Venting
No
Product Information
Model
KM2012G
Brand
Miele
Warranty Terms
2 years ? Miele Appliances are backed by a two year warranty. For additional details, visit https://www.mieleusa.com/c/service-10.htm
Technical Details
Voltage
120 Volts
Amps
15
Smart
WiFi
No
Dimensions
Cutout Depth
18 7/8 Inch
Cutout Width
22 1/16 Inch
Actual Height
2 1/8 Inch
Actual Depth
20 1/2 Inch
Actual Width
25 9/16 Inch
Dimensions & Weight
Gross Weight
50 Lbs
Minimum Recommended Distance to Ventilation Hood
30"
Minimum Countertop Thickness
13/16"
Minimum Back Spacing From Wall
2 3/4"
Cutout Depth
20 3/8"
Cutout Width
22 3/8"
Unit Depth
21 5/16"
Unit Height (To Gas Connection)
3 1/4"
Unit Width
24"
Gas
Gas Connection
1/2" NPT
Maximum Gas Supply Pressure
14" WC (34.9 mb), 1/2 psi (3.5 kPa)
Minimum Gas Supply Pressure
6" WC (15 mb)
Gas Burners
Total Maximum BTU Output
45,300 BTU
Wok Burner (Front Left)
(1) 15,300 BTU
Super Burner
(1) 12,000 BTU
High-Speed Burner
(2) 9,000 BTU
Overview
LP Conversion
No
Control Location
Side
Control Type
Knobs
Color
Stainless Steel
Style
Sealed Burner
Fuel Type
Natural Gas
Type
Cooktop
Electrical
Power Cord
NEMA 5-15P, 4 ft (1.2 m)
Frequency
60 Hz
Amps
15 A
Volts
120 V
General
Manufacturer
Miele
