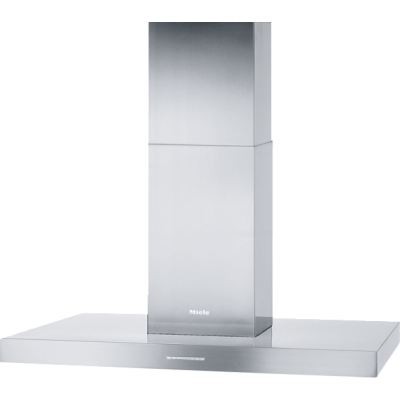

About the Miele PUR98D
- 36" Island Ventilation Hood 625 CFM
- Stainless Steel and Dishwasher Safe Filters
- Powerful and quiet: Radial blowers on both sides ensure high air throughput and vented with low noise levels
- Sealed, smooth surface prevents contact with the electrical components/motor
- In recirculation mode odors are absorbed and neutralized completely
- Optional - Convertible to Recirculating
- LED lighting and backlit controls for easy use
Brand:
CFM:
625 CFM
Venting Type:
Convertible
Style:
Chimney Style
Width:
35 3/8"
Height:
27 3/18"
Depth:
23 5/8"
Key Features
Booster Setting
- The Booster setting provides very high air flow and is only intended for brief operation, for example, when heavy smoke or strong odors develop when food is burned.
- The Booster setting can be programmed so that the blower automatically switches back to Setting 3 after 5 minutes.
CleanCover
- Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. T
Active AirClean Filter
- The Active AirClean filter works in addition to the grease filter for recirculation mode to remove odors efficiently and long-term.
Stainless-Steel Grease Filters
- The 10-ply dishwasher-safe stainless steel grease filter is dishwasher safe.
Powerful Motors
- High-quality radial blowers provide suction on two sides to guarantee powerful air throughput at all times as well as optimized vented, all while operating at a comfortably low noise level.
Safety Shut Off
- The ventilation hood will switch off automatically after 10 hours to ensure maximum safety even in case of operating errors.
PUR98D Installation and User Manual
Specifications
Product Information
Warranty Terms
2 years ? Miele Appliances are backed by a two year warranty. For additional details, visit https://www.mieleusa.com/c/service-10.htm
MPN
28410857USA
Model
PUR98D
Brand
Miele
Smart
Remote Monitoring
No
Remote Control
No
Google Home
No
Alexa
No
Bluetooth
No
WiFi
No
Remote Diagnostics
No
Dash Replenishment
No
Smart Accessory Required
No
Dimensions
Height
27 3/18 Inch
Depth
23 5/8 Inch
Width
35 3/8 Inch
Appearance
Blower Type
Internal
Blower Included
Yes
Venting Type
Convertible
Mounting Type
Island Mount
Glass Canopy
No
Fingerprint Resistant
No
Color
Stainless Steel
Type
Hood
Style
Chimney Style
GTIN
JAN
4002515940082
UPC
28410857USA
EAN
4002515940082
Blower
Minimum height above gas cooktop (max. 12.6 kW total power, bu
26 (660)
Dual-action blower
Yes
Number of phases
1
Fuse rating in A
15
Voltage in V
120
Total connected load in kW
0.36
Hard-wired
Yes
Net weight in lbs. (kg)
75 (34.0)
Minimum distance above electric cooktops in in.(mm)
24 1/8 (610)
Depth of hood canopy in in.(mm)
23 5/8 (598)
Height of hood canopy in in.(mm)
2 7/8 (70)
Canopy width in in.(mm)
35 3/8 (898)
Overall hood height for recirculation in in.(mm)
40 5/8 (1,030)-52 7/8 (1,340)
Overall hood height for vented and external in in.(mm)
38 1/4 (970)-50 (1,270)
Safety shut-off
YesTechnical data
AC motor
Yes
Technical Details
Approved for Outdoor Use
No
Voltage
120 Volts
Amps
15
Energy Star Rated
No
ADA Compliant
No
Features
Delay Shut-Off
Yes
Lights
LED
Dishwasher Safe Filters
Yes
Filter Type
Mesh
Number of Fan Speeds
4
Capacity
Duct Size
6 Inch
Permanent Air Flow Reduction
No
CFM
625 CFM
Standard accessories
Non-return flap
Included
Lighting
LED ClearView lighting
Yes
Light intensity in Lx
500
Color temperature in K
3,000
Cleaning convenience
Number of dishwasher-safe stainless-steel grease filters
3
CleanCover
Yes
Control panel
Programmable 'Intensive' switch-off
Yes
Intensive setting
Yes
Power levels (number excl. Intensive)
3
Light-touch controls
Yes
Electronic controls
Yes
Operating modes
Safety shut-off
Yes
OdorFree charcoal filter (order separately)
DKF12-900
Recirculated mode
Convertible
Design
Color
Stainless steel
Construction Type
Island ventilation hood
Installation notes
Telescopic chimney
Yes
Diameter of vent connection in in.(mm)
6 (150)
Vent connection at top
Yes
General
Manufacturer
Miele
