About the Monogram ZGU486NDTSS
- 48 Inch Slide-In Professional Gas Rangetop with 6 Sealed Burners
- Continuous Grates
- Griddle
- Stainless Steel Griddle Cover
- Ring-Lit Knobs
- Reversible Wok Grates
- WiFi Compatible
- CSA and ADA Compliant
Brand:
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
47 7/8"
Height:
8 1/2"
Depth:
27 1/2"
Volts:
120 Volts
Amps:
15
The Monogram Statement Collection rangetop is meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at. With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents. Delivering a modern approach to customization, the SmartHQ™ app (connection module required) allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven. The rangetop is designed to adapt to different cooking styles; its grates are reversible to provide you not just a flat surface, but also a uniquely contoured surface on the other side to accommodate round-bottom woks.
About Monogram
In the world of high-end appliances, Monogram stands out with its own brand of luxury. From a design perspective, sophisticated styling and exceptional craftsmanship set Monogram apart from all other appliance brands. Award-winning technology makes it possible to cook faster, clean easier and enjoy more time relaxing with family and friends. And there's nothing more luxurious than that.
Key Features
6 Sealed Burners
- Two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame
Continuous Grates
- Provide a flat, sturdy surface allowing easy movement of pans between burners
Griddle
- Delivers 18,000 BTUs of cooking power, allowing fast and consistent heating across the entire cooking surface
Stainless Steel Griddle Cover
- Helps to protect the rangetop and keep it looking pristine, and can also be used as a flat food-preparation surface when the rangetop is not in use
Ring-Lit Knobs
- Delivering a modern approach to accent lighting, the rings illuminate to indicate when a burner is in use
3-Piece Grates with Reversible Wok Feature
- Designed to adapt to different cooking styles, the reversible grates are flat on one side and uniquely contoured on the other to perfectly fit round-bottom woks
WiFi Compatible
- Turn your cooktop into a smart appliance with a connection module (sold separately)
Additional Features
- LP conversion kit included
- Solid Brass Blades on Precision Machine Knobs
- Seamless Stainless Top Frame
- ADA Compliant
ZGU486NDTSS Installation Instructions
Key Features

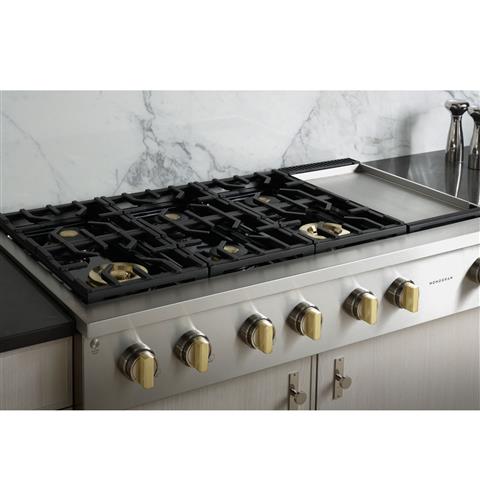

Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame
3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

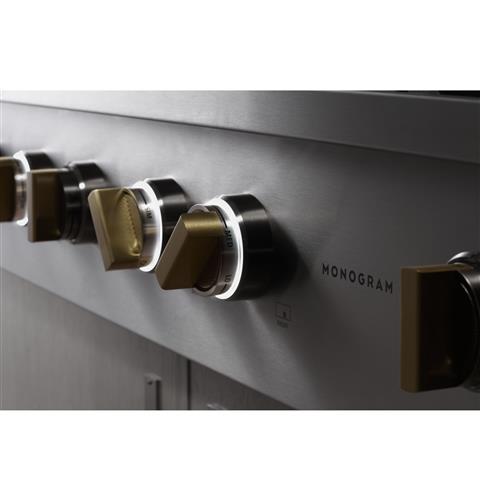

Ring-Lit Knobs
Delivering a modern approach to accent lighting, the rings illuminate to indicate when a burner is in use
Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

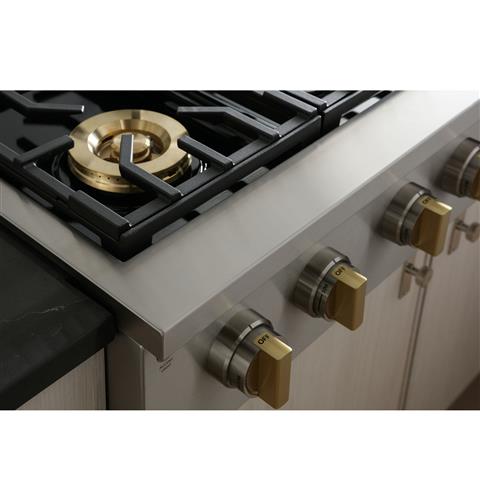

Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at

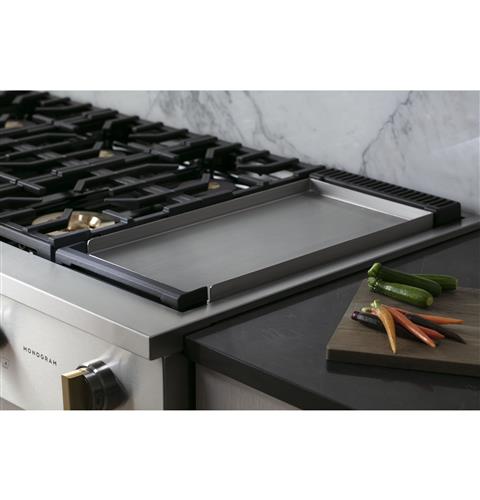

Stainless and Aluminum-Clad Griddle Included
This versatile griddle delivers 18,000 BTUs of cooking power, allowing fast and consistent heating across the entire cooking surface
Specifications
GTIN
EAN
0084691851219
UPC
084691851219
Features
Stainless Steel Grill / Griddle Covers
1
WiFi Connect
Requires Connection Module
Removable Drip Tray Liners
(1) Beneath Griddle
Fuel Type
Natural Gas (factory set)
Configuration
6 Burners; Griddle
140 Deg. Simmer Burner
All Burners - Adjustable
Thermostatically Controlled Griddle
Yes
Griddle
18,000-BTU, Stainless Steel and Aluminum Clad
Cooktop Burner Grate Features
Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Automatic Re-Ignition
Yes
Burner Indicator Light
Yes
Customizable Lighting
(Requires Connection Module)
Lighting
LED Bullnose and Knob Accent Lighting
Ignition System
Electronic
Control Location
Upfront
Appearance
Control Knobs
Diecast Metallic (Included), Stainless Steel with Brass Accents
Installation
Side-by-Side
Color Appearance
Stainless Steel
Technical Details
Voltage
120 Volts
Amps
15
LP Conversion
Yes
ADA Compliant
Yes
Star-K Certified
No
Sabbath Mode
No
Product Information
Warranty Terms
2 years ? Monogram Appliances are backed by a two year parts and labor warranty. For additional information, visit https://www.monogram.com/support
Model
ZGU486NDTSS
Brand
Monogram
Appearance
Downdraft Venting
No
Trim Color
Stainless Steel
Surface Color
Black
Color
Stainless Steel
Control Type
Knobs
Type
Rangetop
Style
Sealed Burner
Number of Burners
6
Fuel Subtype
Natural Gas
Fuel Type
Gas
Dimensions
Actual Width
47 7/8 Inch
Actual Depth
27 1/2 Inch
Actual Height
8 1/2 Inch
Gas Cooktop Features
Cooktop Accessory
Griddle
Dishwasher Safe Grates
Yes
Continuous Grates
Yes
Burner Output
Burner 6 Output
18,000
Burner 5 Output
23,000
Burner 4 Output
15,000
Burner 3 Output
15,000
Burner 2 Output
18,000
Burner 1 Output
23,000
Smart
WiFi
No
