$4,600.00
Was $5,060.00
You Save $460.00
You Save $460.00
FREE In-Home Delivery
Share your own
@Designer Appliances
Frequently Bought Together
1 Item(s)
-
Monogram 30 Inch Wall-Mounted Vent Hood - Stainless Steel (ZVW8301SWSS)$2,035.00 Save $185.00$1,850.00
Accessories
1 Item(s)

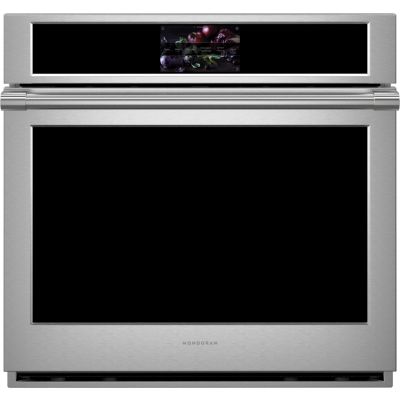

About the Monogram ZTS90DPSNSS
- 30 Inch Built-In Electric Smart Single Wall Oven with 5 Cu. Ft. Capacity
- WiFi Connect
- True European Convection
- Precision Cooking Modes
- Scan-To-Cook
- Sabbath Mode
- Temperature Probe
- Self-Clean Oven
- Star-K Certified
Brand:
Oven Style:
Single
Capacity:
5 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Color:
Stainless Steel
Width:
30"
Cutout Width:
28 5/8"
Cutout Height:
27 5/16"
Fuel Type:
Electric
Volts:
240 Volts
Amps:
20
Key Features
The Monogram Statement Collection
- Edge-to-edge handles, polished stainless steel, and hand-finished edges convey a sense of solidity and beauty.
LCD Controls
- Allow you to adjust oven settings with little effort.
WiFi Connect
- Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the home.
Precision Cooking Modes
- Master new recipes and perfectly execute favorite dishes using this ultra-smart system that automatically tracks cooking progress, modifies temperatures and adjusts cook times.
Hot Air Fry
- A must-have for health-conscious cooks, the Hot Air Fry mode crisps food to crunchy perfection, without using oils or butter.
Scan-To-Cook
- Innovative and time-saving, scan-to-cook technology ensures that packaged foods are always prepared correctly. A simple scan of the barcode with a smartphone delivers consistently, delicious results.
True European Convection with Direct Air
- Channels heated air from the top of the oven and circulate it around food on all sides for perfectly uniform baking and roasting.
5.0 Cubic Foot Capacity
- Easily accommodates even the largest meals.
Exclusive Self-Clean, (1 Full-Extension, 2 Regular) Oven Racks
- Glide in and out smoothly on stainless steel ball bearings, and are designed to be left in the oven during the self-clean cycle.
Ten-Pass Bake Element
- Covers more surface area for more even baking results.
Eight-Pass Broil Element
- It provides complete coverage and even browning, even for large dishes.
Self-Clean with Steam Clean Option
- It gives you flexible options for thorough oven cleaning.
Additional Features
- 10-Pass Dual Broil Element
- Closed Door Broiling
- 1 Self-Clean Heavy-Duty, Full Extension Oven Rack
- 2 Self-Clean Heavy-Duty Oven Racks
- 12-Hour Shut-Off Capability
- Audible Preheat Signal
- Auto Recipe Conversion
- Certified Sabbath Mode
- Control Lock Capability
- C° or F° Programmable
- Delay Time
- Electronic Clock & Kitchen Timer
- Mis-Wire Detection
- Proof Mode
- Remote Enabled
- Temperature Probe
- Warm Mode
- Amazon Alexa
- Drop
- IFTTT
- Innit
- Nest
- The Google Assistant
- Star-K Certified
- ADA Compliant
Manuals & Downloads
ZTS90DPSNSS Specification Sheet
Key Features
LCD controls
Allow you to adjust oven settings with little effort
WiFi Connect
Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the home
Precision cooking modes
Master new recipes and perfectly execute favorite dishes using this ultra-smart system that automatically tracks cooking progress, modifies temperatures and adjusts cook times
Scan to cook
Innovative and time saving, scan-to-cook technology ensures that packaged foods are always prepared correctly. A simple scan of the barcode with a smartphone delivers consistently, delicious results
5.0 cubic foot capacity
Easily accommodates even the largest meals
Specifications
Specifications:
Series
Statement
Product Information
Brand
Monogram
Model
ZTS90DPSNSS
Warranty Terms
2 years ? Monogram Appliances are backed by a two year parts and labor warranty. For additional information, visit https://www.monogram.com/support
Appearance
Fuel Type
Electric
Style
Single
Microwave
No
Speed Oven
No
Steam Oven
No
Door Style
Drop Down
Color
Stainless Steel
Fingerprint Resistant
No
Stainless Steel Handle
Yes
Control Type
Touch Sensor
Viewing Window
Yes
Drawer
None
Clock
Yes
Dimensions
Cutout Width
28 5/8 Inch
Cutout Depth
23 1/2 Inch
Cutout Height
27 5/16 Inch
Exterior Width
30 Inch
Depth to Handle
27 5/16 Inch
Smart
WiFi
Yes
Bluetooth
No
Alexa
Yes
Google Home
Yes
Remote Control
Yes
Remote Monitoring
Yes
Remote Diagnostics
Yes
Dash Replenishment
No
App Integration
IFTTT
Smart Accessory Required
No
Capacity
Capacity
5 Cu. Ft.
Oven Racks
3
Oven Features
Digital Temperature Display
Yes
Timer
Yes
Delay Bake
Yes
Fast Preheat
Yes
Convection
Yes
Convection Type
True European
Proof Mode
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Self-Cleaning Type
High Heat & Steam
Steam Clean
Yes
Glide Rack(s)
Yes
Temperature Probe
Yes
Broiler
Yes
Broiler Element Location
Top
Broiler Pan Included
No
Interior Oven Light
Yes
Removable Door
Yes
Technical Details
Star-K Certified
Yes
ADA Compliant
Yes
Undercounter Installable
Yes
Approved for Outdoor Use
No
Amps
20
Voltage
240 Volts
GTIN
UPC
084691844525
EAN
084691844525
Capacity
Total Capacity (cubic feet)
5.0
Filter
App Filter - Cabinet Width
Cooking 30 in. (Standard)
App Filter - WiFi Connect
Built-In
Appearance
Installation
Flush Appearance. Side-by-Side. Under Cooktop. Undercounter. Under Built-In Microwave. Under Built-In Advantium. Over Warming Drawer. Under Hearth Oven
Frameless Oven Door(s)
Stainless Steel
Oven Door Features
Drop-Down. Soft-Close Hinges. Oven Window
Design Style
Statement Collection
Color Appearance
Stainless Steel
Handle
Statement Collection. Stainless Steel
Features
Oven Features
10-Pass Bake Element. 10-Pass Dual Broil Element. Closed Door Broiling
Oven Interior
2 Halogen Interior Oven Lights. Black Gloss Finish. Hidden Bake
Configuration
Single Oven
Cooking Technology
Convection
Oven Rack Features
1 Self-Clean Heavy-Duty, Full Extension Oven Rack. 2 Self-Clean Heavy-Duty Oven Racks. 6 Ladder-Rack Positions
Fuel Type
Electric
Oven Control Features
12-Hour Shut-Off Capability. Audible Preheat Signal. Auto Recipe Conversion. C° or F° Programmable. Certified Sabbath Mode. Control Lock Capability. Scan-to-cook. Cook Time. Delay Time. Electronic Clock & Kitchen Timer. Mis-Wire Detection. Proof Mode. R
Connected Capabilities
Amazon Alexa. The Google Assistant. IFTTT. Nest. Drop. Innit
Cooking System
True European Convection with Direct Air. Variable Speed, Reverse Air Convection
Control Type
7" Full-Color Touch LCD Screen
Oven Cooking Modes
Convection Bake. Convection Bake Multi-Rack. Convection Broil Hi/Lo. Convection Roast. Hot-Air Frying. Precision Cooking Modes. Thermal Bake. Thermal Broil Hi/Lo. Keep Warm. Proof. Dehydrate
Self-Clean Oven Door Lock
Automatic
Oven Cleaning Type
Self-Clean with Steam Clean Option
WiFi Connect
Built-In
Cleaning Time
Variable with Delay Clean Option
Optional Accessories
ZX30VT1 Flush Vent Trim Accessory
Claims & Certifications
ADA Compliant
Yes
UL
Yes
California Prop 65
Yes
Power / Ratings
Amp Rating at 208V
20
Amp Rating at 240V
20
Bake Wattage
2850W
Broiler Wattage
4300W
Convection Wattage
2400W
KW Rating at 208V
3.4
KW Rating at 240V
4.5
Weights & Dimensions
Approximate Shipping Weight
184 lbs
Net Weight
166 lbs
Minimum Base Support
220 lbs
Cabinet Width
30"
Cabinet Depth
24"
Overall Height
28 11/16"
Overall Width
29 3/4"
Overall Depth
27 5/16"
Oven Interior Dimensions (W x H x D) (in.)
25" x 17 3/8" x 20 1/4"
Cutout Dimensions (w x h x d) (in.)
28 5/8" x 27 5/16" x 23 1/2"
Overall Depth Including Handle
27 5/16"
Oven Door Clearance
20 9/16"
Conduit Length
48" (72" available special order: WB18T10398)
Warranty
Parts Warranty
Limited 2-year entire appliance
Labor Warranty
Limited 2-year entire appliance
Warranty Notes
See written warranty for full details
General
Manufacturer
Monogram
