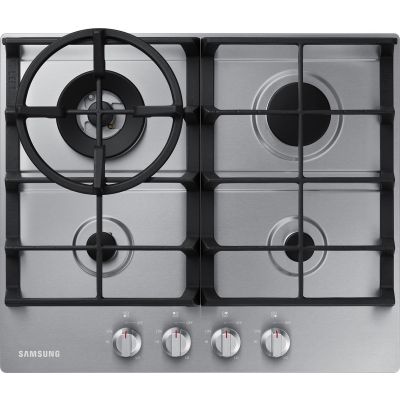

About the Samsung NA24T4230FS
- 24 Inch Gas Cooktop with 4 Sealed Burners
- Continuous Cast Iron Grates
- Flexible Burners
- Wok Ring
- Front Linear Controls
Brand:
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
23 5/8"
Height:
4 1/2"
Depth:
20 1/16"
Cutout Width:
22"
Cutout Depth:
18 7/8"
Volts:
120 Volts
This front control, 4-burner cooktop has two simmer burners perfect for preparing delicate sauces that require lower heat. The two larger burners are ideal for larger pans and woks. Cook with intense heat or with a gentle simmer. All the power of an excellent gas cooktop in a slim 24" design.
About Samsung
Samsung is guided by a singular vision: to lead the digital convergence movement. They believe that through technology innovation today, they will find the solutions they need to address the challenges of tomorrow. From technology, comes opportunity - for businesses to grow, for citizens in emerging markets to prosper by tapping into the digital economy, and for people to invent new possibilities. It's their aim to develop innovative technologies and efficient processes that create new markets, enrich people's lives and continue to make Samsung a trusted market leader.
Key Features
4 Sealed Burners
- Cook with intense heat or with a gentle simmer
- Sealed burners prevent food from dropping into burners for easy cleanup
Continuous Cast Iron Grates
- Continuous edge-to-edge cast iron grates cover the whole cooktop surface and let you move even your heaviest cookware across the cooktop with ease
4-Burner Flexible Cooktop
- A thoughtfully designed cooktop means there's room for all your pots and pans, large and small
Wok Ring
- Easily accommodate a round-bottomed wok pan on the custom Wok ring and also provides other large pans with extra stability, ensuring even distribution while you cook.
Front Linear Controls
- Easy, safe access so you can cook without worry
Other Features
- Flame Failure Device
- Power Burner
Manuals & Downloads
NA24T4230FS Installation Guide
NA24T4230FS Specification Sheet
NA24T4230FS User Manual
Specifications
Specifications:
Features
Continuous Cast Iron Grates
Yes
Front Linear Controls
Yes
Wok Ring
Yes
Sealed Burners
Yes
LP Conversion Kit
Yes
Flame Failure Device
Yes
Overview
Power Source
120V / Ã... 60 Hz Ã... / 1A
Color
Stainless Steel
Total Power (BTU)
33K
GTIN
UPC
887276420714
Technical Details
Voltage
120 Volts
LP Conversion
Yes
ADA Compliant
No
Star-K Certified
No
Sabbath Mode
No
Warranty
One (1) Year
All Parts and Labor
Gas Cooktop (BTU)
Left Rear
12.5K BTU (Power Burner)
Right Rear
10.5K BTU
Left Front
5K BTU (Simmer)
Right Front
5K BTU (Simmer)
Shipping Dimensions & Weight (WxHxD)
Weight
34.8 lb.
Dimensions
27 1/4" x 7 1/2" x 227 /8"
Product Dimensions & Weight (WxHxD)
Weight
29.5 lb.
Cooktop Cut-Out Dimensions
22" x 2" x 18 7/8"
Outside (Max) Cooktop Dimensions
23 5/8" x 4 1/2" x 20 1/16"
Gas Cooktop Features
French Top
No
Griddle
No
Grill
No
Continuous Grates
Yes
Appearance
Downdraft Venting
No
Fingerprint Resistant
No
Glass Surface
No
Trim Color
Stainless Steel
Surface Color
Stainless Steel
Color
Stainless Steel
Control Type
Knobs
Type
Drop-In
Style
Sealed Burner
Number of Burners
4
Fuel Subtype
Natural Gas
Fuel Type
Gas
Product Information
Model
NA24T4230FS
Brand
Samsung
Dimensions
Actual Width
23 5/8 Inch
Actual Depth
20 1/16 Inch
Cutout Depth
18 7/8 Inch
Cutout Width
22 Inch
Actual Height
4 1/2 Inch
Burner Output
Burner 4 Output
12500
Burner 3 Output
10500
Burner 2 Output
5000
Burner 1 Output
5000
Power Burner
Yes
Simmer Burner
Yes
Smart
Remote Control
No
Bluetooth
No
WiFi
No
General
Manufacturer
Samsung
