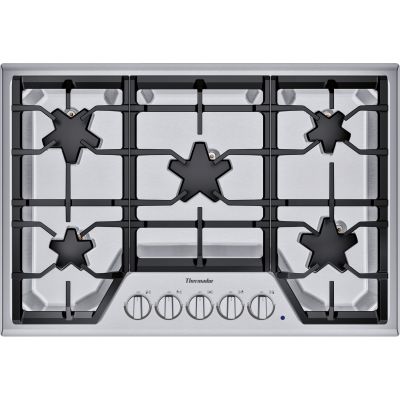

About the Thermador SGS305TS
- 30 Inch Master Series Gas Cooktop with Metal Knobs
- 52,000 BTU Total - 1 x 16K, 2 x 10K, 2 x 8K BTU Burners
- Electronic Re-Ignition
- Patented Star® Burner's
- Continuous Grates
- Indicator Light and Star-K
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
31"
Height:
5 3/8"
Depth:
21 1/4"
Cutout Width:
28 15/16"
Cutout Depth:
19 1/8"
Volts:
120 Volts
Amps:
15
Key Features
Electronic Re-Ignition
- Will automatically re-ignite the burner in case the flame goes out
Patented Star® Burner's
- Provides superior flame coverage for faster and more even pan heating
Continuous Grates
- Allow pots and pans to move effortlessly across the cooktop
Indicator Light
- Burner "On" indicator light
Star-K
- STAR-K Sabbath compliant
Metal Knobs
- Burner "On" indicator light
Our Expert Video Review
Manuals & Downloads
SGS305TS Specification Sheet
Specifications
Smart
WiFi
No
Overview
Controls
Metal Knobs
Gates
Cast Iron
Power of Back Left Burner (NG / LP)
10,000 / 9,100 BTU
Total BTU Load (NG / LP)
52,000 / 45,200 BTU
Sealed Burners
Yes
Power of Front Right Burner (NG / LP)
10,000 / 9,100 BTU
Power of Front Left Burner (NG / LP)
8,000 / 6,000 BTU
Power of Center Burner (NG / LP)
16,000 / 15,000 BTU
Power of Back Right Burner (NG / LP)
8,000 / 6,000 BTU
Dimensions and Weight
Width
31"
Net Weight
36 lbs
Height
5 3/8"
Depth
21 1/4"
Cutout Width
28 15/16"
Cutout Height
3 13/16"
Cutout Depth
19 1/8"
Burner Output
Set 3 QTY
1
Set 3 Output
16000
Set 2 QTY
2
Set 2 Output
10000
Set 1 QTY
2
Set 1 Output
8000
Power Burner
Yes
Burner 5 Output
10,000 BTU (front right)
Burner 4 Output
8,000 BTU (back right)
Burner 3 Output
16,000 BTU (center)
Burner 2 Output
10,000 BTU (back left)
Burner 1 Output
8,000 BTU (front left)
Specifications:
Series
Masterpiece
Cooktop
Cooktop
Function
Sabbath Mode
Yes
Burners / Elements
5
Control Type
Knobs
Induction
No
Hot Surface Indicator Light
No
Product Information
Warranty Terms
2 years ? Thermador appliances includes a 2-year limited warranty covering the entire unit, including parts and labor. For full warranty details, please visit https://www.thermador.com/us/
Model
SGS305TS
Brand
Thermador
Technical Details
Voltage
120 Volts
Star-K Certified
Yes
Amps
15
ADA Compliant
Yes
LP Conversion
No
GTIN
UPC
825225933069
Appearance
Type
Drop-In
Style
Sealed Burner
Number of Burners
5
Color
Stainless Steel
Continuous Grates
Yes
Glass Surface
No
Fuel Type
Gas
Fuel Subtype
Natural Gas
Downdraft Venting
No
Controls Location
Top
Technical Data
Volts
120V
Power Cord Length
60
Plug Type
3 Pong
Frequency
60 Hz
Amps
15A
Shabbos Compliance
Certification
STAR-K
Dimensions
Actual Width
31 Inch
Actual Height
5 3/8 Inch
Actual Depth
21 1/4 Inch
Cutout Width
28 15/16 Inch
Cutout Depth
19 1/8 Inch
Gas Cooktop Features
Grill
No
Griddle
No
French Top
No
Cooktop Accessory
No Accessory
General
Manufacturer
Thermador
