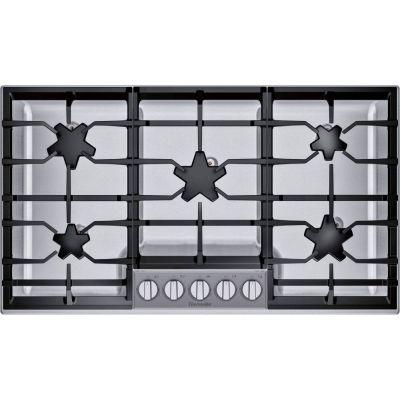

About the Thermador SGSX365TS
- 36 Inch Masterpiece Series with Star Burners, 1 Exra Low
- 58,200 BTU Total - 1 x 16K, 2 x 12K, 2 x 9100 BTU Burners, 1 with Extra Low Precise Simmer
- Continuous Grates
- Indicator Light and Star-K
- Electronic Re-Ignition
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
37"
Height:
5 3/8"
Depth:
21 1/4"
Cutout Width:
34 15/16"
Cutout Depth:
19 1/8"
Volts:
120 Volts
Amps:
15
Key Features
Star® Burner's
- Patented Star® Burner provides superior flame coverage for faster and more even pan heating
Electronic Re-Ignition
- Electronic re-ignition will automatically re-ignite the burner in case the flame goes out
Continuous Grates
- Continuous grates allow pots and pans to move effortlessly across the cooktop
Indicator Light
- Burner "On" indicator light
Star-K
- STAR-K Sabbath compliant
Additional Features
- Knobs feature a safety "push to turn" system
- High-grade, quality die cast metal knobs
- Seamless stainless steel burner pan makes for simpler surface cleaning
- Powerful 16,000 BTU center burn
- Sealed burners prevent spills from entering the burner box
- Two ExtraLow® Select simmer burners provide precise simmering capabilities
Our Expert Video Review
Manuals & Downloads
SGSX365TS Specification Sheet
Specifications
Function
Sabbath Mode
Yes
Burners / Elements
5
Control Type
Knobs
Hot Surface Indicator Light
No
Induction
No
Downdraft Venting
No
Dimensions and Weight
Depth
21 1/4"
Height
5 3/8"
Net Weight
41 lbs
Width
37"
Cutout Width
34 15/16"
Cutout Height
3 13/16"
Cutout Depth
19 1/8"
Burner Performance
Power of Back Left Burner (NG / LP)
12,000 / 9,100 BTU
Power of Back Right Burner (NG / LP)
9,100 / 6,000 BTU
Power of Center Burner (NG / LP)
16,000 / 15,000 BTU
Power of Front Left Burner (NG / LP)
9,100 / 6,000 BTU
Power of Front Right Burner (NG / LP)
12,000 / 9,100 BTU
Total BTU Load (NG / LP)
58,200 / 45,200 BTU
Specifications:
Series
Masterpiece
Cooktop
Cooktop
Burner Output
Set 1 Output
9100
Set 1 QTY
2
Set 2 Output
12000
Set 2 QTY
2
Set 3 Output
16000
Set 3 QTY
1
Burner
Simmer Burner
Yes
Burner 5 Output
12,000 BTU (front right)
Burner 4 Output
9,100 BTU (back right)
Burner 3 Output
16,000 BTU (center)
Burner 2 Output
12,000 BTU (back left)
Burner 1 Output
9,100 BTU (front left)
Power Burner
Yes
Technical Data
Volts
120V
Plug Type
3 Prong
Frequency
60 HZ
Energy Source
Gas
Amps
15A
Convertible to LP (Kit Required)
Yes
Technical Details
Star-K Certified
Yes
Voltage
120 Volts
ADA Compliant
Yes
Amps
15
Ignition Type
Electronic
LP Conversion
Yes
Modules Required
No
Appearance
Style
Sealed Burner
Surface Color
Stainless Steel
Type
Drop-In
Color
Stainless Steel
Controls Location
Top
Number of Burners
5
Glass Surface
No
Fuel Type
Gas
Fuel Subtype
Natural Gas
GTIN
UPC
825225933038
Product Information
Warranty Terms
2 years ? Thermador appliances includes a 2-year limited warranty covering the entire unit, including parts and labor. For full warranty details, please visit https://www.thermador.com/us/
Brand
Thermador
Model
SGSX365TS
Warranty
Parts and Labor
2 Years
Overview
Controls
Metal Knobs
Electronic re-ignition
Yes
Extra low simmering
Yes
Grate Material
Cast Iron
Sealed Burners
Yes
Smart
WiFi
No
Shabbos Compliance
Certification
STAR-K
Gas Cooktop Features
Continuous Grates
Yes
Grill
No
Griddle
No
Cooktop Accessory
No Accessory
French Top
No
Dimensions
Actual Depth
21 1/4 Inch
Actual Height
5 3/8 Inch
Actual Width
37 Inch
Cutout Depth
19 1/8 Inch
Cutout Width
34 15/16 Inch
General
Manufacturer
Thermador
