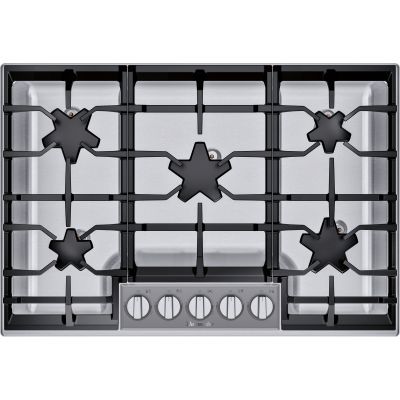

About the Thermador SGSXP305TS
- 30 Inch Masterpiece Series with Star® Burner's, 2 Extra Low Simmer
- 54,000 BTU Total - 1 x 18K, 2 x 10K, 2 x 8K BTU Burners, 2 with Extral Low Precise Simmer
- QuickClean Base®, Continuous Grates
- Electronic Re-Ignition and Star-K
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
31"
Height:
5 3/8"
Depth:
21 1/4"
Cutout Width:
28 15/16"
Cutout Depth:
19 1/8"
Volts:
120 Volts
Amps:
15
Key Features
Star® Burner's
- Patented Star® Burner provides superior flame coverage for faster and more even pan heating
QuickClean Base®
- With a teardrop emboss reduces food buildup near the base and contains liquid spills for quick cleaning
Continuous Grates
- Continuous grates allow pots and pans to move effortlessly across the cooktop
Electronic Re-Ignition
- Electronic re-ignition will automatically re-ignite the burner in case the flame goes out
Star-K
- STAR-K Sabbath compliant
Two ExtraLow®
- Select simmer burners provide precise simmering capabilities
Additional Features
- Progressive illuminated light ring around each knob indicates burners in use
- Sealed burners prevent spills from entering the burner box
- Powerful 18,000 BTU center burner
- Knobs feature a safety "push to turn" system
- Sleek control panel features glass and stainless steel
- High-grade, quality die cast metal knobs
- Seamless stainless steel burner pan makes for simpler surface cleaning
Our Expert Video Review
Manuals & Downloads
SGSXP305TS Specification Sheet
Specifications
Specifications:
Series
Masterpiece
Cooktop
Cooktop
Dimensions and Weight
Depth
21 1/4"
Height
5 3/8"
Net Weight
38 lbs
Width
31"
Cutout Width
28 15/16"
Cutout Height
3 13/16"
Cutout Depth
19 1/8"
Burner Performance
Power of Back Left Burner (NG / LP)
10,000 / 9,100 BTU
Power of Back Right Burner (NG / LP)
8,000 / 6,000 BTU
Power of Center Burner (NG / LP)
18,000 / 15,000 BTU
Power of Front Left Burner (NG / LP)
8,000 / 6,000 BTU
Power of Front Right Burner (NG / LP)
10,000 / 9,100 BTU
Total BTU Load (NG / LP)
54,000 / 45,200 BTU
Burner Output
Set 1 Output
8000
Set 1 QTY
2
Set 2 Output
10000
Set 2 QTY
2
Set 3 Output
18000
Set 3 QTY
1
Simmer Burner
Yes
Burner 4 Output
8,000 BTU (back right)
Burner 5 Output
10,000 BTU (front right)
Burner 3 Output
18,000 BTU (center)
Burner 2 Output
10,000 BTU (back left)
Burner 1 Output
8,000 BTU (front left)
Power Burner
Yes
Warranty
Parts and Labor
2 Years
Technical Details
Volts
120 V
Power Cord Length
60
Plug Type
3 Prong
Amps
15 A
Convertible to LP (Kit Required)
Yes
Frequency
60 Hz
Technical Details
Star-K Certified
Yes
Voltage
120 Volts
ADA Compliant
Yes
Amps
15
Ignition Type
Electronic
LP Conversion
Yes
Appearance
Style
Sealed Burner
Surface Color
Stainless Steel
Type
Drop-In
Color
Stainless Steel
Continuous Grates
Yes
Controls Location
Top
Number of Burners
5
Glass Surface
No
Fuel Type
Gas
Fuel Subtype
Natural Gas
GTIN
UPC
825225932819
Product Information
Warranty Terms
2 years ? Thermador appliances includes a 2-year limited warranty covering the entire unit, including parts and labor. For full warranty details, please visit https://www.thermador.com/us/
Brand
Thermador
Model
SGSXP305TS
Overview
Controls
Metal Knobs
Grate Metal
Cast Iron
Illuminated Knobs
Yes
Sealed Burners
Yes
Simmer
Yes
Smart
WiFi
No
Function
Sabbath Mode
Yes
Burners / Elements
5
Control Type
Knobs
Hot Surface Indicator Light
No
Induction
No
Downdraft Venting
No
Shabbos Compliance
Certification
STAR-K
Dimensions
Actual Depth
21 1/4 Inch
Actual Height
5 3/8 Inch
Actual Width
31 Inch
Cutout Depth
19 1/8 Inch
Cutout Width
28 15/16 Inch
Gas Cooktop Features
Griddle
No
Grill
No
Cooktop Accessory
No Accessory
French Top
No
General
Manufacturer
Thermador
