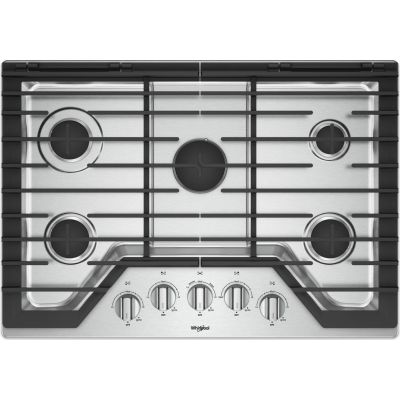

About the Whirlpool WCG97US0HS
- 30 Inch Gas Cooktop with Griddle
- EZ-2-Lift™ Hinged Grates
- Upswept SpillGuard™ Cooktop
- SpeedHeat™ Burner
- AccuSimmer® Burner
- Sealed Burners and Dishwasher-Safe Knobs
Brand:
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
30"
Height:
4 1/8"
Depth:
21"
Cutout Width:
28 7/8"
Cutout Depth:
19 1/2"
Volts:
120 Volts
Amps:
15
Key Features
Griddle
- Make pancakes, grill vegetables or sear steaks with the included griddle that lets you cook breakfast, lunch and dinner right on the cooktop.
EZ-2-Lift™ Hinged Grates
- Get quick access to spills on the cooktop with the industry-first EZ-2-Lift™ hinged cast-iron grates; the hinged design lets you wipe up underneath without removing them.
Upswept SpillGuard™ Cooktop
- Clean up faster with a cooktop that has raised edges to help contain spills.
SpeedHeat™ Burner
- Get dinner to the table fast with this burner that generates the high heat needed to sear and boil quickly.
AccuSimmer® Burner
- Easily keep an even simmer when cooking sauces and soups with the AccuSimmer® burner, which reduces power for better control at lower temperatures.
Sealed Burners
- Cut down on cleanup with burners that are sealed to prevent food from falling into them.
Dishwasher-Safe Knobs
- Make clean up easy by washing knobs right in the dishwasher.
WCG97US0HS Installation Instructions
Specifications
Dimensions & Weight
Gross Weight
59 lbs.
Height
4 1/8"
Net Weight
54 lbs.
Width
30"
Cutout Depth
19 1/2"
Cutout Depth Max
20"
Cutout Depth Min
19"
Cutout Width
28 7/8"
Cutout Width Max
29 5/16"
Depth
21"
Element/Burner Details
Left Rear Element-Burner Type
SpeedHeat™
Number of Cooking Element-Burners
5
Number of Grates
2
Power Boost
No
Right Front Element-Burner Power
10,000 BTU
Right Front Element-Burner Type
SpeedHeat™
Right Rear Element-Burner Power
5,000 BTU
Right Rear Element-Burner Type
Simmer
Left Rear Element-Burner Power
10,000 BTU
Left Front Element-Burner Type
SpeedHeat™
Automatic Pan Detection
No
Center Front Element-Burner Power
17,000 BTU
Center Front Element-Burner Type
FlexHeat
Cooktop Element Style
Sealed Burner
Cooktop Type
Standard
Grate Details
Cast Iron Grates, Continuous with Hinge, Dishwasher Safe, Matte Finish
Left Front Element-Burner Power
10,000 BTU
Overview
Control Location
Front
Control Type
Knobs
Cooktop Type
Standard
Digital Display
No
Fuel Type
Gas
Installs Over Built-In Oven
Yes
LP Convertible
Yes - Kit Included
Power Outage Compatible
Yes
Electrical Specifications
Amps
15A
Volts
120V
Technical Details
Star-K Certified
No
Voltage
120 Volts
ADA Compliant
Yes
Amps
15
Energy Star Rated
No
Appearance
Style
Sealed Burner
Surface Color
Stainless Steel
Trim Color
Stainless Steel
Type
Drop-In
Color
Stainless Steel
Continuous Grates
Yes
Fingerprint Resistant
No
Fuel Subtype
Natural Gas
Fuel Type
Gas
Glass Surface
No
Number of Burners
5
GTIN
UPC
883049467061
EAN
0883049467061
Product Information
Warranty Terms
1 year ? Whirlpool Appliances are backed by a one year warranty. For additional details, visit https://www.whirlpool.com/blog/kitchen/warranties.html
Brand
Whirlpool
Model
WCG97US0HS
Cooktop Details
Installs Over Built-In Oven
Yes
Ignition Type
Direct Spark Ignition
Cooktop Selections
AccuSimmer Plus
Cooktop Surface Color
Color Coordinated
Cooktop Surface Material
Stainless Steel
Griddle Included
Yes, Kit Included
Heating Element On Indicator Light
No
Hot Surface Indicator Light
No
Smart
WiFi
No
Function
Burners / Elements
5
Control Type
Knobs
Sabbath Mode
No
Shabbos Compliance
Certification
None
Dimensions
Cutout Depth
19 1/2 Inch
Cutout Width
28 7/8 Inch
Actual Depth
21 Inch
Actual Height
4 1/8 Inch
Actual Width
30 Inch
Burner Output
Burner 5 Output
10000
Burner 4 Output
10000
Burner 1 Output
17000
Burner 2 Output
10000
Burner 3 Output
5000
Set 2 QTY
3
Set 3 Output
5000
Set 3 QTY
1
Set 2 Output
10000
Set 1 QTY
1
French Top
No
Griddle
Yes
Grill
No
Set 1 Output
17000
Certifications
ADA Compliant
ADA Height and Side Reach Compliant
UL
Yes
General
Manufacturer
Whirlpool
