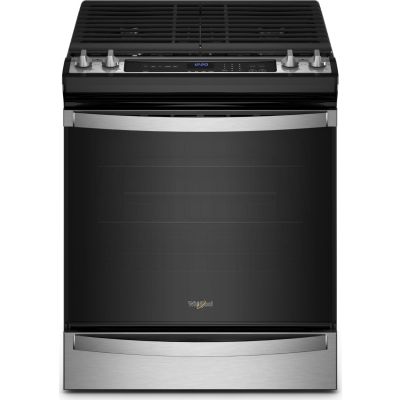

About the Whirlpool WEG745H0LZ
- 30 Inch Slide-In Gas Range with 5 Sealed Burners
- 5.8 Cu. Ft. Capacity
- Storage Drawer
- EZ-2-Lift™ Grates
- True Convection
- AquaLift® Self Clean
- Air Fry
- Frozen Bake™
- Rapid-Preheat
- SpeedHeat™ Burner
- ADA Compliant
Brand:
Style:
Slide-In
Width:
29 7/8"
Height:
39 31/32"
Depth:
28 7/8"
Capacity:
5.8 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Fuel Type:
Gas
Cook however you want with a gas 7-in-1 Air Fry Oven. You can air fry your favorite foods like chicken wings, nuggets, and fries right in your oven with the included air fryer basket that's dishwasher safe. Features like True Convection Cooking and cast iron stove grates give you the flexibility to cook a variety of dishes.
About Whirlpool
At Whirlpool, advanced performance means getting great results while using less water and energy. Their ENERGY STAR qualified appliances to deliver eco-efficient operation that exceeds the toughest government standards. Whirlpool is dedicated to making guesswork a thing of the past. Every detail is attended to. Every machine is designed to help you manage your home precisely the way you want-easier, faster and smarter.
Key Features
5 Sealed Burners
- Cut down on cleanup with burners that are sealed to prevent food from falling into them.
5.8 Cu. Ft. Capacity
- Easily cook a whole meal with 5.8 Cu. Ft. Capacity.
7-in-1 Oven
- Cook however you want with 7 cooking modes in 1 oven: Air Fry, Convect Bake, Convect Broil, Frozen Bake, Bake, Broil and Keep Warm cycles.
- This range gives you the flexibility to cook a variety of dishes by combining multiple cooking modes in one oven.
Storage Drawer
- A Storage Drawer at the bottom of your range allows easy access to the items you use most and opens up space elsewhere.
EZ-2-Lift™ Hinged Cast-Iron Grates
- Get quick access to spills on the cooktop with Whirlpool's industry-first EZ-2-Lift™ Hinged Cast-Iron Grates.
- The hinged design lets you wipe up underneath without removing them.
True Convection Cooking
- Quickly bake multiple items at once with True Convection Cooking.
- The oven fan circulates hot air from three heating elements around the oven so you can cook foods fast and don't have to move dishes around as you cook.
AquaLift® Self Clean
- A first of its kind cleaning solution that is activated with heat and water to release tough baked-on soils from the oven interior in less than 1 hour.
Air Fry Mode
- Air fry chicken nuggets, wings, fries, and more of your favorite foods to get crispy results right in your oven.
- The Air Fry Mode circulates hot air around the air fry basket to cook fried food healthily, with less oil than traditional frying.
Frozen Bake™ Technology
- Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings.
Rapid Preheat
- Save time with this fast preheating mode; A rear fan combined with the use of all of the elements helps to heat the oven quickly.
Control Lock Mode
- Disable the control panel to avoid unintended use and easily clean the controls.
Broil Setting
- When you place food close to the oven's top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole, and more.
Keep Warm Setting
- Keep dishes from getting cold with this setting that delivers low heat to the oven.
Hidden Bake Element
- A hidden bake element under the floor of the oven creates a smooth surface inside the oven that's easier to clean.
Dishwasher-Safe Air Fry Basket
- For easy cleaning, put the Dishwasher-Safe Air Fry Basket right in the dishwasher when it gets messy.
Fingerprint Resistant
- Available in a stainless finish that's easy to clean and resists fingerprints and smudges.
Center Oval Burner
- Easily fit large griddles and other longer cookware on this fifth burner.
SpeedHeat™ Burner
- Get dinner to the table fast with this burner that generates the high heat needed to sear and boil quickly.
WEG745H0LZ Air Fry Quick Reference Guide
Key Features

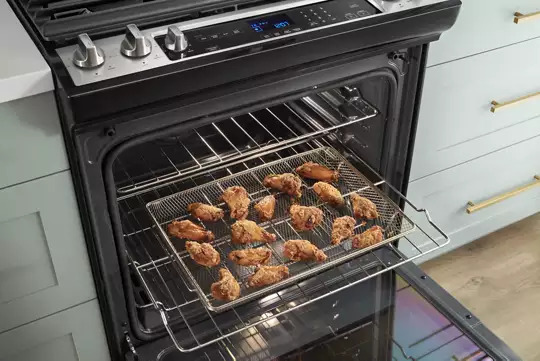

Air Fry Mode
Skip preheating and air fry chicken nuggets, wings, fries and more to get crispy results right in your oven. The Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.
Dishwasher-Safe Air Fry Basket
For easy cleaning, put the Dishwasher-Safe Air Fry Basket right in the dishwasher when it gets messy.
Specifications
Dimensions and Weight
Height
39 31/32"
Width
29 7/8"
Gross Weight
213 lb.
Depth
28 7/8"
Depth Closed Excluding Handles
27 7/8"
Depth With Door Open 90 Degree
48 1/2"
Overview
Size
30"
Total Gas BTUs - Cooktop
54,200
Total Gas BTUs - Oven
31,000
Range Type
Slide-in
Power-On Indicator Light
Yes
Capacity
5.8 cu. ft.
Door Removable
Yes
Electronic Display Type
LED
Fuel Type
Gas
Heating Element On Indicator Light
Yes
Hot Surface Indicator Light
Yes
Oven Window Size
Extra Large
Power Cord Included
Yes
Power Outage Compatible
Yes
Oven Details
Bake Element Power
18,000 BTU
Broiler Location
Top of Oven
Convection Element Power
925
Convection Element Type
True-Bow Tie
Convection Functions
Bake, Broil
Number Of Oven Lights
1
Number Of Oven Racks
3
Number Of Rack Guides
7
Oven Cleaning Type
AquaLift® Self Clean
Oven Control Location
Front
Oven Control Type
Electronic Touch
Oven Cooking System
True Convection
Oven Light Type
Incandescent
Oven Rack Type
2 Standard and 1 Max Capacity
Cooktop Details
Right Front Element-Burner Type
Standard
Number Of Cooking Element-Burners
5
Left Front Element-Burner Type
Standard
Center Front Element-Burner Type
Warming
Cooktop Control Knob Type
Dishwasher Safe Weighted
Cooktop Control Type
Knobs
Cooktop Element Style
Sealed Burners
Cooktop Surface Material
Porcelain Coated Steel
Ignition Type
Direct Spark Ignition
Appearance
Stainless Steel Handle
Yes
Style
Slide-In
Viewing Window
Yes
Cooktop
Sealed Burner
Cooktop Control Type
Knobs
Double Oven
No
Drawer
Storage
Color
Stainless Steel
Clock
Yes
Fingerprint Resistant
Yes
Fuel Subtype
Natural Gas
Fuel Type
Gas
Oven Control Type
Touchpad
Technical Details
Star-K Certified
No
ADA Compliant
Yes
LP Conversion
Yes - Kit Included
Oven Features
Temperature Probe
No
Timer
Yes
Convection
Yes
Digital Temperature Display
Yes
Fast Preheat
Yes
Air Fry
Yes
Broiler Element Location
Top
Broiler Pan Included
No
Removable Door
Yes
Self-Cleaning
Yes
Racks
3
Proof Mode
No
Interior Oven Light
Yes
GTIN
UPC
883049626468
Product Information
Warranty Terms
1 year ? Whirlpool Appliances are backed by a one year warranty. For additional details, visit https://www.whirlpool.com/blog/kitchen/warranties.html
Brand
Whirlpool
Model
WEG745H0LZ
Dimensions
Width
29 7/8 Inch
Depth
28 7/8 Inch
Exterior Width
30 Inch
Height
39 31/32 Inch
Interior Depth
20 5/8 Inch
Interior Height
22 1/8 Inch
Interior Width
24 3/8 Inch
Smart
WiFi
No
Bluetooth
No
Remote Control
No
Gas Cooktop Features
Dishwasher Safe Grates
Yes
Continuous Grates
Yes
Shabbos Compliance
Certification
None
Sabbath Mode
Yes
Certifications
ADA Compliant
Yes
CUL
Yes
Kosher Consumer Friendly
Yes
UL
Yes
Capacity
Number of Burners
5
Primary Oven Capacity
5.8 Cu. Ft.
General
Manufacturer
Whirlpool
