discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
About the Whirlpool WFE505W0HZ
- 30 Inch Freestanding Electric Range with Frozen Bake™ Technology
- FlexHeat™
- Upswept SpillGuard™ Cooktop
- Control Lock
- SteamClean
- Warm Zone Element
- Star-K Certified Sabbath Mode and 5.3 cu. ft. Oven Capacity: Fingerprint Resistant Stainless Steel
Brand:
Style:
Freestanding
Width:
29 7/8"
Height:
47 7/8"
Depth:
27 3/4"
Capacity:
5.3 Cu. Ft.
Burners:
5
Convection:
No
Self Clean:
No
Griddle:
No
Grill:
No
Fuel Type:
Electric
Volts:
250 Volts
Amps:
40
Key Features
Frozen Bake™ Technology
- Skip preheating and cook frozen favorites faster with preprogrammed settings that automatically adjust cooking times for you.

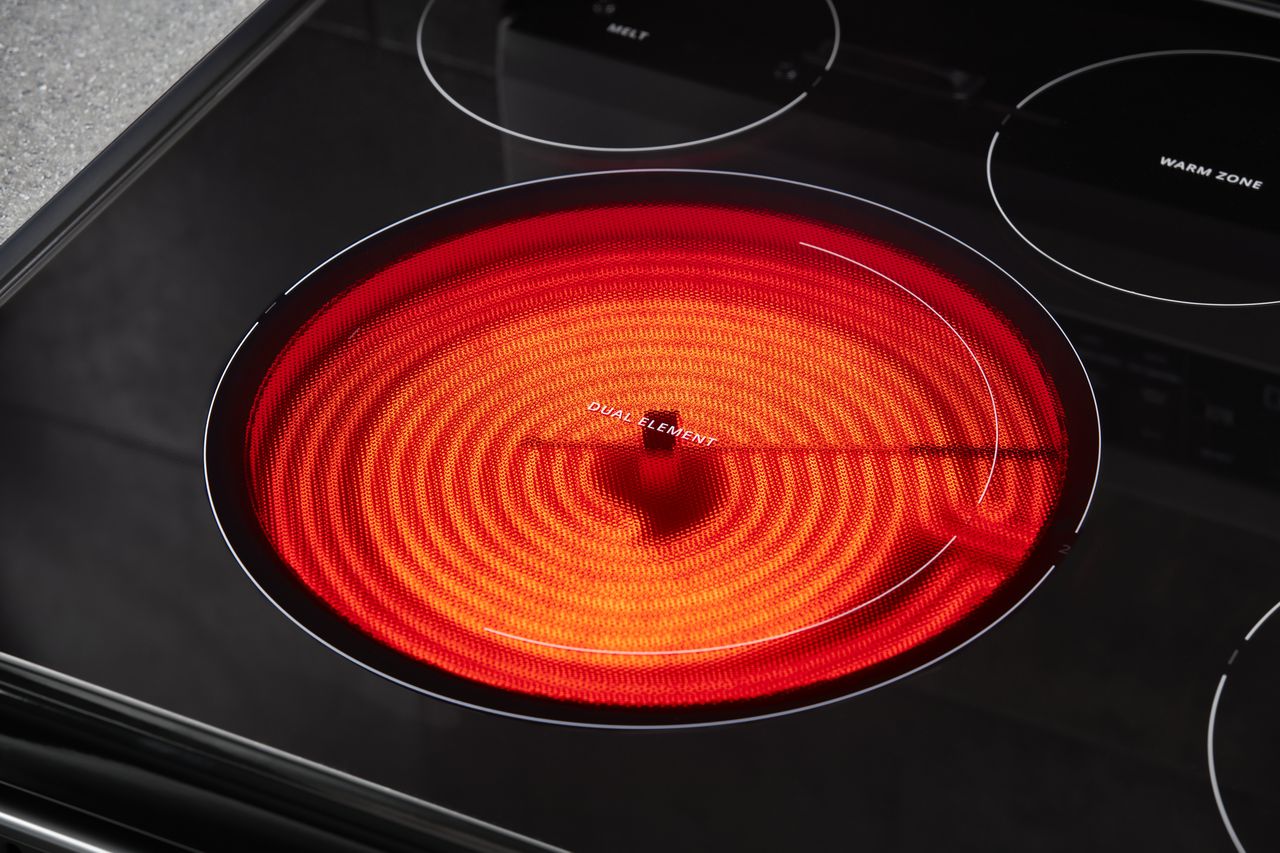

FlexHeat™ Dual Radiant Element
- A 6" inner ring that's great for smaller pots and pans and a 9" expandable outer ring that makes room for larger cookware.

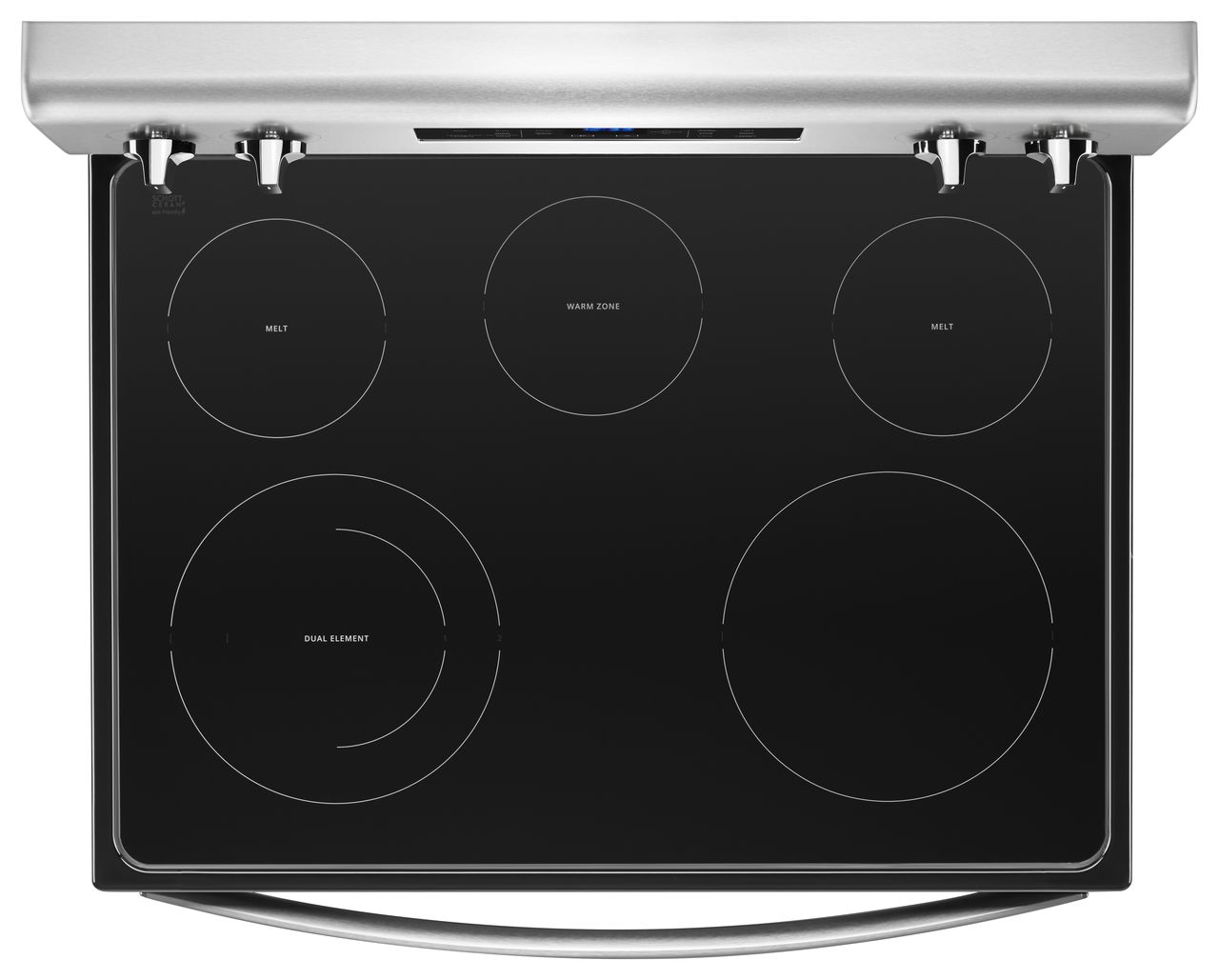

Upswept SpillGuard™ Cooktop
- Clean up faster with a cooktop that has raised edges to help contain spills.

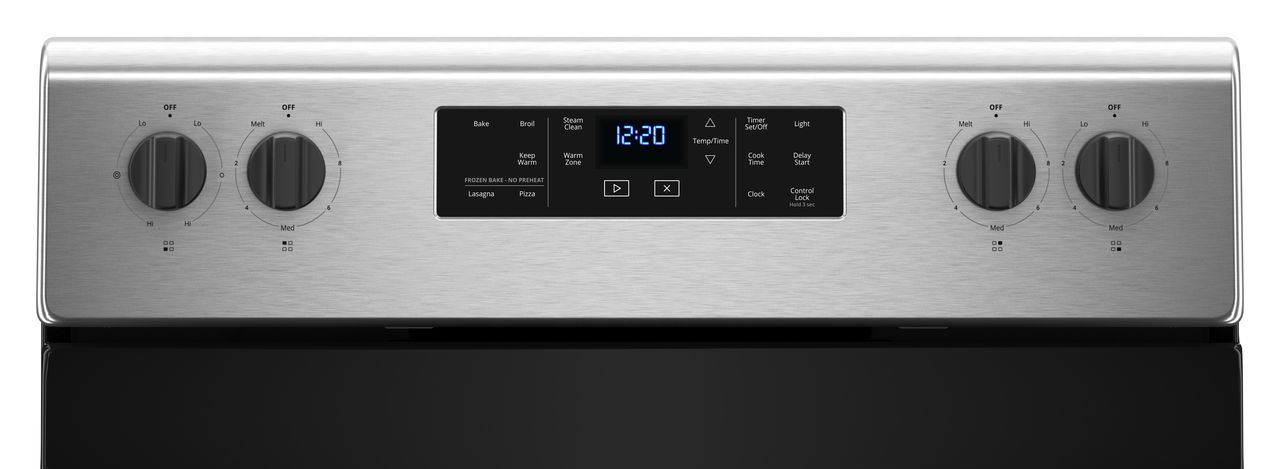

Control Lock
- Disable the control panel to avoid unintended use.
SteamClean
- Wipe up light messes quickly with this option that saturates baked on messes on the bottom of the oven with water and high heat for easy cleaning.
Warm Zone Element
- Keep food warm while you're finishing the rest of the meal using this low-powered center element.
Certifications
- Star-K Certified Sabbath Mode
Oven Capacity
- 5.3 cu. ft.
Manuals & Downloads
WFE505W0HZ 1
WFE505W0HZ 2
WFE505W0HZ 3
WFE505W0HZ 4
WFE505W0HZ 5
WFE505W0HZ 6
WFE505W0HZ 7
Key Features
Frozen Bake Technology
Skip preheating and cook frozen favorites like pizza and lasagna faster with preprogrammed settings that automatically adjust cooking times for you.
Specifications
Technical Details
ADA Compliant
No
Amps
40
Oven Wattage
3,400
Star-K Certified
Yes
Voltage
250 Volts
Product Information
Brand
Whirlpool
Model
WFE505W0HZ
Oven Features
Broiler Element Location
Top
Broiler Pan Included
No
Convection
No
Delay Bake
No
Digital Temperature Display
Yes
Double Oven
No
Interior Oven Light
Yes
Oven Control Type
Touchpad
Primary Oven Capacity
5.3 Cu. Ft.
Proof Mode
No
Proofing
No
Racks
2
Removable Door
Yes
Sabbath Mode
Yes
Self-Cleaning
No
Temperature Probe
No
Timer
Yes
WiFi Connected
No
Burner Output
Burner 1 Output
100
Burner 2 Output
3000
Burner 3 Output
1200
Burner 4 Output
2500
Burner 5 Output
1200
Set 1 Output
100
Set 1 QTY
1
Set 2 Output
3000
Set 2 QTY
1
Set 3 Output
1200
Set 3 QTY
2
Set 4 Output
2500
Set 4 QTY
1
Cooktop Features
Burners / Elements
5
Cooktop Control Type
Digital and Knobs
Downdraft Ventilation
No
French Top
No
Griddle
No
Grill
No
Hot Surface Indicator Light
Yes
Induction
No
Modules Required
No
Shabbos Compliance
Certification
STAR-K
Appearance
Clock
Yes
Color
Stainless Steel
Cooktop
Smoothtop
Drawer
Storage
Fuel Type
Electric
Style
Freestanding
Viewing Window
Yes
Dimensions
Depth
27 3/4 Inch
Exterior Width
30 Inch
Height
47 7/8 Inch
Width
29 7/8 Inch
GTIN
EAN
0883049454061
UPC
883049454061
Capacity
Number of Burners
5
Certifications
Sabbath Mode
Yes
Star-K Compliant
Yes
Dimensions & Weights
Depth
27 3/4"
Gross Weight
153 Lbs.
Height
47 7/8"
Width
29 7/8"
Overview
Closed Door Broiling
Yes
Control Lock Mode
Yes
Dishwasher-Safe Knobs
Yes
Easy-Wipe Cooktop
Yes
FlexHeat™ Dual Radiant Element
Yes
Frozen Bake™ Technology
Yes
Keep Warm Setting
Yes
Large Oven Window
Yes
Oven Capacity
5.3 cu. ft.
SteamClean
Yes
Temperature Sensor
Yes
Upswept SpillGuard™ Cooktop
Yes
Warm Zone Element
Yes
Cooktop Features
Center Rear Element-Burner Power
100W
Center Rear Element-Burner Size
6"
Center Rear Element-Burner Type
Warming
Cooktop Element Style
Radiant
Cooktop Surface Color
Black
Cooktop Surface Material
Ceramic Glass
Left Front Element-Burner Power
3000W
Left Front Element-Burner Size
9"/6"
Left Front Element-Burner Type
Dual
Left Rear Element-Burner Power
1200W
Left Rear Element-Burner Size
6"
Left Rear Element-Burner Type
Radiant
Number of Cooking Element-Burners
5
Right Front Element-Burner Power
2500W
Right Front Element-Burner Size
9"
Right Front Element-Burner Type
Radiant
Right Rear Element-Burner Power
1200W
Right Rear Element-Burner Size
6"
Right Rear Element-Burner Type
Radiant
Controls
Drawer Type
Storage Drawer
Handle Material
Metal
Handle Type
Reach Through Handle
Selections
Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook and Hold; Cook Time Indicator; Delay Start; Frozen Bake; Keep Warm Setting; Language Conversion; Sabbath Mode; Start Time; Stop Time; Timer
Oven Features
Bake Element Power
2400W
Broiler Element Power
3400W
Broiler Location
Top of Oven
Convection Functions
No
Hidden Bake Element
No
Hot Surface Indicator Light
Yes
Light Type
Incandescent
Number of Oven Lights
1
Number of Oven Racks
2
Number of Rack Guides
5
Oven Rack Type
Standard
Power On Indicator Light
Yes
Electrical Specifications
Amps
40A
Volts
250V
Smart
WiFi
No
General
Manufacturer
Whirlpool
