discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Accessories
8 Item(s)

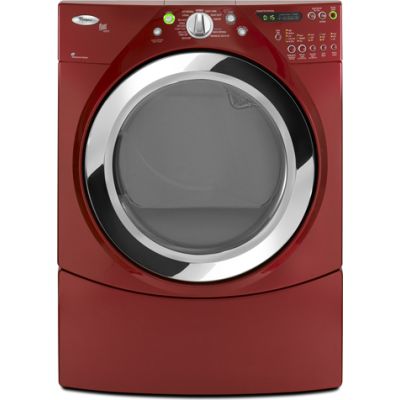

About the Whirlpool WGD9470WR
- 7.2 cu. ft. Capacity
- 12 Drying Cycles
- 5 Temperature Settings
- Steam Refresh
- AccelerCare Sensor
- LED Display
Brand:
Width:
27"
Depth:
32 9/16"
Height:
38"
Cycles:
12
Stackable:
Yes
Steam Cycle:
Yes
Reversible Door:
Yes
Sensor Dry:
Yes
Venting Type:
Vented
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Enhance every home you build with stylish, innovative appliances that home buyers demand. Home buyers expect appliances that meet the needs of their everyday lives, are easy to use and reflect the style of their individual tastes. But, to provide appliances you will truly appriciate and will use for years to come, requires a higher level of commitment. Their commitment to quality, craftsmanship and style challenges them to design products that lead the industry in innovation and design. Available at Designer Appliances.
Dry in a load in just 15 minutes, industry's fastest! Uses up to 40% less energy with Eco Normal cycle when paired with a Duet washer. A more precise set of heat and moisture detection sensor allows clothes to dry more efficiently. Quick Refresh steam cycle helps to break down odors and relax wrinkles. Directly connects to your washer inlet hose, so you will never have to fill a reservoir or manually add water before starting a steam cycle.
Key Features
7.2 Cu. Ft. Capacity
AccelerCare Drying System
- Dry Time = Wash Time.
- Senses how fast the load is drying, how hot the air should be and when clothes are dry.
- Automatically stops the cycle to save time and energy and also to prevent fabric damage and shrinking.
Eco Normal Cycle
- Uses up to 40% less energy when paired with a Duet washer compared to conventional top load pair.
Quick Refresh Steam Cycle
- Tumbles 2-5 items in the dryer, letting steam technology relax wrinkles and remove odors.
- In just 15 minutes, clothes go from lying there to ready-to-wear.
Enhanced Touch-Up Steam Cycle
- Uses steam to relax wrinkles from a full load of clean, dry fabrics in 20-40 minutes.
Wrinkle Shield Plus Option (Up To 140 Minutes)
- Tumbles the dryer every 5 minutes after the cycle is complete to help prevent wrinkles from setting into clean, dry fabrics.
- The intermittent tumbling continues for the designated time or until the door is opened.
Quiet Dry Plus Noise Reduction System
- Sound-absorbing materials are strategically placed around the dryer drum to help reduce operational noise.
Direct Water Installation Method
- A "Y" connector delivers water from washer's existing water line directly to the dryer for easier installation and hassle-free steaming.
12 Automatic Cycles
5 Temperature Settings
Heavy Duty Cycle
Bulky Items Cycle
- Ideal for drying bulky items like comforters, sleeping bags, down jackets or pillows, all of which fit easily into the dryer drum.
Casual Cycle
Normal Cycle
Delicate Cycle
Quick Dry Cycle
Timed Drying
LED Display
- Provides easy selection for all options, displays time remaining and status for the cycle.
NSF Certified Sanitize Cycle
- Eliminates up to 99.9% of common household bacteria.
Reversible Door
Extra-Large Front-Mounted Lint Screen
Estimated Time Remaining Display
Adjustable End-of-Cycle Signal
Interior Drum Light
- Illuminates the interior of the dryer to make loading and unloading easier.
Optional Stack Kit 8541503 Sold Separately
- Stack Kit provides a galvanized bracket to stack your new Duet washer and dryer vertically, dryer over washer.
Optional 10" or 15" Pedestals Sold Separately
- Pedestals provide an ideal ergonomic solution to ease loading and unloading.
Optional Laundry Worksurface Sold Separately
- Available at Designer Appliances.
- www.designerappliances.com
Specifications
Dimensions
Width
27 Inch
Capacity
7.2 Cu. Ft.
Height
38 Inch
Depth
32 9/16 Inch
Configuration and Overview
Fuel Type
Gas
Capacity
7.20 Cu. Ft.
ADA Compliant
ADA Height and Side and Front Reach Compliant
Dimensions
Width
27
Height
38
Depth
32 9/16
Style and Extras
Feedback-Status Indicators
End of Cycle Signal
Drum Light
Yes
General
Series
Duet Steam
Manufacturer
Whirlpool
Cycle and Options
Lint Filter Indicator
Yes
Number of Cycles
12
Product Information
Warranty Terms
1 year ? Whirlpool Appliances are backed by a one year warranty. For additional details, visit https://www.whirlpool.com/blog/kitchen/warranties.html
UPC
883049186801
Brand
Whirlpool
Model
WGD9470WR
Technical Details
Voltage
120 Volts
CEE Rating
Not Available
Amps
15
ADA Compliant
No
Energy Star Rated
No
Features
Venting Type
Vented
Usage
Residential
Temperature Settings
5
Steam Cycle
Yes
Sensor Dry
Yes
Reversible Door
Yes
Control Type
Digital and Knobs
Cycles
12
Leveling Legs
Yes
Extra Large Lint Filter
Yes
Dry Rack
No
Appearance
Type
Front Load
Stackable
Yes
Color
Red
Location of Controls
Front
Fuel Type
Gas
GTIN
