discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Frequently Bought Together
3 Item(s)
Accessories
10 Item(s)
About the Wolf CTWH36
- Optional Internal/External Blowers
- 3-Speed Control
- Automatic Delay-Off
- Heat Sentry
- Filter Clean Timer
Brand:
CFM:
1,500 CFM
Speeds:
3
Venting Type:
Ducted
Style:
Chimney Style
Width:
35 7/16"
Height:
32 11/16"
Depth:
21"
When Sub-Zero Freezer Company acquired Wolf in March 2000, kitchen design insiders uttered a collective "Aha!" It just made sense, this marriage of ice and fire, cold and hot. Sub-Zero and Wolf are complementary expressions of a single idea: the steadfast refusal to compromise. They are the brands for people who will have nothing less than the kitchen they have always wanted - an uncompromised kitchen.
Heritage Meets Heritage
Sub-Zero is the enduring symbol of the possibilities of what a kitchen can be, Wolf the symbol of all that the kitchen can do. Founded in 1945 and now in its third generation of family ownership and management, Sub-Zero forever changed kitchen design with the exceptional quality, beauty and innovative technology of its equipment.
For more than 70 years, Wolf has been synonymous with professional cooking equipment for restaurants and hotels. Now, as part of Sub-Zero, the Wolf line has been adapted for the serious in-home cook. With their superior performance and leading-edge design, Wolf instruments fuel a passion for cooking. Available at Designer Appliances.
Compromise? Never.
Every product bearing the Wolf name was designed from the ground up to give the user ultimate control and cooking confidence. Each new Wolf instrument is tested not merely to meet but to exceed industry standards, and each is backed by one of the best warranties in the business. In design, manufacturing and customer service, Wolf accepts no compromise, and neither should you.

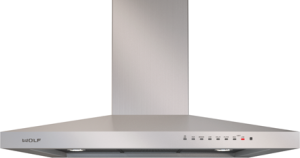

Powerful multi-speed blowers draw odors and smoke into the five-layer mesh filter. Filters remove easily for cleaning. The sculpted classic stainless steel hood not only provides the power you expect from Wolf, but also the beauty you have come to appreciate as well. This wall mount cooktop ventilation hood has a telescopic chimney flue that adjusts to reach the ceiling with a finished look.
Key Features
Blowers not included. Blowers must be purchased separately. See "Accessories" tab for blower options.
Design Features
- Heavy-duty stainless steel seamless construction with classic finish.
- Front mounted controls with LED indicator.
- Three-speed blower control.
- Filter clean timer lets you know when the filter needs cleaning.
- Delay-off mode automatically turns unit off.
- Sealed halogen lighting with three settings.
- Stainless steel filter cover with dishwasher safe aluminum mesh filter.
- Heat sentry feature automatically turns unit on when heat is sensed and automatically adjusts blower speed.
- Available at Designer Appliances.
- www.designerappliances.com
Optional Accessories
- Classic stainless steel wall shield.
- Flue extension to accommodate 10 ft. ceilings.
- 8" to 10" round transition.
Manuals & Downloads
CTWH36 2D CAD Drawing
CTWH36 2D CAD Drawing
CTWH36 Wolf Design Guide
CTWH36 Remote Blower Install
CTWH36 Internal Blower Install
CTWH36 In-Line Blower Install
CTWH36 Cooktop Wall Hood Use & Care Guide
CTWH36 Cooktop Wall Hood Installation Guide
CTWH36 3D CAD Drawing
CTWH36 36" Cooktop Wall Hood Quick Reference Guide
CTWH36 30" Cooktop Wall Hood Quick Reference Guide
CTWH36 3D CAD Drawing
Specifications
Dimensions
Width
35 7/16 Inch
Depth
21 Inch
Height
32 11/16 Inch
Features
Dishwasher Safe Aluminum Mesh Filter
Yes
Delay-Off Mode
Automatic
Controls
Front Mounted with LED Indicator
Blower Control
3-Speed
Filter Clean Timer
Yes
Heat Sentry Feature
Yes
Stainless Steel Filter Cover
Yes
Sealed Halogen Lighting
Yes with 3 Settings
Heavy-Duty Stainless Steel Seamless Construction
Yes with Classic Finish
Specifications
Transition
8" to 10" Round
Shipping Weight
100 Lbs.
Electrical Requirements
110/120 V AC, 60 Hz, 15 Amp Dedicated Circuit
Duct Size
8" Round
Discharge
Vertical
Product Information
Warranty Terms
2 years ?Wolf appliances are backed by a comprehensive two-year warranty from the date of original installation. For full warranty details visit https://www.subzero-wolf.com/warranty
Brand
Wolf
MPN
CTWH36
Model
CTWH36
Technical Details
Voltage
120 Volts
Amps
15
Energy Star Rated
No
Appearance
Venting Type
Ducted
Type
Hood
Style
Chimney Style
Color
Stainless Steel
Blower Type
Both
Mounting Type
Wall Mount
Features
Speeds
3
Approved for Outdoor Use
No
Dishwasher Safe Filters
Yes
Number of Fan Speeds
3
Lighting Levels
3
Halogen Lighting
Yes
Dimensions
Overall Width
35 7/16"
Overall Height (Includes Chimney)
32 11/16" to 50 7/8"
Overall Height (Excludes Chimney)
9 1/4"
Overall Depth
21"
Capacity
CFM
1,500 CFM
General
Manufacturer
Wolf
