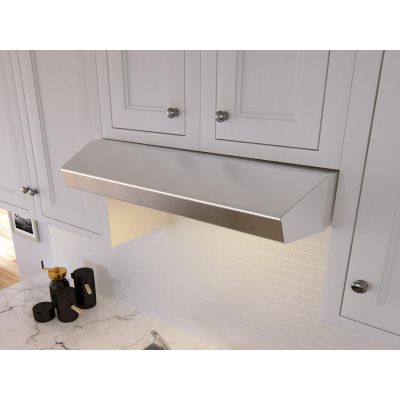

About the Zephyr AK1100BS
- 30 Inch Under Cabinet Range Hood with 3-Speed/250 CFM Blower
- Mechanical Slide Controls
- LED Light Strip
- Extra-wide Mesh Filters
- Vertical or Horizontal Ducting
- UL Listed: Stainless Steel
Brand:
CFM:
250 CFM
Venting Type:
Convertible
Style:
Standard Hood
Width:
29 15/16"
Height:
5 1/2"
Depth:
20 3/32"
Its sophisticated features and performance set the industry value standard. Its three-speed, 250-CFM blowers quietly clear the air while convenient dishwasher-safe aluminum filters efficiently remove airborne residues. Sleek, integrated controls simplify cleanup, and the dual-level LED Light Strip lets you set a low-key mood when the time is right.
About Zephyr
Since the launch of their first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
3-Speed
- Allow you to adjust ventilation to meet your needs.
250 CFM Blower
- Remove smoke and odor with ease with a powerful internal blower.
Mechanical Slide Controls
- Offer simple operation.
LED Light Strip
- Dual levels of light offer the perfect mood option for your kitchen.
Extra-wide Mesh Filters
- To filter out residue and grease from cooking.
- Remove and clean by hand or in the dishwasher using a non-phosphate detergent.
Vertical or Horizontal Ducting
- It gives the performance and flexibility you need.
Low-Profile Body
- Delivers stunning design and quality performance.
- Additional Features
- Multiple Color Options
- Optional Ductless Recirculating Kit
- Value Driven
- UL Listed
AK1100BS Specification Sheet
Specifications
Smart
WiFi
No
Remote Control
No
Bluetooth
No
Dash Replenishment
No
Overview
Controls
Mechanical Slide
Color
Stainless Steel
Blower CFM (Min. - Max.)
100 - 250
Auto Delay-Off
No
Dual-Level Lighting
Yes
Filters
Aluminum Mesh x2
Lighting
LED Light Strip, 6W x2
Speed Levels
3
Sones (Min. - Max.)
1.8 - 3.5
Size
30"
Recirculating Option
Yes
Warranty
Parts
3 Years
Labor
1 Year
Dimensions
Width
29 15/16"
Height
5 1/2"
Depth
20 3/32"
Optional Accessories
Recirculating Kit
0AK11-21001
Duct Specifications
Vertical Internal Blower
3 1/4" x 10"
Horizontal Internal Blower
3 1/4" x 10"
Capacity
Sones
3.5
Permanent Air Flow Reduction
Yes
CFM
250 CFM
Noise Level
3.5 Sones
Dimensions
Width
29 15/16 Inch
Height
5 1/2 Inch
Depth
20 3/32 Inch
Technical Details
Voltage
120 Volts
CEE Rating
Not Available
Approved for Outdoor Use
No
ADA Compliant
No
Energy Star Rated
No
Appearance
Venting Type
Convertible
Type
Hood
Style
Standard Hood
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Under Cabinet
Glass Canopy
No
Fingerprint Resistant
No
GTIN
UPC
646328008535
Mounting Height Range
Gas Cooking Surface
24" - 32"
Electric Cooking Surface
20" - 32"
Electrical Specifications
AC Power
120V, 60Hz at Max. 2A
Specifications:
Series
Core Collection Breeze I
Product Information
Brand
Zephyr
Model
AK1100BS
Features
Delay Shut-Off
No
Number of Fan Speeds
3
Lights
LED
Lighting Levels
2
Filter Type
Mesh
Dishwasher Safe Filters
Yes
General
Manufacturer
Zephyr
