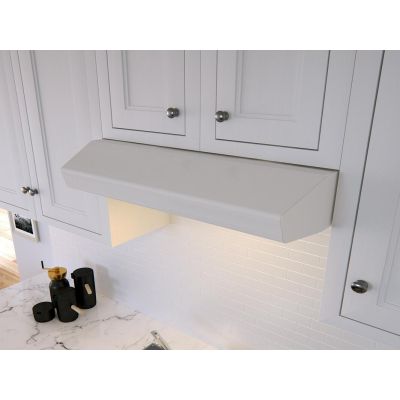

About the Zephyr AK1124BW
- 24 Inch Under Cabinet Range Hood with 3-Speed/250 CFM Blower
- Mechanical Slide Controls
- Halogen Lighting
- Aluminum Mesh Filters
- Low-Profile Body
- Multiple Color Options
- UL Listed: White
Brand:
CFM:
250 CFM
Venting Type:
Convertible
Style:
Standard Hood
Width:
24"
Height:
5 1/2"
Depth:
20 3/32"
Its sophisticated features and performance set the industry value standard. Its three-speed, 250-CFM blowers quietly clear the air while convenient dishwasher-safe aluminum filters efficiently remove airborne residues. Updated with dual-level LumiLight LED lighting, the Breeze II's modern, clean lines provide a perfect complement to any interior.
About Zephyr
Since the launch of their first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected-by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency-and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
3-Speed
- Allow you to adjust ventilation to meet your needs.
250 CFM Blower
- Remove smoke and odor with ease with a powerful internal blower.
Mechanical Slide Controls
- Offer simple operation.
LED Lighting
- High and Low levels of light offer the perfect mood option for your kitchen.
Aluminum Mesh Filters
- To filter out residue and grease from cooking.
- Remove and clean by hand or in the dishwasher using a non-phosphate detergent.
Low-Profile Body
- Delivers stunning design and quality performance.
Vertical or Horizontal Ducting
- It gives the performance and flexibility you need.
- Additional Features
- Multiple Color Options
- Value Driven
- Sones (Min. - Max.): 1.8 - 3.5
- UL Listed
AK1124BW Specification Sheet
Specifications
GTIN
EAN
0646328008511
UPC
646328008511
Features
Lighting Levels
2
Dishwasher Safe Filters
Yes
Filter Type
Mesh
Number of Fan Speeds
3
Lights
LED
Delay Shut-Off
No
Capacity
Duct Size
10 Inch
CFM
250 CFM
Smart
Bluetooth
No
WiFi
No
Dimensions
Height
5 1/2 Inch
Depth
20 3/32 Inch
Width
24 Inch
Actual Width
23 15/16 Inch
Appearance
Blower Type
Internal
Blower Included
Yes
Venting Type
Convertible
Mounting Type
Under Cabinet
Glass Canopy
No
Color
White
Type
Hood
Style
Standard Hood
Specifications:
Series
Core Collection Breeze I
Technical Details
Approved for Outdoor Use
No
Voltage
115 Volts
Amps
15
Energy Star Rated
No
ADA Compliant
No
Electrical Specifications
Frequency
60 Hz
Amps
1.3 A
Volts
120 V
Dimensions
Width
24"
Depth
20 3/32"
Height
5 1/2"
Warranty
Parts
3 Years
Labor
1 Year
Overview
Lighting
LumiLight LED, 6W x2
Auto Delay-Off
No
Controls
Mechanical Slide
Sones (Min. - Max.)
1.8 - 3.5
Speed Levels
3
Filters
Aluminum Mesh x2
Dual-Level Lighting
Yes
Mounting Height Range
24" - 32"
Blower CFM (Min. - Max.)
150 - 250
Size
24"
Recirculating Option
Yes
Product Information
Model
AK1124BW
Brand
Zephyr
Optional Accessories
Recirculating Kit
0AK11-21001
Duct Specifications
Horizontal Internal Blower
3-1/4" x 10"
Vertical Internal Blower
3-1/4" x 10"
General
Manufacturer
Zephyr
