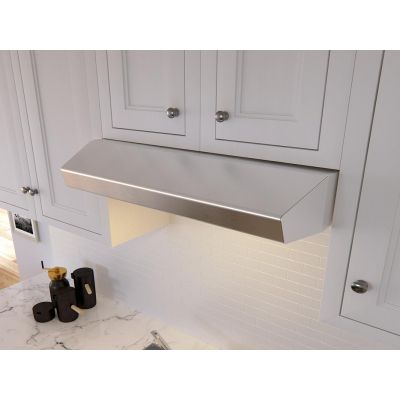

About the Zephyr AK1136BS
- 36 Inch Under Cabinet Range Hood with 3-Speed/250 CFM Blower
- Mechanical Slide Controls
- Halogen Lighting
- Aluminum Mesh Filters
- Low-Profile Body
- Multiple Color Options
- Value Driven
- UL Listed: Stainless Steel
Brand:
CFM:
250 CFM
Venting Type:
Ducted
Style:
Standard Hood
Width:
35 15/16"
Height:
5 1/2"
Depth:
20 3/32"
Its sophisticated features and performance set the industry value standard. Its three-speed, 250-CFM blowers quietly clear the air while convenient dishwasher-safe aluminum filters efficiently remove airborne residues. Sleek, integrated controls simplify cleanup, and the dual-level LED light bulbs let you set a low-key mood when the time is right. Now available with Bloom™ GU10 LED upgrade option.
About Zephyr
Since the launch of their first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected-by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency-and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
3-Speed
- Allow you to adjust ventilation to meet your needs.
250 CFM Blower
- Remove smoke and odor with ease with a powerful internal blower.
Mechanical Slide Controls
- Offer simple operation.
LumiLight LED Lighting
- High and Low levels of light offer the perfect mood option for your kitchen.
Aluminum Mesh Filters
- To filter out residue and grease from cooking.
- Remove and clean by hand or in the dishwasher using a non-phosphate detergent.
Low-Profile Body
- Delivers stunning design and quality performance.
Vertical or Horizontal Ducting
- It gives the performance and flexibility you need.
- Additional Features
- Multiple Color Options
- Value Driven
- Sones (Min. - Max.): 1.8 - 3.5
- UL Listed
AK1136BS Specification Sheet
Specifications
Smart
WiFi
No
Overview
Lighting
LumiLight, 6W x2
Filters
Aluminum Mesh x2
Dual-Level Lighting
Yes
Controls
Mechanical Slide
Blower CFM (Min. - Max.)
150 - 250
Auto Delay-Off
No
Mounting Height Range
24" - 32"
Recirculating Option
Yes
Size
36"
Speed Levels
3
Sones (Min. - Max.)
1.8 - 3.5
Warranty
Parts
3 Years
Labor
1 Year
Dimensions
Width
35 15/16"
Height
5 1/2"
Depth
20 3/32"
Dimensions
Width
35 15/16 Inch
Depth
20 3/32 Inch
Height
5 1/2 Inch
Technical Details
Voltage
115 Volts
Approved for Outdoor Use
No
Amps
15
Appearance
Venting Type
Ducted
Type
Hood
Style
Standard Hood
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Under Cabinet
Glass Canopy
No
GTIN
UPC
646328008573
Electrical Specifications
Volts
120 V
Frequency
60 Hz
Amps
2 A
Optional Accessories
Recirculating Kit
0AK11-21001
Bloom™ GU10 LED
Z0B0040
Specifications:
Capacity
CFM
250 CFM
Sones
3.5
Noise Level
3.5 Sones
Product Information
Brand
Zephyr
Model
AK1136BS
Features
Dishwasher Safe Filters
Yes
Number of Fan Speeds
3
Lights
LED
Filter Type
Mesh
Duct Specifications
Vertical Internal Blower
3-1/4" x 10"
Horizontal Internal Blower
3-1/4" x 10"
General
Manufacturer
Zephyr
