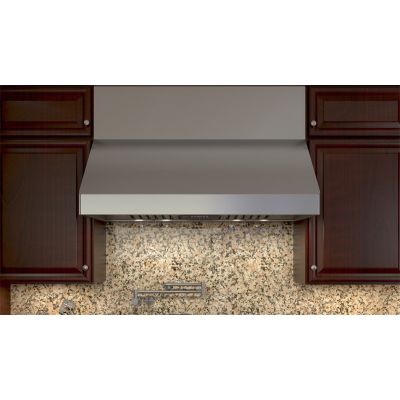

About the Zephyr AK7500BS
- Pro-Style Wall Mount Hood
- 200-650 CFM Internal Blower
- Airflow Control Technology (ACT) enables you to adjust CFM's
- 6 Speed Electronic Touch Controls
- Halogen Lighting
- Optional Accessories
Brand:
CFM:
650 CFM
Speeds:
6
Venting Type:
Convertible
Style:
Canopy Pro Style
Width:
29 7/8"
Height:
18"
Depth:
24"
Designed with professional-grade performance and seamless contours, the wall-mount Tempest II gives you serious cooking power, with 650-CFM or 1200-CFM blower options. Equipped with dishwasher-safe, high-airflow baffle filters, an optional wireless remote control, 6-speeds, and dual-level halogen lighting, it's everything the demanding cook could ask for.
A KITCHEN HOOD CAN DO MORE THAN VENT AIR
When co-founder Alex Siow seized on the idea that everything in the home is an opportunity for personal expression, he began by elevating the hood to its rightful place: no longer an afterthought, the hood stands above all, as distinctive in its performance as it is in its beauty.
Since the launch of their first hoods in 1997, they have remained true to their vision of delivering the unexpected-by deliberately seeking to change the marketplace. Alex was first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency-and raised the bar with self-cleaning, filter-free technologies never before available. Available at Designer Appliances.
After putting the power back into ventilation, the Europa line ushered in a new millennium with a style-forward clarion call to those who could find little inspiration above the range. Since then they have taken their vision ever higher, working with some of the world's best designers to find beauty in the everyday and create collections that are truly unlike any other.
Like California's Fu-Tung Cheng, the kitchen and bath design guru who has inspired millions with his books and ideas. And Italy's acclaimed Elica design team, featuring the renowned Bang + Olufsen designer David Lewis, who contributes his radically innovative aesthetic to a collection of daring works that never go unnoticed.
It's all for you. Look beyond the expected, and together, they'll discover new possibilities.
Redesigned with professional-grade performance and seamless contours, the wall-mount Tempest II gives you all of the advanced features of the under-cabinet Tempest I, plus up to three 600 - 1100-cfm blower options. With dishwasher-safe, high-airflow baffle filters. An optional heat lamp kit. And new ducting options to meet nearly any spec. It's everything the demanding cook could ask for-and is sure to inspire hood envy among your friends.
Key Features
Features
- ACT (Airflow Control Technology) - ACT is a feature built into Tempest I hoods with single internal blowers allowing you to limit the maximum blower CFM to meet local code requirements.
- 650 CFM
- 1200 CFM, 9 Sones Dual Internal w/ 1 Blower Optional
- 6 Sones Max.
- 6 Speeds
- Electronic Touch Controls
- Halogen Lamps, 35W
- Dual Level Lighting
- 8" Round(Single)/10" (Dual) Round Vertical Ducting
- 3-1/4" x 10" or 8" Round Horizontal Ducting (For Single Blower Only)
- 3 Years Parts Warranty
- 1 Year Labor Warranty
Optional Accessories
- 12" Duct Cover
- Wireless Remote
- Dual Internal Blower Kit
- Recirculating Kit (For 30" and 36" Models)
- Backsplash with Shelves (Based on Size)
- Make-Up Air Kit, Single Blower
- Make-Up Air Kit, Dual Blower
Available at Designer Appliances
- www.Designer Appliances.com
Manuals & Downloads
AK7500BS Full-Line Catalog as PDF
AK7500BS Make-Up Air Damper Manual
AK7500BS Hood Manual
AK7500BS Hood Specs
AK7500BS Wall Cap Inlet, Round
AK7500BS MUA00xA: Universal Make-Up Air Dampers
AK7500BS AK072x: 12" Duct Cover
AK7500BS AK071x: Back Splash
AK7500BS DCBL Catalog as PDF
AK7500BS Essentials Catalog as PDF
AK7500BS Arc Catalog as PDF
AK7500BS Cheng Catalog as PDF
AK7500BS Exploded View Diagram
Specifications
Features
Number of Fan Speeds
6
Dishwasher Safe Filters
Yes
Speeds
6
Approved for Outdoor Use
No
Sones
6
Halogen Lighting
Yes
Lighting Levels
2
Features
Duct Cover Extension
12"
Recirculating
Yes (Optional Kit)
Dual Internal Blower Option
Yes
Wireless Remote Control Option
Yes
Filters
SS Pro-Baffle x 2
Dual-Level Lighting
Yes
Lighting
Halogen, 35W x 2
Clean Air Mode
Yes
Auto Delay-Off
Yes
Speed Levels
6
Controls
Electronic Touch
ACT
Yes
Specifications
Vertical Ducting
8" (Single) Round/10" (Dual) Round
Single Blower AC Power
Max. 4 Amps and 4.6 Amps
Dual Blower AC Power
Max. 7.4 Amps and 8 Amps
Horizontal Ducting
3 1/4" x 10" or 8" Round (Single Blower Only)
AC Input
120V - 60Hz
GTIN
EAN
0646328003110
Dimensions
Width
29 7/8"
Depth
24"
Height
18"
Min. Height Accomodations
Min. Height 26" From Cooking Surface; Hood Mounted 62" From Floor.
Max. Height Accomodations
Max. Height 36" Above Cooking Surface; Hood Mounted 72" From Floor.
Performance
Internal Optional Dual Blower
400-1200 CFM
Internal Single Blower Sones
1-6
(Included)Internal Single Blower
200-650 CFM
Internal Optional Dual Blower Sones
2-9
Product Information
Model #
AK7500BS
Brand
Zephyr
Series
Power Tempest II
MPN
AK7500BS
UPC
00646328003110
Model
AK7500BS
Color
Stainless Steel
SS
Capacity
CFM
650 CFM
Dimensions
Height
18 Inch
Depth
24 Inch
Width
29 7/8 Inch
Appearance
Blower Type
Internal
Venting Type
Convertible
Mounting Type
Wall Mount
Color
Stainless Steel
Type
Hood
Style
Canopy Pro Style
Technical Details
Voltage
120 Volts
Amps
15
Energy Star Rated
No
General
Manufacturer
Zephyr
