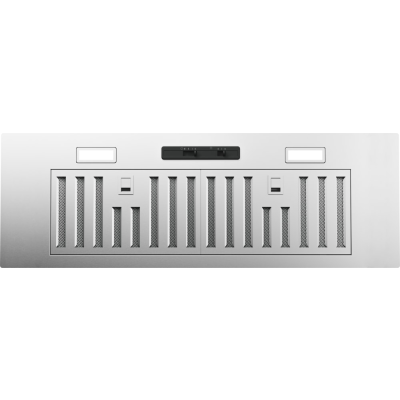

About the Zephyr AK8134BS
- Tornado I 34 Inch Insert Range Hood with 3-Speed 600 CFM Blower
- Mechanical Slide Controls
- LumiLight LED Lighting
- Hybrid Baffle Filters
Brand:
CFM:
600 CFM
Venting Type:
Convertible
Style:
Standard Hood
Width:
33 9/16"
Height:
10 1/2"
Depth:
11 3/16"
The Tornado I provides muscle and flexibility in a small, barely visible package beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
About Zephyr
Since the launch of its first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected-by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
3-Speed
- Allow you to adjust ventilation to meet your needs
600 CFM Blower
- Remove smoke and odor with ease with a powerful internal blower
Mechanical Slide Controls
- Offer simple operation
Dual-Level LumiLight LED Lighting
- Dual levels of light offer the perfect mood option for your kitchen
Hybrid Baffle Filters
- Effectively filter residue and grease from cooking
Vertical or Horizontal Ducting
- It gives the performance and flexibility you need
Warranty
- 3-years parts, 1-year labor
Additional Features
- Optional Liner Accessories Available
- Optional Ductless Recirculating Kit
Specifications
Smart
WiFi
No
Bluetooth
No
Overview
Horizontal Internal Blower
6" Round
Filters
Hybrid Baffle x2
Duct Discharge
Vertical or Horizontal
Dual-Level Lighting
Yes
Controls
Mechanical Slide
Auto Delay-Off
No
Lighting
LumiLight LED, 6W x2
Recirculating Option
Yes
Size
34"
Vertical Internal Blower
6" Round
Speed Levels
3
Blower Performance
Sones (Min. - Max.)
1.4 - 6
Blower CFM (Min. - Max.)
200 - 600
Dimensions
Width
33 9/16"
Height
10 1/2"
Depth
11 3/16"
Dimensions
Width
33 9/16 Inch
Depth
11 3/16 Inch
Height
10 1/2 Inch
Technical Details
Voltage
120 Volts
ADA Compliant
No
Energy Star Rated
No
Appearance
Venting Type
Convertible
Type
Cabinet Insert
Style
Standard Hood
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Under Cabinet
Glass Canopy
No
Fingerprint Resistant
No
GTIN
UPC
646328011269
EAN
0646328011269
Mounting Height Range
Gas Cooking Surface
24" - 36"
Electric Cooking Surface
20" - 36"
Electrical Specifications
AC Power
120V, 60Hz at Max. 3A
Capacity
Sones
6
Permanent Air Flow Reduction
No
CFM
600 CFM
Duct Size
6 Inch
Noise Level
6 Sones
General
Series
Core Collection
Manufacturer
Zephyr
Features
Delay Shut-Off
No
Dishwasher Safe Filters
Yes
Number of Fan Speeds
3
Lights
LED
Lighting Levels
2
Filter Type
Baffle
Product Information
Brand
Zephyr
Model
AK8134BS
