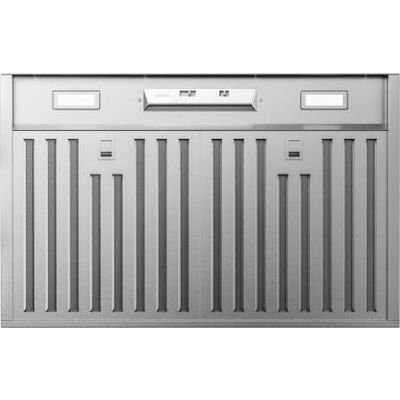

About the Zephyr AK9134BS
- 36 Inch Insert Liner with 300 CFM Internal Blower
- 4 Sones Maximum
- Mechanical Slide Controls
- 2 Halogen Lights
- Hybrid Baffle Filters and Optional Recirculating Kit
Good things come in small packages, and in this case it's the Monsoon Mini one-piece liner. Including dual-level halogen lights and 3-speed mechanical slide controls. Also equipped with a 300-CFM blower and the ability to duct either vertically or horizontally.
About Zephyr
Since the launch of their first hoods in 1997, Zephyr has remained true to their vision of delivering the unexpected-by deliberately seeking to change the marketplace. Zephyr was first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency-and raised the bar with self-cleaning, filter-free technologies never before seen. Available at Designer Appliances.
Key Features
300 CFM Internal Blower
- 150-300 CFM blower speeds.
Halogen Lighting
- Dual level halogen lighting to illuminate the cooktop.
Mechanical Slide Controls
- Easy to use slide controls to operate the 3 blower speeds.
Mesh Filters
- Easy to clean aluminum mesh filters.
Recirculating Option
- Go from ducted to recirculating with the Recirculating Kit (ZRC-9100A)
AK9134BS Specification Sheet
Specifications
Smart
WiFi
No
Bluetooth
No
Dimensions
Height
6 1/8"
Depth
18 1/16"
Width
34 3/8"
Performance
Internal Sones
1.5 - 4
Internal Blower
150 - 300 CFM
Duct Specifications
Vertical - Internal
7" Round, or 3 1/4" x 10"
Horizontal - Internal
3 1/4" x 10"
Capacity
Sones
4
Permanent Air Flow Reduction
No
Noise Level
4 Sones
CFM
300 CFM
Duct Size
7 Inch
Specifications:
Series
Power Monsoon Mini
Features
Number of Fan Speeds
3
Delay Shut-Off
No
Lights
LED
Lighting Levels
2
Filter Type
Baffle
Dishwasher Safe Filters
Yes
Warranty
Labor
1 Year
Parts
3 Years
Dimensions
Width
34 3/8 Inch
Depth
18 1/16 Inch
Height
6 1/8 Inch
Technical Details
Voltage
120 Volts
Amps
10
ADA Compliant
No
Energy Star Rated
No
Appearance
Venting Type
Convertible
Type
Cabinet Insert
Mounting Type
Under Cabinet
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Glass Canopy
No
Fingerprint Resistant
No
GTIN
UPC
646328009570
EAN
0646328009570
Features
Speed Levels
3
Recirculating
Optional
Lighting Levels
2
Lighting
2 35W Halogen
Filters
Hybrid Baffle
Controls
Mechanical Slide
Product Information
MPN
AK9134BS
Brand
Zephyr
Model
AK9134BS
General
Manufacturer
Zephyr
