About the Zephyr CTPE60CSX

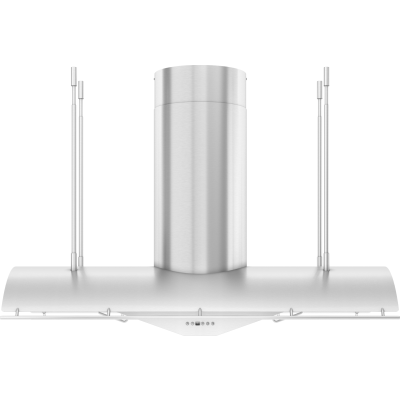

- Zephyr CTPE60CSX Island Mount Range Hood with 3-Speed Ventilation
- Multiple Blower Options
- Electronic Touch Controls
- LumiLight LED Lights
- Professional Baffle Filters
- Auto Delay-Off
- Optional Wireless Remote Control: 60 Inch
Brand:
CFM:
1,000 CFM
Venting Type:
Ducted
Style:
Chimney Style
Width:
60"
Height:
34"
Depth:
26 5/8"
The light and airy Trapeze is a streamlined reprieve from its bulky, conventional counterparts. Using a sleek suspension structure, the Trapeze seems to float in midair. Featuring directional LumiLight LED lighting and a graceful, slow-curve canopy, the Trapeze is more than a focal point - it's a statement.
About Zephyr
Since the launch of its first hoods in 1997, Zephyr has remained true to its vision of delivering the unexpected by deliberately seeking to change the marketplace. Zephyr was the first to recognize the unmet demand for more powerful, professional-grade hoods in the home. And they answered with the Power series, high-CFM performers that put air quality concerns to rest with quiet efficiency and raised the bar with self-cleaning, filter-free technologies never before seen.
Key Features
Electronic Touch Controls
- Offer simple operation
LumiLight LED Lighting
- It helps illuminate your cooking area with its tri-level LED lighting
Professional Baffle Filters
- Dishwasher-safe filters effortlessly trap cooking grease, oil, and smoke from your kitchen
Auto Delay-Off
- Allows you to keep your hood venting for 5 minutes after cooking is complete, and then automatically powers your hood off
Warranty
- 3-years Parts, 1-year Labor
Additional Features
- 3-Speed Ventilation
- Multiple Blower Options
- Optional Wireless Remote Control
- Directional Lighting
- Optional Extension Duct Cover Kit
Specifications
Smart
WiFi
No
Blower Performance (Blower Sold Separately)
Internal Blower (CBI-290C)
200-290 CFM, 1.4-3 Sones
In-Line Blower (PBN-1000A)
500-1,000 CFM
External Blower (CBE-1000)
500-1,000 CFM
Internal Blower (CBI-600A)
240-600 CFM, 1.8-6 Sones
Overview
Wireless Remote Control Option
Yes, RF
Tri-Level Lighting
Yes
Speed Levels
3
Size
60"
Recirculating Option
No
Filters
Professional Baffle
Extension Duct Cover
Yes, Up to 12' Ceiling
Directional Lighting
LumiLight LED, 6W x4
Controls
Electronic Touch Controls
Color
Stainless Steel
Auto Delay-Off
Yes
ADA Compliant
Yes (with Remote Accessory)
Product Dimensions
Depth
26 5/8"
Height Max.
52"
Width
59 1/8" (60")
Mounting Height Range
26" - 36"
Height Min.
34"
Dimensions
Width
60 Inch
Depth
26 5/8 Inch
Height
34 Inch
Technical Details
Voltage
120 Volts
Energy Star Rated
No
Approved for Outdoor Use
No
Appearance
Venting Type
Ducted
Type
Hood
Style
Chimney Style
Color
Stainless Steel
Blower Type
Sold Separately
Blower Included
No
Glass Canopy
No
Mounting Type
Island Mount
GTIN
UPC
646328010446
AC Power
Hood w/ PBN-1000A
120V, 60Hz, Max. 5.65A
Hood w/ CBI-600A
120V, 60Hz, Max. 2.95A
Hood w/ CBI-290C
120V, 60Hz, Max. 0.95A
Hood w/ CBE-1000
120V, 60Hz, Max. 6.45A
Capacity
Duct Size
6 Inch
CFM
1,000 CFM
Permanent Air Flow Reduction
No
Noise Level
6 Sones
Features
Dishwasher Safe Filters
Yes
Delay Shut-Off
Yes
Filter Type
Baffle
Number of Fan Speeds
3
Lights
LED
Lighting Levels
3
Product Information
Brand
Zephyr
MPN
CTP-E60CSX
Model
CTPE60CSX
Warranty
Parts
3-Years
Labor
1-Year
Duct Specifications
Vertical - Internal Blower
6" Round
Vertical - External/In-Line Blower
10" - 8"
General
Series
Designer Trapeze
Manufacturer
Zephyr
