About the Bertazzoni MAS486GDFMNEVLP

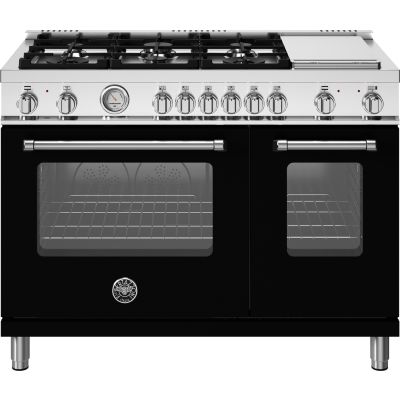

- Bertazzoni MAS486GDFMNEVLP 48 Inch Freestanding Counter Depth Dual Fuel Range with 6 Sealed Burners
- 7.1 cu. ft. Total Capacity
- Double Oven
- European Convection Oven
- Continuous Cast Iron Grates
- Lateral Dual Wok
- Electric Griddle
- Soft Motion Hinges and Temperature Gauge: Nero Black
- LP
Brand:
Series:
Master
Style:
Freestanding
Width:
47 7/8"
Height:
36"
Depth:
25 1/4"
Capacity:
4.7 Cu. Ft.
Convection:
Yes
Self Clean:
No
Griddle:
Yes
Grill:
No
Fuel Type:
Dual Fuel
Volts:
240/208 Volts
Amps:
40
The new Bertazzoni ranges are superb cooking appliances designed, engineered and made in Italy. All Bertazzoni appliances integrate seamlessly into style-harmonized suites for a true, high-performing kitchen.
The maintop with 6 burners and an electric griddle features 2 dual ring 19,000 BTU power-burners that boil water in under 6 minutes (best in class), and 4 additional MonoBloc burners to suit every style of cooking, with delicate simmer at 750 BTUs. The 4.7 cubic feet oven is the largest in its class, with a dual convection fan for balanced airflow and even temperature baking and roasting on 7 shelf levels. The extra wide electric broiler with optional convection is ideal for grilling and searing at high heat. The 2.4 cubic feet auxiliary oven is perfect for smaller dishes and warming. Both ovens include convenient soft-motion doors. The edge-to-edge interior oven glass door maximizes interior volume and can be wiped clean without effort.
About Bertazzoni
Bertazzoni cooking products originate in Emilia-Romagna, a region world-famous for its food. Precision-engineered to the highest specifications by the Bertazzoni family, who have been making high-quality ranges since the beginning of the last century, every appliance bearing the Bertazzoni name represents an unwavering commitment to quality.
Key Features
6 Sealed Burners
- 6 Aluminum burners with up to 19000 BTU and stainless steel griddle with cover.
- 19000 BTU Power burner with dual ring flame delivering the fastest time-to-boil in its class.
Counter Depth Design
- Allows ranges to sit flush with cabinetry for seamless installation.
Stainless Steel Worktop
- Formed from one piece to allow easy cleaning with no gaps, joints, or screws.
European Convection Oven
- For balanced airflow and even temperature baking and roasting on 7 shelf levels.
Oven door
- Both ovens include convenient soft-motion doors. The edge-to-edge interior oven glass door maximizes interior volume and can be wiped clean without effort.
Elegant Temperature Gauge
- For control of oven temperature during pre-heating and baking.
1" Stainless Steel Backguard
- For sleek design and integration into any kitchen.
High Power Electric Griddle
- The stainless-steel griddle is designed to heat up super-fast to cook a wide variety of food to perfection. This makes it easy to prepare and serve the perfect pancakes, grilled cheese, hamburgers, or bacon.
Exclusive Finish and Materials
- Italian style and craftmanship inspire the exclusive matt color finish of this range. Metal knobs and handles make the range a standout in every kitchen. Stainless Toekick available as accessory. Optional Décor Sets knobs and handles in contrasting metal
Specifications
Electrical Specifications
Volts
120/240V
Frequency
60Hz
Electrical Requirements
120/240V 60Hz 6700W
Amperage
40A
Dimensions & Weight
Product Width
48"
Product Depth
27-3/8"
Product Height
35-3/4" - 37-1/2"
Shipping Width
51-1/2"
Shipping Depth
29-1/2"
Shipping Height
42-1/2"
Product Weight
363 lbs
Shipping Weight
375 lbs
Packaging Dimensions
42-1/8"H x 51-15/16"W x 29-15/16"D
Product Information
Brand
Bertazzoni
Model
MAS486GDFMNEVLP
Warranty Terms
2 years ? Bertazzoni appliances are backed by a 2 year parts and labor warranty. For additional details visit https://us.bertazzoni.com/more/warranty-registration
Appearance
Fuel Type
Dual Fuel
Fuel Subtype
Liquid Propane
Style
Freestanding
Color
Matte Black
Fingerprint Resistant
Yes
Cooktop
Sealed Burner & Griddle
Cooktop Control Type
Knobs
Oven Control Type
Knobs
Viewing Window
Yes
Double Oven
Yes
Drawer
None
Clock
No
Downdraft Venting
No
Trim Color
Stainless Steel
Stainless Steel Handle
Yes
Dimensions
Width
47 7/8 Inch
Depth
25 1/4 Inch
Height
36 Inch
Exterior Width
48 Inch
Smart
WiFi
No
Smart Accessory Required
No
Capacity
Number of Burners
6
Primary Oven Capacity
4.7 Cu. Ft.
Secondary Oven Capacity
2.4 Cu. Ft.
Burner
Simmer Burner
Yes
Power Burner
Yes
Burner 1 Output
1300 BTU/h - 19,000 BTU/h
Burner 2 Output
1300 BTU/h - 19,000 BTU/h
Burner 3 Output
1500 BTU/h - 5900 BTU/h
Burner 4 Output
1500 BTU/h - 5900 BTU/h
Burner 5 Output
2500 BTU/h - 10,400 BTU/h
Burner 6 Output
750 BTU/h - 3500 BTU/h
Burner 7 Output
1100W (griddle)
Gas Cooktop Features
Continuous Grates
Yes
Cooktop Accessory
Griddle
Grill
No
Griddle
Yes
French Top
No
Oven Features
Digital Temperature Display
No
Timer
No
Delay Bake
No
Fast Preheat
Yes
Convection
Yes
Proof Mode
No
Self-Cleaning
No
Steam Clean
No
Racks
2
Temperature Probe
No
Removable Door
Yes
Air Fry
No
Sous Vide
No
No Preheat
No
Glide Rack(s)
Yes
Broiler Element Location
Top
Broiler Pan Included
Yes
Interior Oven Light
Yes
Oven Camera
No
Steam Assist
No
Soft Close
Yes
Technical Details
ADA Compliant
No
Amps
40
Voltage
240/208 Volts
Energy Star Rated
No
Oven Wattage
6,800
LP Conversion
No
Cooktop Specifications
Burner 4
1500 BTU - 5900 BTU (Right Rear)
Burner 3
1300 BTU - 19000 BTU (Right Front)
Burner 2
750 BTU - 3500 BTU (Left Rear)
Burner 1
1300 BTU - 19000 BTU (Left Front)
Burner Accents
Brass Medallion on Power Burners
Burner Type
MonoBloc Aluminum Burners
Thermocouple Safety
Yes
Power Burner
Yes
Simmer Burner
Yes
Number of Burners
6
Cooktop Control Type
Knobs
Cooktop
Sealed Gas Burners with Electric Griddle
Burner 5
1500 BTU - 5900 BTU (Center Front)
Burner 6
2500 BTU - 10400 BTU (Center Rear)
Griddle Type
Electric Stainless Steel Griddle
Griddle Output
1100W
Pan Supports
Continuous Cast Iron Grates
Maintop Design
Counter-Depth Design
General Specifications
UL Listed
Yes
Made In
Italy
Finish
Fingerprint Resistant Stainless Steel
Installation Type
Freestanding
Style
Freestanding
Fuel Type
Dual Fuel
Product Type
Freestanding Dual Fuel Range
Series
Master Series
Model
MAS486GDFMXV
General
Series
Master
Manufacturer
Bertazzoni
Oven Specifications
Oven Control Type
Knobs
Double Oven
Yes
Total Capacity
7.1 Cu. Ft.
Main Oven Capacity
4.7 Cu. Ft.
Auxiliary Oven Capacity
2.4 Cu. Ft.
Main Oven Fuel
Electric
Auxiliary Oven Fuel
Electric
Convection
Yes
Main Oven Convection
Dual Horizontal Convection
Main Oven Cooking Modes
9
Auxiliary Oven Cooking Modes
5
Cooking Modes
Fast Preheat; Bake; Bottom Bake; Upper Bake; Convection; Convection Bake; Broil; Convection Broil; Pizza
Broiler
Extra-Wide High-Power Broiler
Self-Cleaning
No
Shelf Levels
7
Racks
2
Main Oven Shelves
1 Telescopic Shelf; 1 Standard Shelf
Auxiliary Oven Shelves
1 Telescopic Shelf; 1 Standard Shelf
Tray
1 Baking Tray with Grill Trivet
Door Type
Soft-Close Edge-to-Edge Triple Glass Door
Inner Door Glass
3-Layer Tempered Glass
Temperature Gauge
Yes
Door Hinges
Soft Motion
Included Accessories
Island Trim
1" Stainless Steel Island Trim Included
Toe Kick
Integrated Stainless Steel Toe Kick Included
Design Features
Knobs
Metal
Legs
2-3/8" Stainless Steel
Warranty
Warranty
2 Year Parts and Labor
Optional Accessories
DSMASDKSG
Satin Gold Décor Set - 12 Knobs
DSMASDKSB
Black Nickel Décor Set - 12 Knobs
DSMASHSG
Satin Gold Décor Set - 2 Handle Terminals
DSMASHSB
Black Nickel Décor Set - 2 Handle Terminals
CIG36
Cast Iron Griddle
Shabbos Compliance
Sabbath Mode
