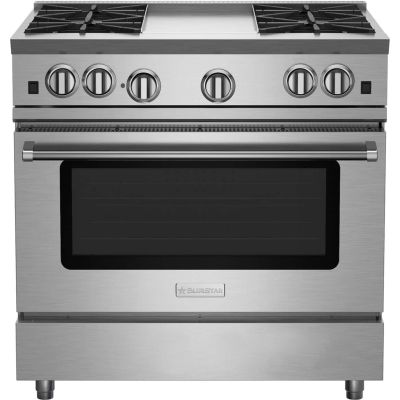

About the BlueStar RNB364GV2PLT
- 36 Inch Freestanding Gas Range with 4 Open Burners
- 5 Cu. Ft. Capacity
- Continuous Grates
- 12 Inch Griddle
- Infrared Broiler
- Extra-Large Convection Oven
- UltraNova™ Open Burners: NG Stainless Steel
- Plated Trim
Brand:
Series:
RNB
Style:
Freestanding
Width:
35 7/8"
Height:
36 3/4"
Depth:
28 7/8"
Capacity:
5 Cu. Ft.
Convection:
Yes
Self Clean:
No
Griddle:
Yes
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Key Features
12 Inch Griddle
- 15,000 BTU integrated griddle.
Island Trim Backguard Included
- If you are using an island trim or grate height, a 6" clearance between the back of the range and a combustible surface is required.
NOVA, ULTRANOVA and Simmer Burners
- Their cast iron porcelain-enameled NOVA and ULTRANOVA top burners are the most versatile burners in the industry.
- The Nova burner provides up to 15,000 BTUs of cooking power.
- For that extra boost, the ULTRANOVA delivers an amazing 22,000 BTUs; a rapid boil or superior saute is never a problem!
- When using their gentle 130°F simmer feature, delicate sauces and soups are made simple with superior temperature control and flame disbursement.
Convection Oven Cooking
- The cavity design of the oven and the convection fan system result in the most complete exchange of air possible.
- This provides incredibly precise, even heat distribution.
- It provides extra large oven capacity on a 36" range and will accommodate a full-size commercial 18" x 26" baking sheet.
Infrared Broiler
- Because of its popularity in the commercial market, the direct-fired ceramic infrared broiler is standard on all residential ranges.
- The large burner produces 1,850°F of intense, searing heat close to the burner, while effecting a gentler broiling for foods placed farther away.
- The broiler is fully recessed into the oven's top to create maximum cooking space.
Full Motion Grates
- Bring sauce to a boil while stirring on a front burner, then slide it to the rear to simmer while you saute up front!
- Their full motion grates allow you to easily reposition pots and pans from front to rear burners without lifting.
- The grates are also oversized to accommodate the largest stock pots and saute pans.
Standard Features
- Heavy-duty, commercial stainless steel construction.
- Automatic electronic ignition and re-ignition system.
- Convection system.
- Interior oven light.
- Ceramic infra-red broiler.
- Commercial quality oven control.
- Heavy-duty oven door.
- Push-to-turn, infinite setting NOVA and ULTRANOVA top burner controls with new 130°F simmer burner.
- Heavy-duty steel alloy control knobs.
- Removable dishwasher friendly stainless steel drip trays.
- Extra large oven capacity. 29" Width x 20" Depth x 15" Height.
- 1 year parts and labor warranty.
NOTES:
- Body sides are not painted for standard option. This additional option is listed above and must be selected for painted body sides.
- Black Knobs are standard.
Specifications
General
Series
RNB
Manufacturer
BlueStar
Burner Ratings
Charbroiler Burner Rating
N/A
Griddle Burner Rating
15,000 BTU
Infrared Broiler Rating
15,000 BTU
Nova Burners
1 @ 15,000 BTU
Oven Burner Rating
30,000 BTU
PrimaNova Burners
N/A
Simmer Burners
1 @ 9,500 BTU
SuperNova Burners
N/A
UltraNova Burners
2 @ 22,000 BTU
Dimensions and Weights
Weight
459.0 Lbs.
Overall Width
35 7/8"
Overall Height with Island Trim
38 1/4"
Interior Oven Depth
20"
Interior Oven Height
15"
Interior Oven Width
29"
Overall Depth
28 7/8"
Overall Height
36 3/4"
Overall Height with 17" Backguard
54 1/4"
Overall Height with 6" Backguard
43 1/4"
Overall Height with High Shelf
61"
Specifications
Electrical Requirents
120 VAC, 15 Amps, Single Phase
Installation Clearance
0" Side Cabinet, 0" Back Wall
Operating Gas Pressure
NAT: 5.0" WC, LP: 10.0" WC
Warranty
1 Year Parts and Labor
Technical Details
Star-K Certified
No
Voltage
120 Volts
ADA Compliant
No
Amps
15
Oven BTUs
30,000
Appearance
Style
Freestanding
Trim Color
Plated Trim
Viewing Window
Yes
Stainless Steel Handle
Yes
Clock
No
Color
Stainless Steel
Cooktop
Open Burner & Griddle
Cooktop Control Type
Knobs
Oven Control Type
Knobs
Fuel Subtype
Natural Gas
Fuel Type
Gas
Oven Features
Temperature Probe
No
Timer
No
Self-Cleaning
No
Convection
Yes
Broiler Element Location
Top
Broiler Pan Included
No
Delay Bake
No
Digital Temperature Display
No
Proof Mode
No
Racks
2
Removable Door
No
Interior Oven Light
Yes
Sabbath Mode
No
Product Information
Warranty Terms
2 years ? BlueStar® cooking appliances include a full two-year warranty. For full details, visit https://www.bluestarcooking.com/resources/warranty/
Brand
BlueStar
MPN
RNB364GV2
Model
RNB364GV2PLT
Features
Stainless Steel Drip Trays
Yes
Re-Ignition System
Yes
Ceramic Infrared Broiler
Yes
Control Knobs
Heavy-Duty Steel Alloy
Convection System
Yes
Electronic Ignition
Automatic
Full Motion Grates
Yes
Interior Oven Light
Yes
Dimensions
Width
35 7/8 Inch
Depth
28 7/8 Inch
Interior Width
29 Inch
Height
36 3/4 Inch
Interior Depth
20 Inch
Interior Height
15 Inch
Gas Cooktop Features
Continuous Grates
Yes
French Top
No
Griddle
Yes
Grill
No
Specifications:
Burner Output
Burner 4 Output
9000
Burner 3 Output
15000
Burner 1 Output
22000
Burner 2 Output
22000
Capacity
Number of Burners
4
Primary Oven Capacity
5 Cu. Ft.
