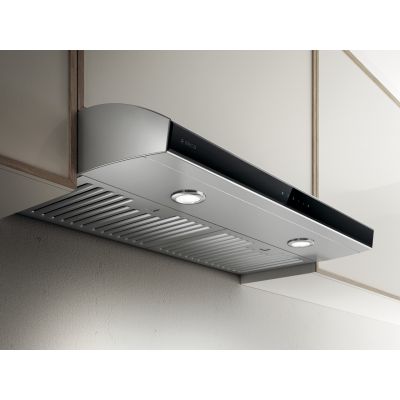

About the Elica EAI436SS
- 36 Inch Under Cabinet Range Hood with Touch Controls
- LED Lighting
- Two Microhole Filters
- Dishwasher-Safe Filters
- Compact Height and 430 CFM
Brand:
CFM:
430 CFM
Venting Type:
Convertible
Style:
Standard Hood
Width:
36"
Height:
4 7/10"
Depth:
20"
Key Features
Touch Controls
- Seamlessly blends into the hood for an elegant design.
LED Lighting
- Brilliantly illuminate your cooktop.
Two Dishwasher-Safe Microhole Filters
- Easily keep your filters clean and working their best.
Compact Height
- Ideal for kitchens where under cabinet space is limited.
Specifications
Smart
WiFi
No
Smart Accessory Required
No
Bluetooth
No
Additional Specs
Electrical
120V - 60 Hz, 333 W
Duct Transition
3 1/4 x 10" (Top or Rear), or 7" round (sold separately)
Dimensions
36" W x 20" D x 4 7/10" H
Controls
Capacitive Touch (Glass)
Blower Type (internal)
430 CFM, (3-Speed Internal + boost)
Finish
Stainless Steel with Black Tempered Glass
Grease Filter
2 Dishwasher-Safe, Stainless Steel Baffle Slot Filters
Illumination
2 Premium Dimmable Led lights, 2.1 W, 4000 K
Noise (sones)
6.1 Sones
Installation Type
Ducted or Recirculating Installation (Recirculating Kit Sold Separately)
Warranty
Warranty
Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts & In-Home Labor by registering on elica.com
Capacity
Sones
6.1
Permanent Air Flow Reduction
Yes
Noise Level
6.1 Sones
General
Series
Aria
Manufacturer
Elica
Features
Number of Fan Speeds
4
CFM
430 CFM
Approved for Outdoor Use
No
Delay Shut-Off
No
Lights
LED
Halogen Lighting
No
Filter Type
Baffle
Duct Size
7 Inch
Dishwasher Safe Filters
Yes
Dimensions
Width
36 Inch
Height
4 7/10 Inch
Depth
20 Inch
Product Information
Warranty Terms
3 years ? Elica appliances are backed by a comprehensive three-year warranty from the date of original installation. For full warranty details visit https://registerproductus.elica.com/US-
Model
EAI436SS
Brand
Elica
Technical Details
Voltage
120 Volts
CEE Rating
Not Available
Amps
15
ADA Compliant
No
Energy Star Rated
No
Appearance
Venting Type
Convertible
Type
Hood
Style
Standard Hood
Mounting Type
Under Cabinet
Blower Type
Internal
Blower Included
Yes
Color
Stainless Steel
Glass Canopy
No
Fingerprint Resistant
No
GTIN
UPC
190603001679
EAN
0190603001679
Kits
Recirculating Kit
KIT02178 (contains 2 flat carbon filters & clips) | KIT02179 (contains 2 flat carbon filters & clips)
Backdraft Damper
KIT02723 (7" Round)
