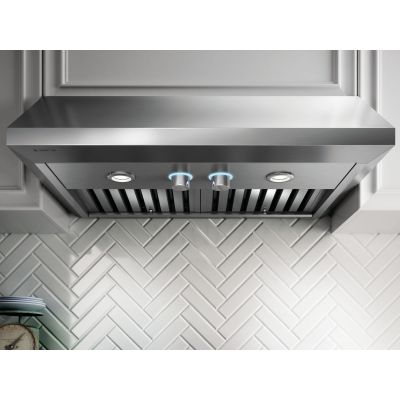

About the Elica ECV630S3
- 30 Inch Under Cabinet Range Hood with HUSH Sound Supression
- HeatGuard Sensor
- Backlit Knobs
- LED Lamps
- Dishwasher Safe Filters
- 600 CFM and 4 Speeds
Brand:
CFM:
600 CFM
Speeds:
4
Venting Type:
Ducted
Style:
Standard Hood
Width:
30"
Height:
11 1/32"
Depth:
23"
Key Features
HUSH Sound Supression
- Enables you to comfortably talk and entertain, even when cooking up a storm.
HeatGuard Sensor
- Detects excessive heat and automatically adjusts blower speed.
Backlit Knobs
- A gentle blue light illuminates the knob controls.
LED Lamps
- Energy efficient LED lighting illuminates the cooktop, so you can cook confidently.
Dishwasher Safe Filters
- Easily remove the stainless filters and toss them in the dishwasher for a quick clean.
600 CFM
- Internal blower provides 600 CFM of ventilating power.
4 Speeds
- Choose among 4 speeds to help you remove smoke, grease, and odors.
ECV630S3 Backsplash Kit
Specifications
GTIN
EAN
0190603001952
UPC
190603001952
Additional Specs
Finish
Stainless Steel
Controls
Fully retractable rotating knobs with blue backlighting
Illumination
2 LED, 6.5 W, 3000 K, 540 Lumen/Lamp
Grease Filter
(2) Dishwasher-Safe, Professional Stainless Steel Baffle
Duct Transition
3 1/4" x 10" Rectangular transition (Top or Rear)
Installation Type
Ducted Installation Only
Electrical
120V - 60 Hz, 457 W
Noise (sones)
7 Sones
Dimensions
30" W x 23" D x 11 1/32"
Blower Type (internal)
600 CFM (4-speed)
Kits
Long Chimney Extension Kit 6"
KIT02159 | KIT02158
Long Chimney Extension Kit 12"
KIT02160 | KIT02161
Back Splash Kit
KIT0142864 | KIT0142867
Features
Number of Fan Speeds
4
Delay Shut-Off
No
Filter Type
Baffle
Approved for Outdoor Use
No
Halogen Lighting
No
Speeds
4
Dishwasher Safe Filters
Yes
CFM
600 CFM
Lights
LED
Product Information
Warranty Terms
3 years ? Elica appliances are backed by a comprehensive three-year warranty from the date of original installation. For full warranty details visit https://registerproductus.elica.com/US-
Model
ECV630S3
Brand
Elica
Warranty
Warranty
Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts & In-Home Labor by registering on elica.com
Technical Details
ADA Compliant
No
Voltage
120 Volts
Amps
15
CEE Rating
Not Available
Energy Star Rated
No
Appearance
Fingerprint Resistant
No
Glass Canopy
No
Blower Included
Yes
Blower Type
Internal
Venting Type
Ducted
Mounting Type
Under Cabinet
Color
Stainless Steel
Type
Hood
Style
Standard Hood
Smart
WiFi
No
Smart Accessory Required
No
Capacity
Noise Level
7 Sones
Duct Size
10 Inch
Sones
7
General
Series
Cervinia
Manufacturer
Elica
Dimensions
Width
30 Inch
Depth
23 Inch
Height
11 1/32 Inch
