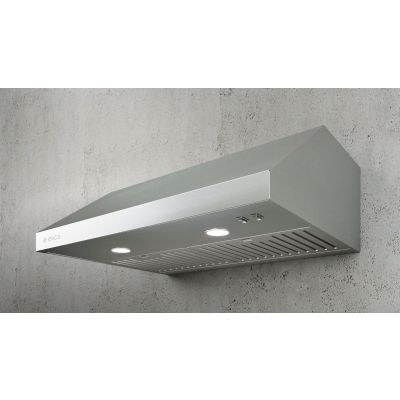

About the Elica ESR436S1
- Sora Wall Mount Convertible Range Hood with 3-Speed Internal Blower
- Dishwasher-Safe Baffle Filters
- LED Lights
- Rocker Controls: 36" Stainless Steel (400 CFM)
Brand:
CFM:
400 CFM
Venting Type:
Convertible
Style:
Standard Hood
Width:
36"
Height:
10"
Depth:
23"
Key Features
Quiet Operation
- Minimum 1.5 Sones at working speed, Maximum at 5.9 Sones
CFM Reduction
- Optional CFM Reduction Kit: KIT02748
Convertible
- Ducted or Recirculating Installation (Recirculating Kit is sold separately)
Blower Type
- Internal 3-Speed 400 CFM Blower
Illumination
- Two 2.1W LED Lamps - expected life of 20,000 hours
Filters
- Stainless Steel Baffle Slot Filters - Baffled filter and mesh backing allows air flow and blocks grease for esy collection and clean up.
Replacement Parts
- CFM Reduction Kit- KIT02748
- GF09EA - Grease Filter (30" Unit)
- GF09FA - Grease Filter (36" Unit)
- Replacement LED Bulbs - 42006BH
ESR436S1 Installation Instructions
Specifications
Smart
WiFi
No
Smart Accessory Required
No
Additional Specs
Grease Filter
Dishwasher-safe Stainless steel Semi Baffle Slot
Finish
Stainless Steel
Electrical
120 V, 60 Hz, 265 W
Duct Transition
3 1/4" x 10" (Top or Rear) with Back Draft Damper
Dimensions
36" W x 23" D x 10" H
Controls
Rocker Switches
Blower Type (internal)
400 CFM (2- Speed)
Illumination
2 LED Lamps, 2.1 W, 4000 K
Installation Type
Ducted or Recirculating (Kit sold separately)
Noise (sones)
5.9 Sones
Warranty
Warranty
Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts & In-Home Labor by registering on elica.com
Capacity
Sones
5.9
CFM
400 CFM
Noise Level
5.9 Sones
Duct Size
10 Inch
Dimensions
Width
36 Inch
Depth
23 Inch
Height
10 Inch
Product Information
Warranty Terms
3 years ? Elica appliances are backed by a comprehensive three-year warranty from the date of original installation. For full warranty details visit https://registerproductus.elica.com/US-
Brand
Elica
Model
ESR436S1
Technical Details
Voltage
120 Volts
Approved for Outdoor Use
No
ADA Compliant
No
Energy Star Rated
No
Appearance
Venting Type
Convertible
Type
Hood
Style
Standard Hood
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Under Cabinet
Glass Canopy
No
Fingerprint Resistant
No
GTIN
UPC
190603003833
Kits
Recirculating Kit
KIT02770
CFM Reduction Kit
KIT0175561
General
Series
Comfort Sora
Manufacturer
Elica
Features
Number of Fan Speeds
2
Delay Shut-Off
No
Dishwasher Safe Filters
Yes
Lights
LED
Filter Type
Baffle
