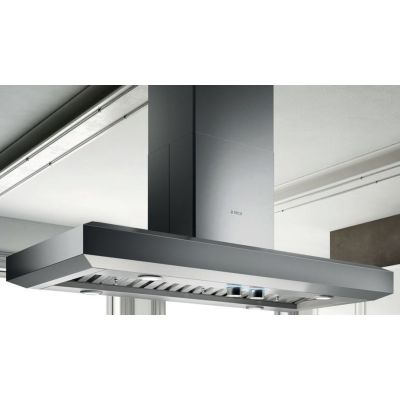

About the Elica EVI642S1
- Island Mount Range Hood with 4-Speed Internal Blower
- Fully Retractable Controls
- LED Lighting
- Dishwasher-Safe Baffle Filters
- Hush System
- Heat Gaurd: 42" Stainless Steel (600 CFM)
Key Features
Hush System: Minimum 3.21 Sones, Maximum 7.7 Sones
- Proprietary sound dampening system effectively reduces noise levels by over 35%
Replaceable LED
- Unlike most integrated options, Arezzo is equipped with consumer LED bulbs that enable homeowners to replace bulbs in seconds
Seamless Craftmanship
- Made from heavy gauge stainless steel, this seamless construction offers a refined and elegant look
Stainless Steel Filters
- Baffle Filters with grease collectors are designed for high volumes of cooking; increased air flow improves efficiency and stainless design makes clean up easier
Professional Grade Performance
- High performance with 600 CFM Internal Blower
Heat Guard Technology
- Senses extreme temperatures (> 158 Degrees) and automatically adjusts fan speeds to highest settings
Replacement Parts
- Grease Filter: GF044A (42")
- Grease Filter: GF09EA (48")
- Replacement LED: LMP0131098
EVI642S1 In Line Blower Installation Manual
Specifications
Smart
WiFi
No
Smart Accessory Required
No
Additional Specs
Illumination
4 LED Lights, 6.5 W, 3000 K, 540 Lumen/lamp
Grease Filter
(3) Dishwasher-Safe, Professional Stainless Steel Baffle
Finish
Stainless Steel
Electrical
120V - 60 Hz, 480 W
Duct Transition
8" Round with Back Draft Damper (top only)
Dimensions
42" W x 24" D x Min: 30" - Max: 51" H
Controls
Fully Retractable Rotating Knobs with Blue Backlighting
Blower Type (internal)
600 CFM (4 -speed)
Installation Type
Ducted Installation Only
Noise (sones)
7 Sones
Telescopic Chimney
Can reach ceiling heights 7'6" - 10'1" (over electric cooking), 8'0" - 10'1" (over gas cooking)
Warranty
Warranty
Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts & In-Home Labor by registering on elica.com
Capacity
Sones
7
CFM
600 CFM
Duct Size
8 Inch
Permanent Air Flow Reduction
No
Noise Level
7 Sones
Dimensions
Width
42 Inch
Depth
24 Inch
Height
51 Inch
Product Information
Warranty Terms
3 years ? Elica appliances are backed by a comprehensive three-year warranty from the date of original installation. For full warranty details visit https://registerproductus.elica.com/US-
Brand
Elica
Model
EVI642S1
Technical Details
Voltage
120 Volts
Approved for Outdoor Use
No
Amps
15
Appearance
Venting Type
Ducted
Type
Hood
Style
Chimney Style
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Island Mount
Glass Canopy
No
Fingerprint Resistant
No
GTIN
UPC
190603002331
Kits
Long Chimney Extension Kit 12"
KIT0145610 (Can reach up to 13'0")
Inline Blower Kit (1200 CFM)
KIT0154387
External Blower Kit
KIT0153054
General
Series
Professional
Manufacturer
Elica
Features
Delay Shut-Off
No
Dishwasher Safe Filters
Yes
Number of Fan Speeds
4
Lights
LED
Filter Type
Baffle
