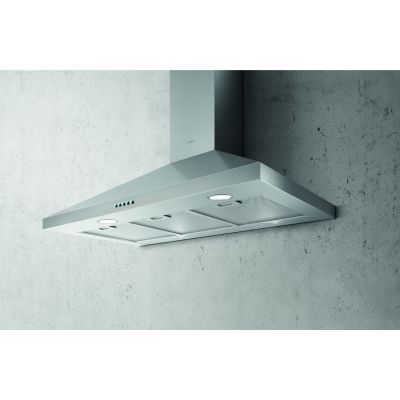

About the Elica EVL424SS
- Volterra Wall Mount Chimney Hood with Backlit Push Controls
- LED Lamps
- 400 CFM
- 3 Speeds and Dishwasher Safe 3 Layer Mesh Filters: 24" Stainless Steel (400 CFM)
Brand:
CFM:
400 CFM
Venting Type:
Convertible
Style:
Chimney Style
Width:
23 5/8"
Height:
42 1/8"
Depth:
19 5/8"
Key Features
Backlit Push Controls
- A gentle blue glow illuminates the controls so you can easily select the fan speeds and light settings.
LED Lamps
- Two LED lamps brightly light up the cooktop so you can cook confidently.
400 CFM
- Internal blower provides 400 CFM of ventilating power.
3 Speeds
- Choose among 3 speeds to help you remove smoke, grease, and odors.
Dishwasher Safe Filter
- Easily remove the aluminum filters and toss them in the dishwasher for a quick clean.
EVL424SS Installation Instructions
Specifications
Smart
WiFi
No
Smart Accessory Required
No
Remote Monitoring
No
Remote Control
No
Additional Specs
Installation Type
Ducted or Recirculating (Kit sold separately)
Illumination
2 LED Lights, 2.1 W, 4000 K
Grease Filter
(2)Dishwasher-Safe, Anodized Aluminum Mesh Filter
Finish
Stainless Steel
Electrical
120V - 60 Hz, 265 watts
Duct Transition
6" Round with BackDraft Damper (top only)
Dimensions
23 5/8" W x 19 5/8" D x Min: 28 3/8" - Max: 42 1/8" H
Controls
Backlit Electronic Push Buttons
Blower Type (internal)
400 CFM(3-speed)
Noise (sones)
5.9 Sones
Telescopic Chimney
Can reach ceiling heights For heights 7'5" - 9'1" (ducted), 7'5" - 9'6" (recirculating)
Warranty
Warranty
Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts & In-Home Labor by registering on elica.com
Capacity
Sones
5.9
CFM
400 CFM
Duct Size
6 Inch
Permanent Air Flow Reduction
No
Noise Level
5.9 Sones
Dimensions
Width
23 5/8 Inch
Depth
19 5/8 Inch
Height
42 1/8 Inch
Product Information
Warranty Terms
3 years ? Elica appliances are backed by a comprehensive three-year warranty from the date of original installation. For full warranty details visit https://registerproductus.elica.com/US-
Brand
Elica
Model
EVL424SS
Technical Details
Voltage
120 Volts
Approved for Outdoor Use
No
Amps
15
Appearance
Venting Type
Convertible
Type
Hood
Style
Chimney Style
Color
Stainless Steel
Blower Type
Internal
Blower Included
Yes
Mounting Type
Wall Mount
Glass Canopy
No
Fingerprint Resistant
No
GTIN
UPC
190603003512
Kits
Upgrade Filter Kit
GF04YB (contains 1 filter)
Recirculating Kit
KIT02766 (contains 6" deflector and 2 round carbon filters)
Long Chimney Extension Kit
KIT02762 (Ducted: 11'3" - Recirculating: 11'7")
CFM Reduction Kit
KIT0175561 (achieves 280 CFM)
General
Series
Comfort Volterra
Manufacturer
Elica
Features
Delay Shut-Off
No
Dishwasher Safe Filters
Yes
Number of Fan Speeds
3
Lights
LED
Filter Type
Mesh
