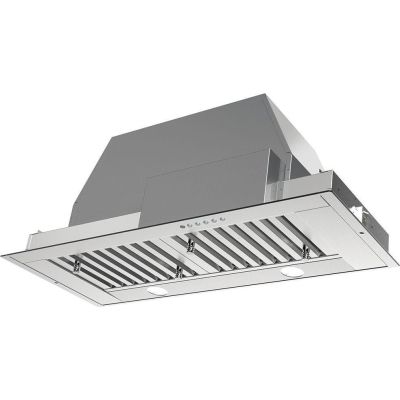

About the Faber INSD29SSV
- Inca SD Pro Style Insert Range Hood with Variable Air Management System
- Pro Blower
- Pro Baffle Filter
- Easy Snap Mounting Clips
- Direct Rear Venting
- Delay Auto-Off
- LED Light
- Intensive Speed: 29 Inch 600 CFM
Brand:
CFM:
600 CFM
Venting Type:
Convertible
Style:
Canopy Pro Style
Width:
28 3/8"
Height:
12 15/16"
Depth:
13 3/4"
Key Features
Variable Air Management System
- Allows you to permanently adjust your hood to CFM levels of 295, 395 or 600 to meet local building codes.
Pro Blower
- An all-metal housing and metal impellers to take the heat from professional style cooking.
Pro Baffle Filter
- Professional style baffle grease filters, which are dishwasher safe and are able to stand up to pro cooking.
Easy Snap Mounting Clips
- Installation with easy built-in adjustable clips that tighten onto the sides of the cabinet floor.
Direct Rear Venting
- Vent the ducting up or rotate the blower to the back (as shown above) to avoid extra ductwork when on an outside wall.
Delay Auto-Off
- Automatically turns the fan off after a set time (varies by the hood).
LED Light
- Energy efficiency and brighten the cooking area.
Intensive Speed
- Turns on at the highest speed for 10 minutes.
Additional Features
- 600, 395, 295 CFM PRO motor, all-metal housing, and impellers
- 2.8 - 7.5 sones
- 4-speed electronic push control with Variable Air Management technology
- LED lights
- 15-minute auto shut off
- Optional ADA compliant Remote Control (sold separately)
- Vari-duct top or back venting options
- Restaurant Baffle style grease filters
- Convertible to recirculating (sold separately)
- UL Certified
Specifications
GTIN
JAN
B1338701243
EAN
7612985636223
UPC
7612985636223
Capacity
CFM
600 CFM
Sones
7.5
Duct Size
6 Inch
Noise Level
7.5 Sones
Smart
WiFi
No
Dimensions
Height
12 15/16 Inch
Depth
13 3/4 Inch
Width
28 3/8 Inch
Appearance
Blower Type
Internal
Blower Included
Yes
Venting Type
Convertible
Mounting Type
Under Cabinet
Glass Canopy
No
Fingerprint Resistant
No
Color
Stainless Steel
Type
Cabinet Insert
Style
Canopy Pro Style
Product Information
Model
INSD29SSV
Brand
Faber
Features
Number of Fan Speeds
4
Delay Shut-Off
Yes
Lights
LED
Dishwasher Safe Filters
Yes
Filter Type
Baffle
General
Series
Inca SD
Manufacturer
Faber
Technical Details
Approved for Outdoor Use
No
Voltage
120 Volts
Amps
15
Energy Star Rated
No
ADA Compliant
Yes
DETAILS
Venting Type
Convertible
Light
Yes
Variable Air Management
Yes (set to 295, 395, 600 CFM)
Pro Motor with Metal Impellers
Yes
10-minute Intensive Speed
Yes
15-minute Auto Shut-Off
Yes
Power Cord Included
Yes
Built-In Mounting
Yes - Easy Snap Clips
Controls
4 speed electronic w/ white LED
Fan
Yes
Duct Type
Round
Blower Type
Internal
Mounting Type
Under Cabinet
Commercial
No
Vent Location
Top or Rear
CFM
560 CFM
Approved for Outdoor Use
No
Make-Up Air Compliant
Yes
Number of Light Bulbs
2
Light Bulb Type
LED
Number of Fan Speeds
3 or more
Recirculating Kit
Sold Separately
Pro-Style
Yes
Filter Type
Baffle
ELECTRICAL SPECIFICATIONS
Volts
120 V
Amps
15 A
Frequency
60 Hz
TECHNICAL DETAILS
Cutout Width
27 5/8"
Cutout Depth
13 9/16"
Weight
40 lbs
DIMENSIONS
Exterior Width
29"
Duct Diameter
6"
Height
12 15/16"
Depth
13 3/4"
Width
28 3/8"
CERTIFICATIONS
Energy Star
No
cUL
Yes
UL
Yes
WARRANTY
Parts and Labor
1 Year
