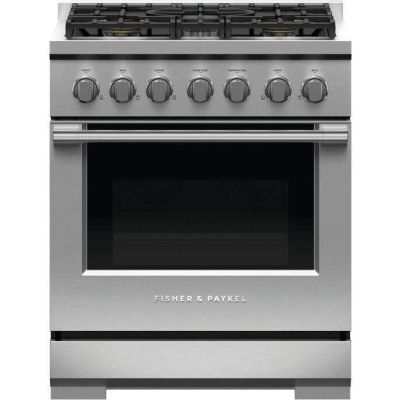

About the Fisher Paykel RGV3305L
- 30 Inch Gas Pro Range with 5 Dual Flow Burners™
- LED Halo-Illuminated Dials
- Continuous Grates and 4.6 cu. ft. Oven Capacity: Liquid Propane
Brand:
Style:
Freestanding
Width:
29 7/8"
Height:
35 3/4"
Depth:
29 1/8"
Capacity:
4.6 Cu. Ft.
Convection:
Yes
Self Clean:
No
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Key Features
Dual Flow Burners™
- 5 Sealed Dual Flow Burners™ deliver cooktop power up to 22,500 BTU.
LED Halo-Illuminated Dials
- LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
Continuous Grates
- Full coverage, deep-platform style grates are designed so heat goes directly onto the pot rather than the grates themselves, for a faster boil and energy efficiency.
Specifications
Electrical Specificaions
Volts
120V
Amps
15A
Cooktop performance
Power Back Left
18,500 BTU
Power Back Right
18,500 BTU
Power Center
23,500 BTU
Power Front Left
22,500 BTU
Power Front Right
18,500 BTU
Sealed Dual Flow Burners™
4
Simmer (All Burners_
140 °F
Total Cooktop Power
78,000 BTU
Max Burner Power
22,500 BTU
Oven Features
Infrared Broiler
Yes
Broil pan
Yes
Warranty
Parts & Labor
2 Year Limited
Controls
Electronic Oven Control
Yes
Internal light
Yes
Metal Illuminated Dials
Yes
Product Dimensions
Depth
29 1/8"
Height
35 3/4"
Width
29 7/8"
AH-R30 Handle Dimensions
Depth
1 11/16"
Height
2 9/16"
Length - Horizontal Handle
29 3/4"
Length - Vertical Handle
N/A
Appearance
Style
Freestanding
Viewing Window
Yes
Stainless Steel Handle
Yes
Color
Stainless Steel
Cooktop
Sealed Burner
Cooktop Control Type
Knobs
Clock
No
Double Oven
No
Drawer
None
Fuel Subtype
Liquid Propane
Fuel Type
Gas
Oven Features
Temperature Probe
No
Timer
No
Steam Clean
No
Convection
Yes
Delay Bake
No
Digital Temperature Display
No
Broiler Element Location
Top
Broiler Pan Included
Yes
Proof Mode
No
Racks
3
Removable Door
Yes
Sabbath Mode
No
Self-Cleaning
No
Glide Rack(s)
Yes
Interior Oven Light
Yes
GTIN
UPC
822843828500
EAN
0822843820078
Technical Details
Voltage
120 Volts
Star-K Certified
No
ADA Compliant
Yes
Amps
15
Oven BTUs
29,000
Product Information
Warranty Terms
2 years ? Fisher & Paykel appliances are backed by a limited two-year warranty. For full warranty details visit https://www.fisherpaykel.com/us/help-and-support/warranty-information#Limite
Brand
Fisher & Paykel
Model
RGV3305L
Dimensions
Width
29 7/8 Inch
Depth
29 1/8 Inch
Height
35 3/4 Inch
Oven performance
Bake
29,000 BTU
Broil
19,000 BTU
Shelf positions
5
Total Capacity (AHAM)
4.6 cu ft
Usable Capacity (AHAM)
3.4 cu ft
Accessories
Square handle option
AH-R30
Smart
WiFi
No
Gas Cooktop Features
Continuous Grates
Yes
French Top
No
Griddle
No
Grill
No
Burner Output
Burner 1 Output
18500
Burner 2 Output
23500
Burner
Power Burner
Yes
Simmer Burner
Yes
Capacity
Primary Oven Capacity
4.6 Cu. Ft.
Number of Burners
4
General
Manufacturer
Fisher Paykel
