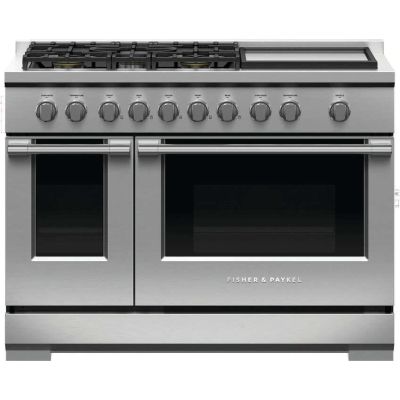

About the Fisher Paykel RGV3485GDN
- 48 Inch Freestanding Dual Fuel Range with 5 Sealed Dual Flow Burners™
- Dual Oven
- 6.9 cu. ft. Total Oven Capacity
- Continuous Grates
- Pyrolytic Self-Clean
- Griddle
- 15 Oven Functions
- Touchscreen Interface
- Halo-Illuminated Dials
- Full-Extension Shelves
Brand:
Style:
Freestanding
Width:
47 7/8"
Height:
36 3/4"
Depth:
29 1/8"
Capacity:
5.3 Cu. Ft.
Convection:
Yes
Self Clean:
No
Griddle:
Yes
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Key Features
5 Sealed Dual Flow Burners™
- Sealed dual flow burners deliver cooktop power up to 19,000 BTU for seriously fast boiling, and precise 140°F full surface, low temperature cooking with the gentlest of flames.
Dual Oven with 6.9 cu. ft. Total Oven Capacity
- Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary - enough room for a 32 lb turkey in one oven, and sides in the other.
Continuous Grates
- Lets you move pots and pans easily from one burner to another, and without spillage.
Pyrolytic Self-Clean
- The oven features a self-cleaning function and self-clean proof side racks, which don't need to be removed when using this function.
Griddle
- A built-in griddle at the stovetop provides 24000 BTU of cooking power.
15 Oven Functions
- 15 oven functions in the main cavity and 11 in the secondary - extensively researched and carefully designed to cater to a broad range of dishes and cooking styles.
Touchscreen Interface
- Provides an intuitive guided cooking experience that helps deliver perfect results. The screen tilts for improved ergonomics and optimal visibility while cooking.
Halo-Illuminated Dials
- Beautiful LED halo-illuminated dials provide information at a glance
Full-Extension Shelves
- Non-tip full-extension shelves for safe removal of hot dishes
Other Features
- Handy food probe helps you monitor your progress
- Each cavity features incandescent lights
- Full extension telescopic racks
- Sabbath Mode
RGV3485GDN Installation Guide
Specifications
Oven Features
Steam Clean
No
Broiler Pan Included
Yes
Air Fry
No
Sous Vide
No
Digital Temperature Display
No
Timer
No
Delay Bake
No
Fast Preheat
No
Convection
Yes
Proof Mode
Yes
Sabbath Mode
Yes
Self-Cleaning
No
Self-Cleaning Type
High Heat
Racks
4
Glide Rack(s)
Yes
Temperature Probe
No
Broiler Element Location
Top and Bottom
Interior Oven Light
Yes
Removable Door
Yes
Appearance
Fingerprint Resistant
No
Fuel Type
Gas
Fuel Subtype
Natural Gas
Style
Freestanding
Color
Stainless Steel
Stainless Steel Handle
Yes
Cooktop
Sealed Burner
Cooktop Control Type
Knobs
Oven Control Type
Knobs
Viewing Window
Yes
Double Oven
Yes
Drawer
None
Clock
No
Shabbos Compliance
Certification
STAR-K
Requires Shabbos Keeper
No
Burner Output
Simmer Burner
Yes
Power Burner
Yes
Burner 1 Output
18,500 BTU (Back Left)
Burner 2 Output
18,500 BTU (Back Right)
Burner 3 Output
23,500 BTU (Center)
Burner 4 Output
18,500 BTU (Front Left)
Burner 5 Output
18,500 BTU (Front Right)
Burner 6 Output
24,000 BTU (Griddle)
Technical Details
Amps
15
ADA Compliant
Yes
LP Conversion
No
Voltage
120 Volts
Gas Cooktop Features
Dishwasher Safe Grates
Yes
Grill
No
Griddle
Yes
French Top
No
Continuous Grates
Yes
Cooktop Accessory
Griddle
Product Information
Brand
Fisher & Paykel
Model
RGV3485GDN
MPN
RDV3-485GD-N
Warranty Terms
2 years ? Fisher & Paykel appliances are backed by a limited two-year warranty. For full warranty details visit https://www.fisherpaykel.com/us/help-and-support/warranty-information#Limite
Dimensions
Width
47 7/8 Inch
Depth
29 1/8 Inch
Height
36 3/4 Inch
Exterior Width
48 Inch
Smart
WiFi
No
Remote Control
Yes
Remote Monitoring
Yes
Capacity
Number of Burners
5
Primary Oven Capacity
5.3 Cu. Ft.
Secondary Oven Capacity
2.4 Cu. Ft.
GTIN
UPC
822843829750
Accessories
Square handle option
AH-R48
AH-R48 Handle Dimensions
Height
2 9/16"
Depth
1 11/16"
Length - Vertical Handle
N/A
Length - Horizontal Handle
31 11/16" (RH Door), 15 39/64" (LH Door)
Rangetop Features
Sealed range top
Yes
Vent trim included
Yes
Sealed Dual Flow Burners™
5
Burner Ratings
Maximum burner power
23,500 BTU
Power back left
18,500 BTU
Power back right
18,500 BTU
Power center
23,500 BTU
Power front left
18,500 BTU
Power front right
18,500 BTU
Power griddle
24,000 BTU
Total cooktop power
121,500 BTU
Capacity
Shelf positions
5
Total capacity
7.7 cu. ft.
Primary oven
5.3 cu. ft.
Secondary oven
2.4 cu. ft.
Oven Features
Electronic oven control
Yes
Full-extension telescopic sliding shelves
Yes
Infrared Broiler
Yes
Internal light
Yes
Titanium coated, illuminated metal dials
Yes
Oven Functions
Bake
Yes
Broil
Yes
Convection bake
Yes
Slow cook
Yes
Oven Performance
Main oven - Bake power
28,000 BTU
Main oven - Broil power
18,500 BTU
Secondary oven - Bake power
18,000 BTU
Secondary Oven Features
3/4 Extension racks
2
Electronic oven control
Yes
Internal light
Yes
Secondary Oven Functions
Bake
Yes
Convection bake
Yes
Number of secondary ovens functions
4
Proof
Yes
Slow cook
Yes
Cleaning
Easy clean porcelain basepan
Yes
Controls
Electric circuit
3 wire
Metal illuminated dials
Yes
Gas Requirements
Fitting and pipe
1/2 NPT, min. 5/8" âˆ... flex line
Supply Pressure (natural gas)
6" to 9" W.C
Power Requirements
Amperage
15A
Rated current
15A
Supply frequency
60Hz
Product Dimensions
Width
47 7/8"
Depth
29 1/8"
Height
35 3/4" - 36 3/4"
Safety
ADA compliant
Yes
Full-extension telescopic sliding shelves
Yes
Recommended Back Guards Ventilation
Combustible situation
BGRV3-3048H
Non combustible situation
BGRV2-3048 / BGRV2-1248
Recommended hood
HCB48-12_N (48" Professional Range Hood, Dual Blower)
General
Manufacturer
Fisher Paykel
