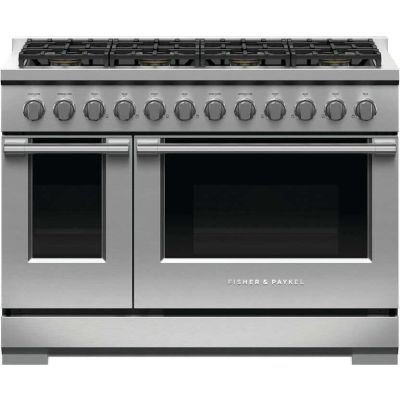

About the Fisher Paykel RGV3488N
- 48 Inch Gas Pro Range with 8 Dual Flow Burners™
- LED Halo-Illuminated Dials
- Continuous Grates 7.7 cu. ft. and Total Capacity: Natural Gas
Brand:
Style:
Freestanding
Width:
47 7/8"
Height:
36 3/4"
Depth:
29 1/8"
Capacity:
5.3 Cu. Ft.
Convection:
Yes
Self Clean:
No
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Key Features
Dual Flow Burners™
- 8 Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU.
LED Halo-Illuminated Dials
- LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
Continuous Grates
- Full coverage, deep-platform style grates are designed so heat goes directly onto the pot rather than the grates themselves, for a faster boil and energy efficiency.
Specifications
Oven Performance
Main oven - Broil power
18,500 BTU
Main oven - Bake power
28,000 BTU
Secondary oven - Bake power
18,000 BTU
Oven Functions
Slow cook
Yes
Convection bake
Yes
Broil
Yes
Bake
Yes
Oven Features
Titanium coated, illuminated metal dials
Yes
Internal light
Yes
Full-extension telescopic sliding shelves
Yes
Electronic oven control
Yes
Capacity
Secondary oven
2.4 cu. ft.
Primary oven
5.3 cu. ft.
Total capacity
7.7 cu. ft.
Shelf positions
5
Burner Ratings
Total cooktop power
158,000 BTU
Power front right
23,500 BTU
Power front left
23,500 BTU
Power front center (2)
18,500 BTU
Power front center
18,500 BTU
Power back right
18,500 BTU
Power back left
18,500 BTU
Power back center
18,500 BTU
Power back center (2)
18,500 BTU
Maximum burner power
23,500 BTU
Rangetop Features
Vent trim included
Yes
Sealed range top
Yes
Sealed Dual Flow Burners™
8
Controls
Metal illuminated dials
Yes
Electric circuit
3 wire
Product Information
Brand
Fisher & Paykel
Model
RGV3488N
Warranty Terms
2 years ? Fisher & Paykel appliances are backed by a limited two-year warranty. For full warranty details visit https://www.fisherpaykel.com/us/help-and-support/warranty-information#Limite
Appearance
Fuel Type
Gas
Fuel Subtype
Natural Gas
Style
Freestanding
Color
Stainless Steel
Stainless Steel Handle
Yes
Cooktop
Sealed Burner
Cooktop Control Type
Knobs
Viewing Window
Yes
Double Oven
Yes
Drawer
None
Clock
No
Oven Control Type
Knobs
Fingerprint Resistant
No
Dimensions
Width
47 7/8 Inch
Depth
29 1/8 Inch
Height
36 3/4 Inch
Exterior Width
48 Inch
Smart
WiFi
No
Capacity
Number of Burners
8
Primary Oven Capacity
5.3 Cu. Ft.
Secondary Oven Capacity
2.4 Cu. Ft.
Burner Output
Burner 1 Output
18,500 BTU (Back Center)
Burner 2 Output
18,500 BTU (Back Center 2)
Burner 7 Output
23,500 BTU (Front Left)
Burner 5 Output
18,500 BTU (Front Center)
Burner 3 Output
18,500 BTU (Back Left)
Power Burner
Yes
Simmer Burner
Yes
Burner 8 Output
23,500 BTU (Front Right)
Burner 6 Output
18,500 BTU (Front Center 2)
Burner 4 Output
18,500 BTU (Back Right)
Gas Cooktop Features
Continuous Grates
Yes
Grill
No
Griddle
No
French Top
No
Cooktop Accessory
No Accessory
Dishwasher Safe Grates
Yes
Oven Features
Digital Temperature Display
No
Timer
No
Delay Bake
No
Convection
Yes
Proof Mode
Yes
Self-Cleaning
No
Steam Clean
No
Racks
4
Temperature Probe
No
Broiler Pan Included
Yes
Interior Oven Light
Yes
Removable Door
Yes
Sous Vide
No
Air Fry
No
Fast Preheat
No
Glide Rack(s)
Yes
Shabbos Compliance
Sabbath Mode
Yes
Requires Shabbos Keeper
No
Certification
STAR-K
Technical Details
Star-K Certified
No
ADA Compliant
Yes
Oven BTUs
29,000
Amps
15
Voltage
120 Volts
LP Conversion
No
GTIN
UPC
822843829736
Cleaning
Easy clean porcelain basepan
Yes
Accessories
Square handle option
AH-R48
Secondary Oven Features
3/4 Extension racks
2
Electronic oven control
Yes
Internal light
Yes
Secondary Oven Functions
Bake
Yes
Convection bake
Yes
Number of secondary ovens function
4
Proof
Yes
Slow cook
Yes
Gas Requirements
Fitting and pipe
1/2 NPT, min. 5/8" âˆ... flex line
Supply Pressure (natural gas)
6" to 9" W.C
Power Requirements
Amperage
15A
Rated current
15A
Supply frequency
60Hz
Product Dimensions
Width
47 7/8"
Depth
29 1/8"
Depth (excluding handles)
29 1/8"
Height
35 3/4" - 36 3/4"
Recommended Back Guards Ventilation
Combustible situation
BGRV3-3048H
Non combustible situation
BGRV2-3048 / BGRV2-1248
Recommended hood
HCB48-12_N (48" Professional Range Hood, Dual Blower)
Safety
ADA compliant
Yes
Full-extension telescopic sliding shelves
Yes
AH-R48 Handle Dimensions
Height
2 9/16"
Depth
1 11/16"
Length - Vertical Handle
N/A
Length - Horizontal Handle
31 11/16" (RH Door), 15 39/64" (LH Door)
