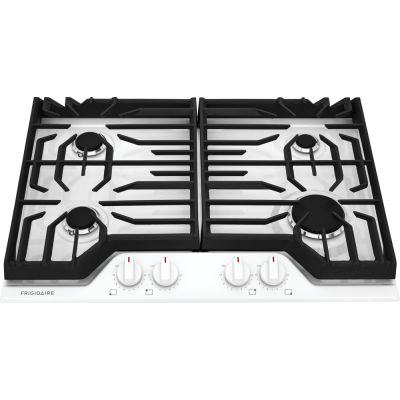

About the Frigidaire FCCG3027AW
- 30 Inch Gas Cooktop with 4 Sealed Burners
- Continuous Grates
- Spill Safe® Cooktop
- Dishwasher-Safe Burners Caps
- Frigidaire® Fit Promise
- Simmer Burner
- Power Burner
- ADA Compliant: White
Brand:
Finish:
White
Fuel Type:
Gas
Style:
Sealed Burner
Width:
30"
Height:
2 7/16"
Depth:
21"
Cutout Width:
29 5/16"
Cutout Depth:
20"
Volts:
120 Volts
Amps:
5
Frigidaire's 30" gas cooktop is a perfect addition to any kitchen. This cooktop can be installed over a wall oven and is part of Frigidaire's Fit Promise program, which ensures that your new cooktop will fit your existing countertop cut-out of the same width and configuration. It has 4-sealed burners with a cooking power range of 5,000 to 16,000 BTU. Great for high-powered cooking, sauteing, simmering, or making delicate sauces. The dishwasher-safe continuous cast-iron cooking grates make transferring pots and pans between burners effortless.
About Frigidaire
Frigidaire is an American brand of consumer and commercial appliances. Frigidaire offers consumers a complete line of room air conditioners, dehumidifiers, portable air conditioners and ductless mini-split air conditioners designed with the latest in technology to meet every need. The products provide consumers with fresh designs and features that work with any décor and meet the highest of expectations in both functionality and quality.
Key Features
4 Sealed Burners
- From boil to simmer, get the job done right with the 16,000 BTU power burner and the 5,000 BTU burner, perfect for delicate sauces.
Continuous Edge-to-Edge Grates
- Move heavy pots and pans without lifting with continuous, corner-to-corner grates.
Spill Safe® Cooktop
- Clean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes.
Dishwasher-Safe Burners Caps
- Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
Simmer Burner
- Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.
Power Burner
- Boil water and prepare meals quickly with the 16,000 BTU burner.
Approved Over Frigidaire® Electric Wall Ovens
- Cooktops are approved for installation above any of our Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
Other Features
- Frigidaire® Fit Promise
- LP Conversion Kit Included
- CSA Listed
- UL Listed
- ADA Compliant
FCCG3027AW Complete Owners Guide
Key Features
Get meals on the table faster with the Power Burner
Boil water and prepare meals quickly with the 16,000 BTU burner.
Burners offer the versatility you need
From boil to simmer, get the job done right with the 16,000 BTU power burner and the 5,000 BTU burner, perfect for delicate sauces.
Simmer Burner delivers low, gentle heat
Simmer burner delivers a low heat that allows you to prepare delicate foods or sauces without burning or scorching the bottom.
Dishwasher Safe Burner Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
Peace of Mind with the Frigidaire Fit Promise
We promise that your new 30" Frigidaire gas cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100. * Via mail-in rebate. See https://www.Frigidaire.com/FitPromise for additional information.
Specifications
GTIN
UPC
012505516528
EAN
0012505516528
Dimensions
Cutout Width
29 5/16 Inch
Actual Height
2 7/16 Inch
Actual Depth
21 Inch
Actual Width
30 Inch
Cutout Depth
20 Inch
Burner Output
Burner 4 Output
9500
Power Burner
Yes
Simmer Burner
Yes
Burner 3 Output
9500
Burner 2 Output
5000
Burner 1 Output
16000
Appearance
Fuel Subtype
Natural Gas
Fuel Type
Gas
Fingerprint Resistant
No
Glass Surface
No
Trim Color
White
Surface Color
White
Color
White
Controls Location
Front
Number of Burners
4
Control Type
Knobs
Type
Drop-In
Style
Sealed Burner
Product Information
Model
FCCG3027AW
Brand
Frigidaire
Warranty Terms
1 year ? Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
Cooktop Specifications
Right Front Element Burner
16,000 BTU
Grate Material
Cast-Iron
Grate Quantity
2
Grate Style
Continuous
Sealed Burners
Yes
Frigidaire Fit Promise
Yes
Left Rear Element Burner
9,500 BTU
Left Front Element Burner
9,500 BTU
Right Rear Element Burner
5,000 BTU
Warranty
Warranty - Labor
1 Year
Warranty - Parts
1 Year
Certifications and Approvals
ADA Compliant
Yes
Safety Certifications and Approvals
UL Listed
Yes
CSA Listed
Yes
Installation
Power Supply Connection Location
Top Right
LP Conversion Kit Included
Yes
Installed Over a Wall Oven
Yes
Gas Supply Connection Location
Top Right
Power Cord Included
Yes
Electrical Specifications
Voltage Rating
120 V
Minimum Circuit Required
5 Amps
Dimensions
Maximum Cutout Depth
20"
Maximum Cutout Width
29 5/16"
Minimum Cutout Depth
19"
Minimum Cutout Width
27 1/4"
Cutout Height
7 1/2"
Depth
21"
Width
30"
Height
2 7/16"
Technical Details
LP Conversion
Yes
Amps
5
Voltage
120 Volts
ADA Compliant
Yes
Smart
Bluetooth
No
WiFi
No
Shabbos Compliance
Sabbath Mode
No
Gas Cooktop Features
Continuous Grates
Yes
Cooktop Accessory
No Accessory
Dishwasher Safe Grates
Yes
General
Manufacturer
Frigidaire
