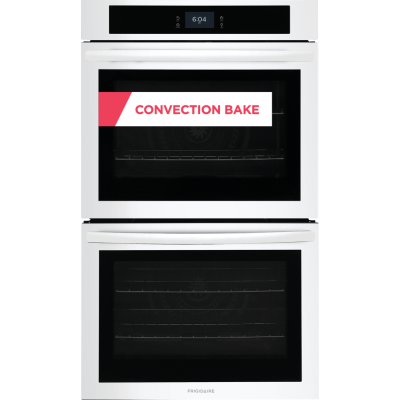

About the Frigidaire FCWD3027AW
- 30 Inch Double Convection Electric Wall Oven with 10.6 Cu. Ft. Capacity
- Fan Convection
- Self Clean
- Keep Warm
- Cook Time Setting
- Delay Start
- Convection Bake
- Control Lock
- Sabbath Mode: White
Brand:
Oven Style:
Double
Capacity:
10.6 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Color:
White
Width:
29 7/8"
Height:
50 3/4"
Cutout Width:
28 1/2"
Cutout Height:
48 7/8"
Fuel Type:
Electric
Volts:
240 Volts
Amps:
40
With a capacity of 10.6 cubic feet, Frigidaire's double electric wall oven allows you to cook more at once and achieve excellent results. Get faster, more even multi-rack baking with a powerful convection fan that evenly circulates hot air throughout the oven. When it's clean-up time, simply select the self-clean option and have the oven do all the hard work for you. It's never been easier!
About Frigidaire
When you select a home appliance from Frigidaire, you've chosen a product of exceptional performance, convenience, and style, an appliance that has been designed to work in harmony with the way you live. Frigidaire is one of the leading suppliers of quality home appliances and they take pride in offering superior products and services to their customers. Through meaningful innovations, Frigidaire has humanized its technology to create uncluttered appliance designs, intuitive controls, and features that are as useful as they are smart.
Key Features
Fan Convection
- Achieve better baking results with Fan Convection
Self Clean
- With Self Clean, your oven cleans itself so you don't have to; available in convenient 2, 3, and 4-hour cycles
Keep Warm Setting
- Meals stay warm and are ready to serve when you are, using the Keep Warm setting
Cook Time Setting
- Allows you to program how long your oven should cook before turning off
Customizable Broil Temperatures
- Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees
Touch Screen Controls
- Features a responsive 4.3 inch, full color, capacitive touch digital control panel
Capacity
- 10.6 Cu. Ft.
Other Features
- Delay Start
- Convection Bake
- Control Lock
- Hidden Bake Element
- Frigidaire Fit Promise
- Sabbath Mode
FCWD3027AW Complete Owners Guide
Key Features

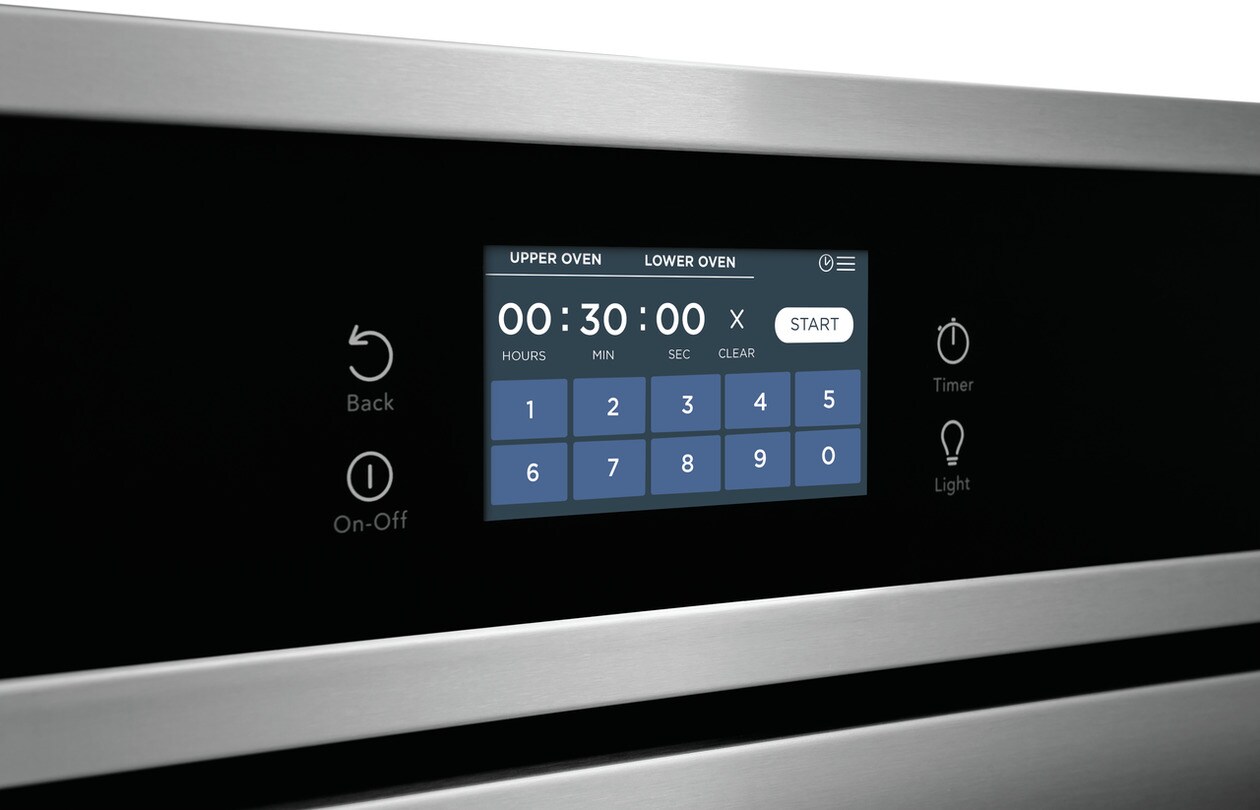

Your oven cleans itself - so you don't have to with Self Clean
Self clean options available in convenient 2, 3 and 4-hour cycles.
Peace of Mind with our Frigidaire Fit Promise
We promise that your new 30" Frigidaire double wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. * Up to three hundred dollars via mail-in rebate. See https://www.frigidairefitpromise.com for additional information.

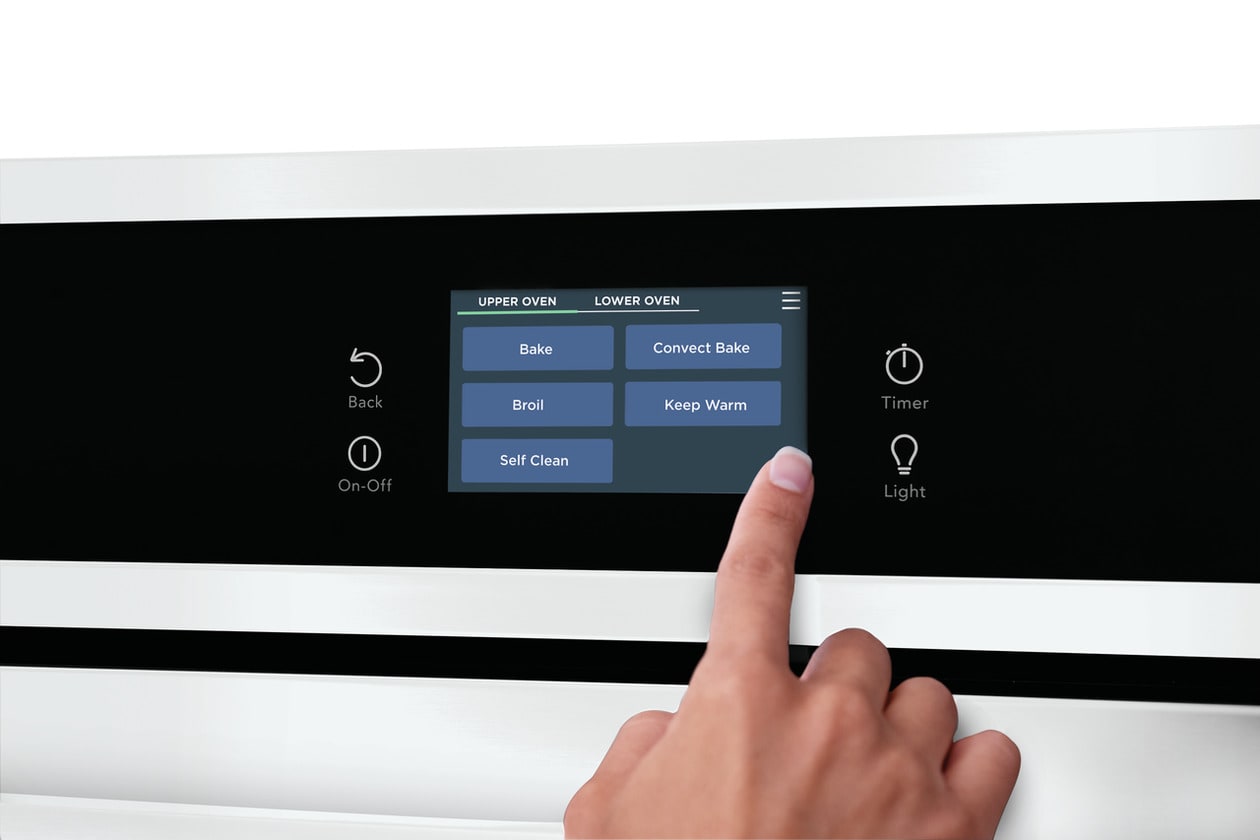

Premium Touch Screen Control Panel
Features a responsive 4.3 inch, full color, capacitive touch digital control panel.

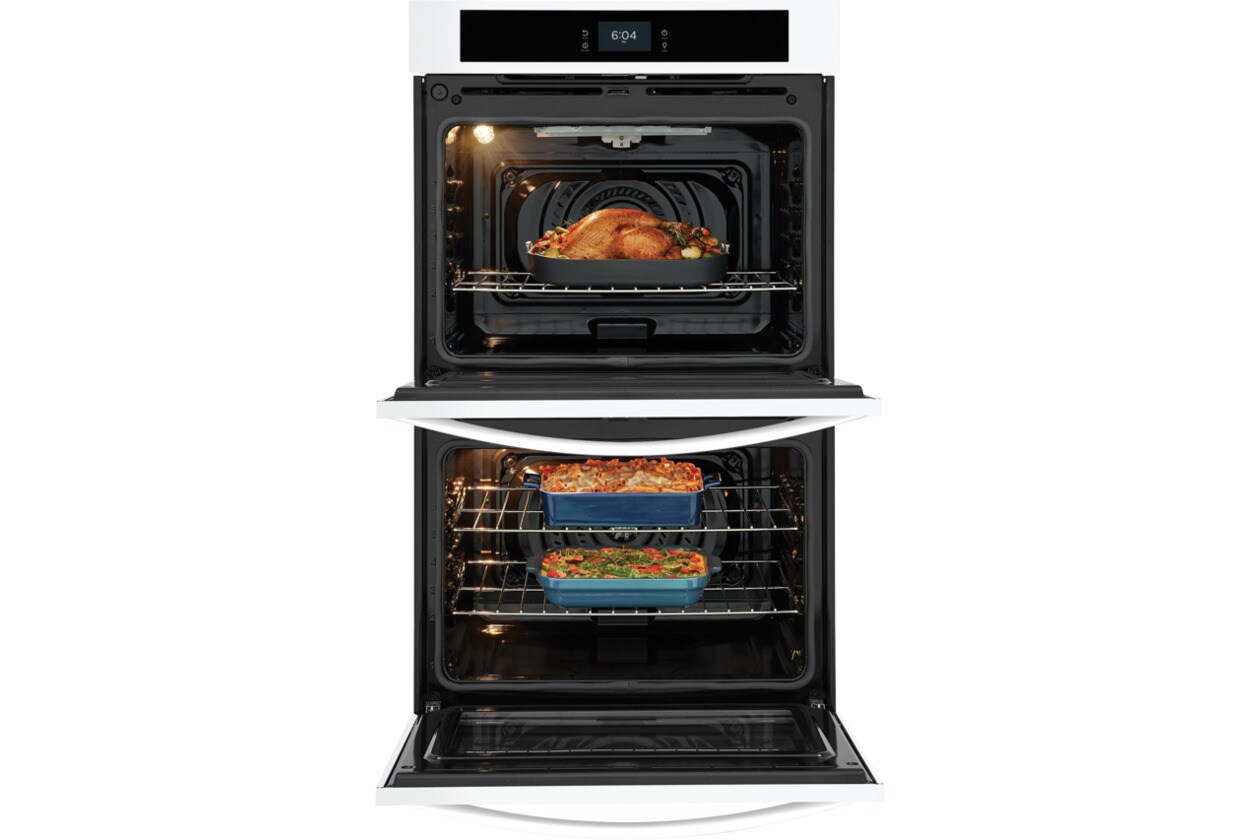

Extra Large Oven Capacity
Cook more at once with a combined 10.6 cu.ft. of oven capacity.
Get that perfect finish with customizable Broil Temperatures
Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.

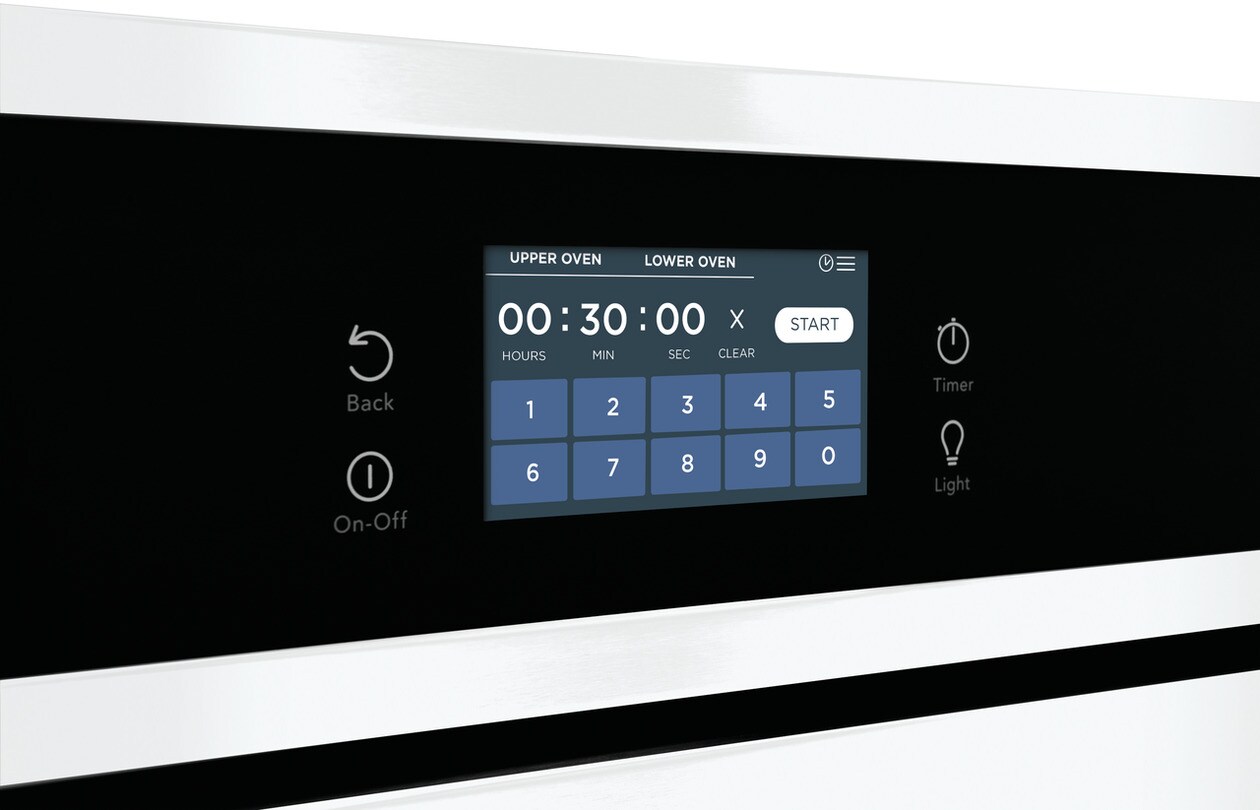

Convenient Cook Time Setting
Allows you to program the amount of time you want your oven to cook and then turn off.
Specifications
Dimensions
Maximum Cutout Height
50 1/4"
Maximum Cutout Width
29"
Minimum Cutout Height
48 7/8"
Minimum Cutout Width
28 1/2"
Upper Oven Interior (W x D x H)
25 2/10" x 19 7/8" x 18 1/8"
Width
29 7/8"
Depth
25 3/16"
Depth With Door 90° Open
48 3/16"
Depth With Handle
27 6/10"
Height
50 3/4"
Lower Oven Interior (W x D x H)
25 2/10" x 19 7/8" x 18 1/8"
Oven Specifications
Kitchen Timer
Yes
Number of Rack Positions
6
Oven Light Type
Halogen
Oven Lower Capacity
5.3 Cu. Ft.
Oven Upper Capacity
5.3 Cu. Ft.
Preheat
Yes
Rack Position Type
Embossed
Rack Type
Flat
Frigidaire Fit Promise
Yes
Display Type
Capacitive Touch
Convection Type
Fan
Broil
Yes
Control Location
Front
Convection
Yes
Rack Type Quantity
4
Timer On / Off
Yes
Total Capacity
10.6 Cu. Ft.
Appearance
Style
Double
Viewing Window
Yes
Control Type
Touch Sensor
Color
White
Clock
Yes
Door Style
Drop Down
Drawer
None
Microwave
No
Fingerprint Resistant
No
Fuel Type
Electric
Oven Features
Temperature Probe
No
Timer
Yes
Steam Clean
No
Convection
Yes
Convection Type
Standard
Delay Bake
Yes
Digital Temperature Display
Yes
Broiler
Yes
Broiler Element Location
Top
Proof Mode
No
Self-Cleaning
Yes
Self-Cleaning Type
High Heat
Fast Preheat
No
Interior Oven Light
Yes
GTIN
UPC
012505514913
Capacity
Upper Capacity
5.3 Cu. Ft.
Capacity
10.6 Cu. Ft.
Oven Racks
4
Lower Capacity
5.3 Cu. Ft.
Technical Details
Voltage
240 Volts
ADA Compliant
No
Amps
40
Product Information
Warranty Terms
1 year ? Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
Brand
Frigidaire
Model
FCWD3027AW
Electrical Specifications
Voltage Rating
240 V
Minimum Circuit Required
40 Amps
Amps @ 240 Volts
40 Amps
Connected Load @ 240V
7.4 kW
Warranty
Labor
1 Year
Parts
1 Year
Safety Certifications and Approvals
CSA Listed
Yes
RoHS
Yes
UL Listed
Yes
Smart
WiFi
No
Bluetooth
No
Dimensions
Cutout Height
48 7/8 Inch
Cutout Width
28 1/2 Inch
Depth to Handle
27 6/10 Inch
Exterior Depth
25 3/16 Inch
Exterior Height
50 3/4 Inch
Exterior Width
29 7/8 Inch
Shabbos Compliance
Sabbath Mode
Yes
General
Manufacturer
Frigidaire
