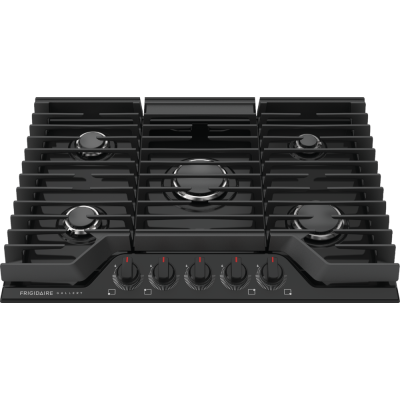

About the Frigidaire GCCG3048AB
- 30 Inch Gas Cooktop with 5 Sealed Burners
- Continuous Grates
- Backlit LED Knobs
- Dishwasher Safe Burners Caps
- 18
- 000 BTU Burner
- Simmer Burner
- CSA Listed: Black
Brand:
Finish:
Black
Fuel Type:
Gas
Style:
Sealed Burner
Width:
30"
Height:
2 7/16"
Depth:
21"
Cutout Width:
29 5/16"
Cutout Depth:
20"
Volts:
120 Volts
Amps:
5
Frigidaire's 30" drop-in gas cooktop is a perfect addition to any kitchen. It's approved for installation over a wall oven, so you can complete your kitchen with Frigidaire's Gallery Series Style. The cooktop has 5-sealed burners with a cooking power range of 5,000 to 18,000 BTU. Great for high-powered cooking, sauteing, simmering or making delicate sauces. The dishwasher-safe continuous cast-iron cooking grates make transferring pots and pans between burners effortless.
About Frigidaire
Frigidaire is an American brand of consumer and commercial appliances. Frigidaire offers consumers a complete line of room air conditioners, dehumidifiers, portable air conditioners and ductless mini-split air conditioners designed with the latest in technology to meet every need. The products provide consumers with fresh designs and features that work with any décor and meet the highest of expectations in both functionality and quality.
Key Features
5 Sealed Burners
- From boil to simmer, get the job done right with the 18,000 BTU power burner and the 5,000 BTU burner, perfect for delicate sauces.
Continuous Cast-Iron Grates
- Move heavy pots and pans without lifting with continuous, corner-to-corner grates.
Backlit LED Knobs
- Backlit LED knobs light up when the cooktop is in use.
Dishwasher-Safe Burners Caps
- Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
18,000 BTU Burner
- Power Burner offers more power and faster boil time.
Simmer Burner
- Perfect for delicate foods and sauces.
Other Features
- Frigidaire Fit Promise
- LP Conversion Kit Included
- CSA Listed
Key Features
Get to mealtime faster with the Quick Boil Burner
Experience faster boil times and more powerful cooking with the 18,000 BTU burner.
Bright, backlit LED Knobs
Backlit LED knobs light up when the cooktop is in use.
Specifications
Smart
WiFi
No
Bluetooth
No
Cooktop Performance
Center Front Element Burner
18,000 BTU
Left Front Element Burner
9,500 BTU
Left Rear Element Burner
7,500 BTU
Right Rear Element Burner
5,000 BTU
Right Front Element Burner
12,000 BTU
Cooktop Specifications
Grate Style
Continuous
Grate Quantity
3
Grate Material
Cast Iron
Frigidaire Fit Promise
Yes
Cooking Surface Type
Gas
Control Location
Front
Backlit Knobs
Yes
Certifications and Approvals
UL Listed
Yes
CSA Listed
Yes
ADA Compliant
Yes
Warranty
Warranty - Parts
1 Year
Warranty - Labor
1 Year
Dimensions
Width
30"
Minimum Cutout Width
27 1/4"
Minimum Cutout Depth
19"
Maximum Cutout Width
29 5/16"
Maximum Cutout Depth
20"
Height
2 7/16"
Depth
21"
Cutout Height
7 1/2"
Product Information
Warranty Terms
1 year ? Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
Brand
Frigidaire
Model
GCCG3048AB
Technical Details
Voltage
120 Volts
Amps
5
ADA Compliant
Yes
LP Conversion
Yes
GTIN
UPC
012505516559
EAN
0012505516559
Appearance
Type
Drop-In
Trim Color
Black
Surface Color
Black
Style
Sealed Burner
Color
Black
Control Type
Knobs
Controls Location
Front
Number of Burners
5
Glass Surface
No
Fuel Type
Gas
Fuel Subtype
Natural Gas
Fingerprint Resistant
No
Installation
Power Supply Connection Location
Top Right
Power Cord Included
Yes
LP Conversion Kit Included
Yes
Installed Over a Wall Oven
Yes
Gas Supply Connection Location
Top Right
Electrical Specifications
Voltage Rating
120V
Minimum Circuit Required
5 Amps
Gas Cooktop Features
Continuous Grates
Yes
Cooktop Accessory
No Accessory
Burner Output
Burner 5 Output
18000
Burner 4 Output
7500
Burner 3 Output
9500
Burner 2 Output
5000
Burner 1 Output
12000
Simmer Burner
Yes
Dimensions
Actual Width
30 Inch
Actual Height
2 7/16 Inch
Actual Depth
21 Inch
Cutout Width
29 5/16 Inch
Cutout Depth
20 Inch
Shabbos Compliance
Sabbath Mode
No
General
Manufacturer
Frigidaire Gallery
