About the Frigidaire GCCG3648AB
- 36 Inch Gas Cooktop with 5 Sealed Burners
- Continuous Grates
- Spill Safe® Cooktop
- Backlit LED Knobs
- Dishwasher-Safe Burners Caps
- Frigidaire® Fit Promise
- Quick Boil Burner
- Simmer Burner
- ADA Compliant: Black
Brand:
Finish:
Black
Fuel Type:
Gas
Style:
Sealed Burner
Width:
36"
Height:
2 7/16"
Depth:
21"
Cutout Width:
35 5/8"
Cutout Depth:
20"
Volts:
120 Volts
Amps:
5

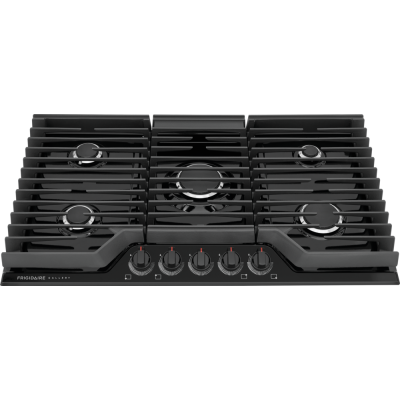

Frigidaire's 36" gas cooktop is a perfect addition to any kitchen. This cooktop can be installed over a wall oven, allowing you to complete your kitchen with Frigidaire's Gallery Series Style. It has 5-sealed burners with a cooking power range of 5,000 to 18,000 BTU. Great for high-powered cooking, sauteing, simmering, or making delicate sauces. The dishwasher-safe continuous cast-iron cooking grates make transferring pots and pans between burners effortless.
About Frigidaire
Frigidaire is an American brand of consumer and commercial appliances. Frigidaire offers consumers a complete line of room air conditioners, dehumidifiers, portable air conditioners and ductless mini-split air conditioners designed with the latest in technology to meet every need. The products provide consumers with fresh designs and features that work with any décor and meet the highest of expectations in both functionality and quality.
Key Features
5 Sealed Burners
- From boil to simmer, get the job done right with the 18,000 BTU power burner and the 5,000 BTU burner, perfect for delicate sauces.
Continuous Edge-to-Edge Grates
- Move heavy pots and pans without lifting with continuous, corner-to-corner grates.
Spill Safe® Cooktop
- Clean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes.
Backlit LED Knobs
- Backlit LED knobs light up when the cooktop is in use.
Dishwasher-Safe Burners Caps
- Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
Quick Boil Burner
- Experience faster boil times and more powerful cooking with the 18,000 BTU burner.
Simmer Burner
- Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.
Approved Over Frigidaire® Electric Wall Ovens
- Cooktops are approved for installation above any of Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
Other Features
- Frigidaire® Fit Promise
- LP Conversion Kit Included
- CSA Listed
- UL Listed
- ADA Compliant
Key Features
Get to mealtime faster with the Quick Boil Burner
Experience faster boil times and more powerful cooking with the 18,000 BTU burner. Backlit LED knobs light up when the cooktop is in use.
Flexible Five Burner Cooktop
This cooktop features five burners designed to fit all of your cooking needs, including a 5,000 BTU simmer burner perfect for delicate foods and our powerful 18,000 BTU Quick Boil Burner that gets meals on the table, faster.
Bright, backlit LED Knobs
Backlit LED knobs light up when the cooktop is in use.
Low Simmer Burner
Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.
Dishwasher Safe Burners Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
Specifications
Dimensions
Cutout Width
35 5/8 Inch
Cutout Depth
20 Inch
Actual Width
36 Inch
Actual Depth
21 Inch
Actual Height
2 7/16 Inch
Gas Cooktop Features
Continuous Grates
Yes
Dishwasher Safe Grates
Yes
Cooktop Accessory
No Accessory
Technical Details
ADA Compliant
Yes
LP Conversion
Yes
Amps
5
Voltage
120 Volts
Burner Output
Burner 5 Output
18000
Burner 4 Output
9500
Simmer Burner
Yes
Power Burner
Yes
Burner 1 Output
12000
Burner 2 Output
5000
Burner 3 Output
9500
Shabbos Compliance
Sabbath Mode
No
Smart
WiFi
No
Bluetooth
No
GTIN
UPC
012505516566
EAN
0012505516566
Product Information
Warranty Terms
1 year ? Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
Brand
Frigidaire
Model
GCCG3648AB
Electrical Specifications
Gas Supply Connection Location
Top Right
Installed Over a Wall Oven
Yes
LP Conversion Kit Included
Yes
Maximum Cutout Depth
20"
Minimum Cutout Width
33 7/8"
Cutout Height
7 1/2"
Maximum Cutout Width
35 5/8"
Minimum Circuit Required
5 Amps
Voltage Rating
120 V
Installation
Minimum Cutout Depth
19"
Power Cord Included
Yes
Power Supply Connection Location
Right Center
Safety Certifications and Approvals
Gas Supply Connection Location
Top Right
Installed Over a Wall Oven
Yes
LP Conversion Kit Included
Yes
CSA Listed
Yes
UL Listed
Yes
Certifications and Approvals
Power Supply Connection Location
Right Center
ADA Compliant
Yes
Warranty
CSA Listed
Yes
UL Listed
Yes
Warranty - Parts
1 Year
Warranty - Labor
1 Year
Specifications:
Right Front Element Burner
12,000 BTU
Dimensions
Right Front Element Burner
12,000 BTU
Right Rear Element Burner
5,000 BTU
Left Front Element Burner
9,500 BTU
Left Rear Element Burner
9,500 BTU
Center Front Element Burner
18,000 BTU
Depth
21"
Cutout Height
7 1/2"
Maximum Cutout Width
35 5/8"
Minimum Cutout Width
33 7/8"
Maximum Cutout Depth
20"
Minimum Cutout Depth
19"
Width
36"
Height
2 7/16"
Cooktop Specifications
Cooking Surface Type
Gas
Grate Material
Cast Iron
Grate Quantity
3
Grate Style
Continuous
Backlit Knobs
Yes
Right Rear Element Burner
5,000 BTU
Left Front Element Burner
9,500 BTU
Left Rear Element Burner
9,500 BTU
Center Front Element Burner
18,000 BTU
Appearance
Control Type
Knobs
Controls Location
Front
Color
Black
Surface Color
Black
Trim Color
Black
Glass Surface
No
Fingerprint Resistant
No
Type
Drop-In
Style
Sealed Burner
Fuel Type
Gas
Fuel Subtype
Natural Gas
Number of Burners
5
General
Manufacturer
Frigidaire Gallery
