About the Frigidaire PCCE3080AF

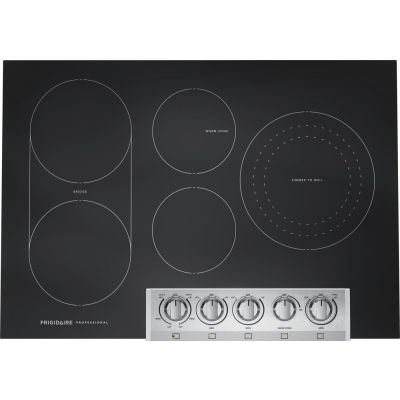

- Frigidaire PCCE3080AF Electric Cooktop with 5 Radiant Elements
- 3200 Watt Element
- Even Temp™ Element
- Bridge Element
- Backlit LED Knobs
- Keep Warm Zone
- ADA Compliant: 30 Inch Width
Brand:
Finish:
Stainless Steel
Fuel Type:
Electric
Style:
Smoothtop
Width:
30 5/8"
Height:
2 5/8"
Depth:
21 3/8"
Cutout Width:
28 1/2"
Cutout Depth:
19 5/8"
Volts:
240 Volts
Amps:
40
The Frigidaire Professional 30" Radiant Cooktop provides consistent results with an Even Temp™ element that reduces hot spots and delivers even heat across the entire cooking surface. The convenient bridge element allows you to connect two elements to create a larger cooking surface, perfect for a griddle or large pan. And get peace of mind that the cooktop will fit your existing cutout with our Frigidaire Fit Promise.
About Frigidaire
Frigidaire kitchen and laundry collections help you get things done in less time and with less effort, so you can get on to the things you really love. Their cooking, dishwashing, refrigeration and laundry appliances have style and design features that don't just look great, but help the appliance perform better and give you better results. They are built to last and designed to perform well over time. Also, they're designed to help you get things done with as little effort as possible.
Key Features
Even Temp™ Element
- Heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.
Bridge Element
- Connect two elements to create a larger cooking surface, perfect for griddles or large pans.
Backlit LED Knobs
- Lights up when an element is on, so you know when your cooktop is in use.
Keep Warm Zone
- Keeps dishes warm while the rest finish so that your entire meal is ready when you are.
Additional Features
- 5 Elements
- 3200 Watt Element
- ADA Compliant
Key Features Even Temp™ Even Temp™ ensures heat is evenly distributed across its surface, minimizing hot spots and cold areas in your pan for consistent cooking.
Specifications
Product Information
Warranty Terms
1 year ? Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
Model
PCCE3080AF
Brand
Frigidaire
Smart
Remote Diagnostics
No
Remote Monitoring
No
Remote Control
No
Google Home
No
Alexa
No
Bluetooth
No
WiFi
No
Shabbos Compliance
Certification
None
Sabbath Mode
No
Dimensions
Cutout Depth
19 5/8 Inch
Cutout Width
28 1/2 Inch
Actual Height
2 5/8 Inch
Actual Depth
21 3/8 Inch
Actual Width
30 5/8 Inch
Appearance
Downdraft Venting
No
Fingerprint Resistant
No
Glass Surface
Yes
Surface Color
Black
Color
Stainless Steel
Controls Location
Front
Control Type
Knobs
Type
Drop-In
Style
Smoothtop
Number of Burners
5
Fuel Type
Electric
Burner
Simmer Burner
No
Power Burner
Yes
Burner 5 Output
100
Burner 4 Output
1200
Burner 3 Output
1800
Burner 2 Output
1800
Burner 1 Output
3200
GTIN
EAN
0810143400144
UPC
810143400144
Technical Details
Voltage
240 Volts
Amps
40
ADA Compliant
Yes
Electric Cooktop Features
Power Boil
Yes
Keep Warm Setting
Yes
Melt Setting
No
Hot Surface Indicator Light
Yes
Dimensions
Minimum Cutout Depth
19 5/8"
Minimum Cutout Width
28 1/2"
Cutout Height
5"
Depth
21 3/8"
Width
30 5/8"
Height
2 5/8"
Maximum Cutout Width
29 7/8"
Maximum Cutout Depth
20 1/2"
Cooktop Performance
Keep Warm Burner Location
Center Rear
Center Rear Element Burner
100 Watts
Center Front Element Burner
1200 Watts
Left Rear Element Burner
1800 Watts
Left Front Element Burner
1800 Watts
Right Front Element Burner
3200 Watts
Cooktop Specifications
Frigidaire Fit Promise
Yes
Backlit Knobs
Yes
Control Location
Front
Cooking Surface Type
Electric
Warranty
Warranty - Labor
1 Year
Warranty - Parts
1 Year
Certifications and Approvals
ADA Compliant
Yes
UL Listed
Yes
CSA Listed
Yes
Installation
Installed Over a Wall Oven
Yes
Electrical Specifications
Voltage Rating
240
Minimum Circuit Required
40 Amps
General
Manufacturer
Frigidaire Professional
