About the GE AVVL12DMXWA

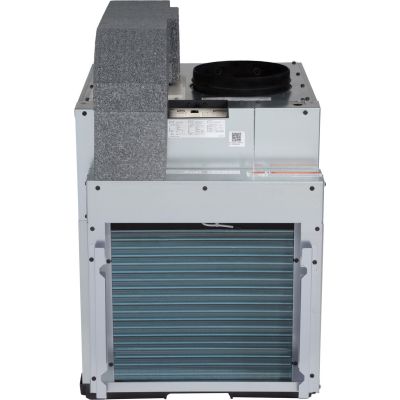

- GE AVVL12DMXWA Vertical Zoneline V12 Inverter Air Conditioner with Heat Pump
- R454B Refrigerant
- Insta - Platform™
- Self-Contained Drainage System
- Ultra-Quiet
- Reverse Cycle Defrost and Corrosion Protection: 208/230V
Brand:
BTU:
12,000 BTU
Height:
36 1/2"
Width:
23 5/8"
Depth:
28 3/8"
Volts:
230/208 Volts
Amps:
4.7 Amps
Energy Star Rated:
No
EER:
12
The GE Zoneline Vertical Packaged Terminal Heat Pump has excellent COP (Coefficient of Performance) ratings. This is the measurement of the efficiency of the heat pump output compared to electric resistance heat. In addition to comparing heat pump output versus electric heat, this number also allows a direct comparison to other heat pumps with the same range capacity. The AVVL12DMXWA features Heat pump capacity range of 4,500 - 13,000 BTUs and a COP of 3.5 @47°F. The AVVS12DCXWA Ultimate V12 Series also meets new AHRI Standards and are rated with the new EER2, SEER2 and HSPF2 ratings. It features 12.0 EER2, 16.5 SEER2 and 7.1 HSPF2 ratings. This unit is also WiFi ready with the GE's Smart HQ WiFi.
Key Features
Insta-Platform™
- One-piece design fully integrates with the wall plenum and aligns for a tight seal. Eliminates need for a customized platform construction on site
Self-Contained Drainage System
- Easy installation and simple chassis removal while leaving plumbing completely intact
Fast-Connect Plumbing
- Thoughtful design enables platform build and rough plumbing completed in only minutes
Quick-Install Plenum
- Plenum is easily installed from the interior of building, without the need for exterior building access* (*caulking required)
- Self-aligning, lock in place system proof when the chassis is placed on the platform
Onboard Diagnostics
- Electronic controls give clear and fast
Anti-Corrosion Design
- Exclusive rust-proof basepan and bulkhead provide another level of corrosion protection
Ultra-Quiet
- Delivers quiet cooling power with a smooth sound for a good night’s sleep
SmartHQ™ Wifi Ready (Requires Subscription)
- An optional WiFi module gives property managers the ability to oversee units, increasing productivity and enhancing guests’ experience
California residents see Prop 65 WARNINGS WARNING: This item can expose you to chemicals, which are known to the State of California to cause cancer and / or birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov
Specifications
Dimensions
Height
36 1/2 Inch
Depth
28 3/8 Inch
Width
23 5/8 Inch
Product Information
Model
AVVL12DMXWA
Brand
GE
Dimension and Weight
Weight
137 lbs.
Height
36 1/2"
Depth
28 3/8"
Width
23 5/8"
Warranty
Parts Warranty
Limited 2-year entire appliance
Labor Warranty
Limited 1-year entire appliance
Capacity
Cooling Capacity (BTU)
12,000 BTU
Heating Capacity (BTU)
11,200 BTU
Smart
WiFi
Yes
Technical Details
Voltage
230/208 Volts
ADA Compliant
No
Energy Star Rated
No
Features
Refrigerant Type
R-454B
Indoor CFM, Low
380 CFM
Indoor CFM, High
465 CFM
Energy Efficiency Rating
12
Maximum Cooling Watts
1,050 Watts
Maximum Cooling Amps
4.7 Amps
Power Rating
Cooling BTUH Range (@95F Outdoor)
5200 - 16,200
CFM @ 0.1 ESP Dry
380 (low fan), 465 (high fan)
Cooling BTUH (MAX - 115F)
11200
Cooling - Watts
1050
Cooling BTUH (95F)
12500
Cooling - Amperes
4.7
CFM @ 0.3 (high fan) Nominal Cooling
420
Volts/Amps
230 / 208V
Features
Heating BTU at 17F nominal
6300
Heating BTU HP @ 47F
11200
Refrigerant Type
R454B
Sensible Heat Ratio
76% ( at 95F Nominal Cool High Fan)
COP2 at 17F nominal / max
2.2
Refrigerant Charge (oz.)
38.5
Heat Pump with Resistance Heat Backup
Yes
Control Type
Tactile touch pad with LED Display
SEER2
17
Color Appearance
Gray
Product Type
Vertical Air Conditioners
Heating BTU at 17F max
9100
HSPF2 Rating
8.1
Makeup Air
Yes
EER2 @ 95F (12,000 BTU)
12
Corrosion Treated
Yes
COP2 @ 47F
3.5
Heating BTU Range @ 47F
4500 - 13000
Heat Pump
Yes
Capacity
Dehumidification (pts./hr.)
2.8 Nominal Cooling High Fan
