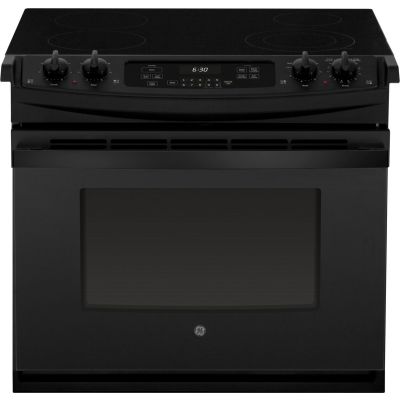

About the GE JD630DTBB
- 30 Inch Drop-In Electric Range with 4 Smoothtop Elements
- 4.4 cu. ft. Oven Capacity
- Ceramic Glass Cooktop
- Dual Element Bake
- Self-Clean
- Delay Bake
- Sabbath Mode
- Power Boil
- UL Listed
- ADA Compliant: Black on Black
Brand:
Style:
Drop-In
Width:
31 1/4"
Height:
27"
Depth:
28 1/2"
Capacity:
4.4 Cu. Ft.
Convection:
No
Self Clean:
Yes
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
40
Update the style of your kitchen with this drop-in range. With 6"/9" Power Boil element you can quickly bring even large pots of water to a boil. The dual element bake works to produce even heat and great baking results. Delay bake function puts you in control of how and when you want to bake, saving you time and hassle. With self-clean oven and smooth surface range, cleanup is easier than ever, leaving you more time for everything else.
About GE
GE Consumer and Industrial spans the globe as an industry leader in major appliance, lighting and integrated industrial equipment systems and services. They provide solutions for commercial, industrial and residential use in more than 100 countries which uses innovative technologies and "ecomagination." It's a GE initiative to aggressively bring to market new technologies that help customers and consumers meet pressing environmental challenges to deliver comfort, convenience and electrical protection and control. GE brings imagination to work.
Key Features
4 Smoothtop Elements
- Provide even heat and easy cleanup.
4.4 cu. ft. Oven Capacity
- Enough room to cook an entire meal at once.
Ceramic Glass Cooktop
- Creates a cooking environment that is not only functional but also easy to clean and maintain.
Dual-Element Bake
- Upper and lower elements produce even heat and great results.
Self-Clean Oven
- Delivers a high concentrated heat with the touch of a button that conveniently cleans the oven cavity and eliminates the need to scrub baked-on food and spills.
Black Gloss Oven Interior
- Enjoy a clean and sleek appearance.
Electronic Oven Controls
- The oven control panel features electronic touchpads that require just a touch to initiate the operation.
9"/6" Power Broil Element
- Produces rapid, powerful heat.
Other Features
- Delay Bake Option With Cook & Hold
- 6-Pass Bake Element
- 6-Pass Broil Element
- Audible Preheat Signal
- Auto Oven Shut-Off with Override
- C° or F° Programmable
- Control Lock Capability
- Electronic Clock & Kitchen Timer
- Certified Sabbath Mode
JD630DTBB Installation Instructions
Specifications
GTIN
UPC
84691909408
Technical Details
ADA Compliant
Yes
Amps
40
Oven Wattage
3,420
Voltage
240/208 Volts
Smart
Bluetooth
No
Remote Control
No
WiFi
No
Product Information
Brand
GE
Model
JD630DTBB
Warranty Terms
1 year ? GE Appliances are backed by a one year warranty. For additional details, visit https://www.geappliances.com/ge/service-and-support/
Oven Features
Broiler Element Location
Top
Broiler Pan Included
No
Convection
No
Delay Bake
Yes
Digital Temperature Display
Yes
Interior Oven Light
Yes
Proof Mode
No
Racks
2
Removable Door
Yes
Self-Cleaning
Yes
Self-Cleaning Type
High Heat
Steam Clean
No
Temperature Probe
No
Timer
Yes
Burner
Burner 1 Output
1200
Burner 2 Output
3000
Burner 3 Output
2000
Burner 4 Output
2000
Shabbos Compliance
Certification
None
Sabbath Mode
Yes
Appearance
Clock
Yes
Color
Black
Cooktop
Smoothtop
Cooktop Control Type
Knobs
Double Oven
No
Drawer
None
Fingerprint Resistant
No
Fuel Type
Electric
Oven Control Type
Touchpad
Stainless Steel Handle
No
Style
Drop-In
Viewing Window
Yes
Dimensions
Depth
28 1/2 Inch
Exterior Width
30 Inch
Height
27 Inch
Interior Depth
18 1/4 Inch
Interior Height
17 1/2 Inch
Interior Width
24 Inch
Width
31 1/4 Inch
Electric Cooktop Features
Hot Surface Indicator Light
Yes
Induction
No
Capacity
Number of Burners
4
Primary Oven Capacity
4.4 Cu. Ft.
Power / Rating
Amp Rating at 208V
40
Amp Rating at 240V
40
Bake Wattage
3410W
Broiler Wattage
3420W
KW Rating at 208V
8.9
KW Rating at 240V
11.9
Warranty
Labor Warranty
Limited 1-year Entire Appliance
Parts Warranty
Limited 1-year Entire Appliance
Cooktop Features
Control Type
Knobs
Cooktop Surface
Overhanging Cooktop, Black Ceramic Glass
Element - Left Front
8" - 2,000W
Element - Left Rear
8" - 2,000W
Element - Right Front
9"/6" - 3,000W Power Boil
Element - Right Rear
6" - 1,200W
Weights & Dimensions
Approximate Shipping Weight
179 lb.
Cabinet Opening
30"
Cabinet Width
30"
Cooktop Width
31 1/4"
Depth with Door Open
44 5/8"
Depth Without Handle
25 3/4"
Net Weight
152 lb.
Oven Interior Dimensions (W x H x D)
24" x 17 1/2" x 18 1/4"
Overall Depth
28 1/2"
Overall Height
27"
Overall Width
31 1/4"
Claims & Certifications
ADA Compliant
Yes
California Prop 65
Yes
Made In America
70 to 90% U.S. Content
UL
Yes
Oven Features
Amp Rating at 208V
40
Amp Rating at 240V
40
Bake Wattage
3410W
Broiler Wattage
3420W
Control Type
Touchpad
Interior Oven Light
1 Incandescent
KW Rating at 208V
8.9
KW Rating at 240V
11.9
Melt Setting
Yes
Oven Cleaning Type
Self-Clean
Oven Features
6-Pass Bake Element, 6-Pass Broil Element
Oven Rack Features
2 Oven Racks, 7 Rack Positions
Total Capacity
4.4 cu. ft.
Accessories
Cooktop Cleaning
Included. Cream. Sponge
Product Specifications
Color
Black on Black
Control Location
Front
Cooking Technology
Traditional
Fuel Type
Electric
Heating Element "ON" Indicator Light
2
Hot Surface Indicator Lights
4
Installation
Flush Appearance
Product Type
Drop-In
Sabbath Mode
Yes
Self-Clean Oven Door Lock
Automatic
