$10,299.00
FREE In-Home Delivery
Eligible for efficiency rebate from local utility (Save up to $75)
See details
Save with Energy Rebates
New Jersey has joined forces with your local utility company to bring you fantastic rebates on energy-efficient appliances. Upgrade your home with energy star certified appliances and save:
- Eligible Refrigerators - Get back $50-$75 via rebate
- Eligible Clothes Washing Machines - Get back $50-$100 via rebate
- Eligible Clothes Dryers - Get back $100-$300 via rebate
- Eligible Clothes Washer/Dryer Sets - Get back $150-$400 via rebate
Qualifying is easy, just visit your utility provider's website listed below for program details.
Disclaimer: New Jersey residents only. This program is managed by your local utility company and all aspects of it, including qualifications, rewards, and any other details, are the responsibility of the utility provider, not Designer Appliances.
Select Option:
Panel Ready
Frequently Bought Together
3 Item(s)
-
Jenn-Air JUWFL242HM Noir 24" Built-In Undercounter Wine Cellar - Left Swing - Stainless Steel$3,649.00 Save $150.00$3,499.00
Accessories
6 Item(s)

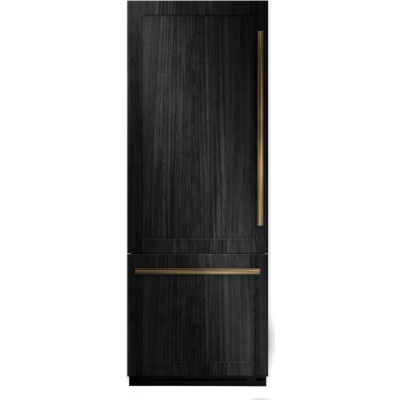

About the Jenn-Air JBBFL30NMX
- JennAir JBBFL30NMX 30 Inch Panel Ready Built-In Bottom Mount Refrigerator with 17 cu. ft. Total Capacity
- Daring Obsidian Finish Interior
- Automatic Ice Maker
- Tap Touch Controls
- Precision Temperature Management™ System
- DeepFreeze® Mode
- Sabbath Mode
- Star-K Certified and ENERGY STAR® Certified: Left Hinge
Brand:
Hinge Side:
Left
Total Capacity:
17 Cu. Ft.
Width:
29 7/8"
Height:
80 7/10"
Depth:
24 4/5"
Designed and assembled in Italy, this Built-In bottom-mount refrigerator allows you to think beyond the kitchen while keeping ingredients at optimal temperatures. Multi-Point LED Lighting with Canopy Lighting illuminates vibrant foods against the striking Daring Obsidian Interior, while the Panel-Ready options allow you to match the exterior to your aesthetics.
About JennAir
JennAir is a brand of high-end kitchen appliances and fixtures that has been in business since 1947. JennAir offers a range of products such as ranges, cooktops, ovens, coffee systems, microwaves, dishwashers, and refrigeration. JennAir products are designed with the maker in mind, and they feature innovative technologies, elegant designs, and vibrant colors.
Key Features
Daring Obsidian Finish Interior
- Inspired by the volcanic glass, this industry-exclusive dark finish draws attention with a high-contrast style. Fine foods and fresh produce emerge like vibrant art, with LED lighting showcasing your ingredients against the alluring interior.
Multi-Point Lighting with Full-Width Canopy Lighting
- Illuminate food items against the Obsidian finish interior with multiple LED lights that enhance visibility.
- Multi-point lighting includes lights along the side and bright Full-Width Canopy Lighting throughout the interior to showcase fresh, vibrant ingredients.
Fully Flush & Integrated Design Within 25" Deep Cabinet
- With a stealth flush, full-height door, and articulating hinge, this built-in refrigerator goes incognito until open, enabling the refrigerator to install flush within 25" deep cabinetry to offer a seamless appearance.
Precision Temperature Management™ System with Dual Compressors
- Sensor-controlled dual compressors manage the climate in the refrigerator and freezer, helping to keep your ingredients at their ideal preservation temperatures.
- The smooth-running refrigerator avoids abrupt start and stop cycles to maintain quiet tranquility in your space.
Solid Glass and Metal
- Each drawer, shelf, and door bin in the refrigerator is made of solid glass and metal that is naturally odor-resistant. To hell with cheap plastic in luxury door bins, shelves, and liners.
Italian Craftsmanship
- This built-in bottom-mount refrigerator is meticulously designed and precisely assembled in Italy.
TwinFresh™ Climate Control System
- TwinFresh™ Climate Control System helps to keep ingredients fresh by eliminating shared air between the refrigerator and freezer. This system creates two distinct environments ideal for different food preservation needs.
Soft-Close Crisper Drawers
- Each crisper drawer within the refrigerator smoothly opens and closes quietly, even while fully loaded with produce and fresh ingredients.
Adjustable Glass Shelving
- Easily reposition the Adjustable Glass Shelving to customize the interior of your refrigerator. Accented with brushed aluminum trim, the crystal-clear glass allows light to shine through and illuminate the interior of the refrigerator.
Panel-Ready
- Customize the exterior of your refrigerator with the aesthetics of your kitchen-including the integrated look of custom wood cabinetry or accessory stainless panel kits and handles (sold separately).
LCD Display with Tap Touch Controls
- Navigate effortlessly through settings, dynamic features, and controls that respond to your touch on an LCD touchscreen.
Flexible Cooling Modes
- Select from four integrated modes to automatically adjust cooling temperatures for your every need. Flexible cooling functions include Max Cool in the refrigerator and Fast Freeze, DeepFreeze® Mode, and Max Ice in the freezer.
DeepFreeze® Mode
- Internal temperatures in the freezer plummet as low as -8°F-an arctic refuge for frozen foods. The DeepFreeze® indicator identifies the ideal temperature for locking in flavor and freshness.
Fast Freeze
- A rush of cold air bursts into the upper drawer of the freezer at the touch of a button to rapidly chill libations and food items and create the ideal frozen environment for 12 hours.
Max Cool Option
- Plummet internal temperatures to their lowest point for 12 hours.
Automatic Ice Maker
- Indulge in access to a steady supply of filtered Prism Ice conveniently stowed in its own drawer.
Max Ice
- Max Ice rapidly produces a steady supply of Prism Ice, delivering ice faster than normal for 24 hours, to accommodate your entertaining needs.
Water Filter Included
- Remove contaminants and minerals at the source. With a water filter included, you can feel confident about the quality of your water and ice as your water filter is certified to reduce 99% of lead.
- Certified by NSF International to remove 99% of lead at a pH level of 6.5. Reduction may vary based on your water's pH level. Contaminants reduced by this water filter are not necessarily in all users' water.
Star-K Certified
- This refrigerator is Star-K Certified for use on the Sabbath.
Sabbath Mode
- Allows the door of the refrigerator or freezer to be opened or closed during the Sabbath or other religious holidays without directly turning on or off any lights, digital readouts, solenoids, fans, valves, icons, tones, alarms, or the compressor.
Magnet-to-Metal Seal
- Powerful magnets in the gasket directly grasp the built-in metal refrigerator door to create a tight seal.
Join Kit Available
- Pair two units with Join Kits that seamlessly integrate the appliances together without compromising aesthetics. (Sold separately)
ENERGY STAR® Certified
- This JennAir built-in refrigerator is ENERGY STAR® certified.
Experts at the Ready
- Our crew relentlessly engages with JennAir® appliances day in and day out. Initiated in rigorous product, process, and culinary training, this team answers to you-from sales to installation to ownership.
Serviced by a Select Few
- We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
Specifications
Details
Design Expression
Panel-Ready
Refrigerator Type
Bottom Freezer
Exterior Details
Counter Depth
Yes
Door Color
Panel Ready
Hidden Hinge
Yes
Controls
Automatic Defrost
Yes
Control Location
Interior Top
Control Type
Color Touch LCD
Cooling Type
Dual Evaporator
Door Ajar/Open Alarm
Yes
Max Cool/Fast Cool
Yes
Sabbath Mode
Yes
Refrigerator Details
Non-Climate Control Drawers
1 Full Width, 2 Half-Width
Number of Doors
2
Number of Interior Shelves
3
Refrigerator Lighting
LED
Refrigerator Door Bins
3 Adjustable Half-Width
Freezer Details
Freezer Drawer/Basket
2 Full Width
Freezer Lighting
LED
Icemaker Details
Icemaker
Factory Installed
Types of Ice
Cubed
Filter Details
Air Filter Indicator/Reset
Yes
Fresh Flow Air Filter Included
Yes
Water Filter Location
Interior
Water Filter Indicator/Reset
Yes
Water Filter Part Number
EDR2RXD1
Dimensions & Weights
Cabinet Width
29 7/8"
Width
29 7/8"
Depth
24 4/5"
Depth Closed Excluding Handles
24 4/5"
Depth Excluding Doors
22"
Depth With Door Open 90 Degrees
52 5/8"
Height
80 7/10"
Cutout Width
30"
Cutout Height
84"
Net Weight
359.35 lbs
Gross Weight
410.05 lbs
Certifications
CEE Tier RatingTier
I
ENERGY STAR Qualified
ENERGY STAR® Qualified
UL
Yes
Prop 65
Yes
Product Information
Brand
JennAir
Model
JBBFL30NMX
Appearance
Type
Built In
Style
Bottom Freezer
Size
Full Size
Undercounter
No
Double Freezer Drawers
No
Glass Door
No
Hinge Side
Left
Field Reversible Doors
No
Door Finish
Smooth
Accepts Custom Panels
Yes
Wine Racks (Category)
No
Color
Panel Ready
Door Color
Panel Ready
Interior Color
Black
Freezer Drawers
Single
Door Hinge Covers/Hidden Hinges
Yes
Capacity
Refrigerator Capacity
12 Cu. Ft.
Freezer Capacity
5 Cu. Ft.
Total Capacity
17 Cu. Ft.
Dimensions
Width
29 7/8 Inch
Depth
24 4/5 Inch
Depth without Door
22 Inch
Depth without Door and Handles
22 Inch
Depth without Handles
24 4/5 Inch
Depth with Door at 90°
52 5/8 Inch
Height
80 7/10 Inch
Cutout Width
30 Inch
Cutout Height
84 Inch
Shabbos Compliance
Sabbath Mode
Yes
Certification
STAR-K
Smart
WiFi
No
Smart Accessory Required
No
Refrigerator Features
Type of Shelves
Glass
No. of Shelves
3
No. of Fixed Shelves
1
No. of Adjustable Shelves
2
No. of Door Bins
3
Adjustable Door Bins
Yes
Cooling System
Precision Temperature Management™
Odor Control
Yes
Soft Close
Yes
Freezer Features
Defrost
Automatic
Quick Freeze
Yes
No. of Drawers
2
Technical Details
Energy Star Rated
Yes
CEE Rating
Tier I
ADA Compliant
No
Approved for Commercial Use
No
Approved for Medical Use
No
Approved for Outdoor Use
No
Amps
15
Voltage
115 Volts
Water
Water Dispenser
No
Hot Water Dispenser
No
Sparkling Water Dispenser
No
Water Filtration
Yes
Settings
Digital Temperature Control
Yes
Convertible Freezer/Refrigerator
No
Ice
Ice Dispenser
No
Ice Maker
Yes
Secondary Ice Maker
No
GTIN
UPC
883049643854
Features
LED Lighting
Yes
General
Manufacturer
Jenn-Air
