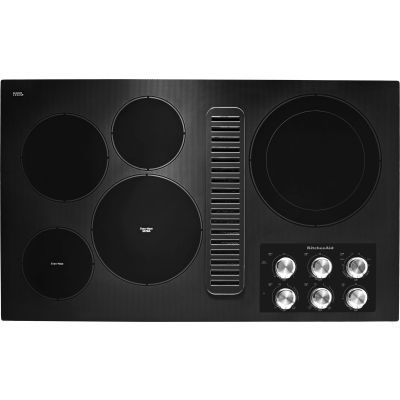

About the KitchenAid KCED606GBL
- 36 Inch Electric Downdraft Cooktop with 5 Elements
- Ceramic-Glass Surface
- Downdraft Ventilation
- Even-Heat Ultra Element
- 300 CFM Exhaust
- 3-Speed Fan Control
- CookShield Finish
- Double-Ring Element
- Hot-Surface Indicator
- UL Listed: Black
Brand:
Finish:
Black
Fuel Type:
Electric
Style:
Smoothtop
Width:
36 5/16"
Height:
18 3/4"
Depth:
22 1/16"
Cutout Width:
34 9/16"
Cutout Depth:
21 1/8"
Volts:
220 Volts
Amps:
40
This 36 electric cooktop features Downdraft, an integrated ventilation system that doesn't require a separate hood. A 10-inch Even-Heat™ Ultra element provides versatility for both high-and low-temperature cooking, and has multiple simmer settings. And with a 3-speed fan with 300 CFM exhaust rating, the venting can keep up with your culinary feats.
About KitchenAid
KitchenAid has spent decades creating innovative products for the well-equipped kitchen. From commercial grade cooktops and wine cellars to stand mixers and an impressive assortment of cookware, bakeware and accessories, they offer virtually every culinary essential you need. So whether you cook, bake, brew, blend, or anything you want to do in the kitchen, you can do with KitchenAid.
Key Features
Downdraft Ventilation
- Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
10 Inch Even-Heat™ Ultra Element with Simmer Setting
- Provides more versatility for high and low temperature cooking techniques. Even-Heat™ Technology maintains a constant supply of power and delivers a range of simmer settings.
6 Inch Even-Heat™ Element with Melt Setting
- Combines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
300 CFM Exhaust
- Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
3-Speed Fan Control
- Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
CookShield Finish
- Protects the cooktop surface from scratches, helping keep it looking pristine even with frequent use.
Double-Ring Element
- Lets you use different cookware sizes at one location. When using large, 12-inch cookware the entire element surface is used. For smaller cookware, you'll use only the 9-inch inner element.
Hot-Surface Indicator
- Provides a clear indication that lets you know if any cooking surface is on or still hot.
Convertible to Duct-Free Ventilation
- Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitation
Additional Features
- Ceramic-Glass Surface
- UL Listed
KCED606GBL Installation Guide
Specifications
Smart
WiFi
No
Cooktop Details
Center Front Element-Burner Size
10"
Automatic Pan Detection
No
Center Rear Element-Burner Size
6"
Cooktop Element Style
Radiant
Cooktop Surface Material
Ceramic Glass
Right Rear Element-Burner Size
12"/9"
Number of Cooking Element-Burners
5
Left Rear Element-Burner Type
Even Heat
Left Front Element-Burner Size
6"
Hot Surface Indicator Light
Yes
Heating Element On Indicator Light
Yes
Downdraft Vent
Yes
Product Specs
Size
36"
Power Outage Compatible
No
Power Cord Included
No
Power Boost
No
Location of Controls
Right Side
Knob Color
Stainless Steel
Installs Over Built-In Oven
No
Fuel Type
Electric
Energy Rating
258
Digital Display
No
Cooktop Type
Downdraft
Technical Details
Voltage
220 Volts
Amps
40
Energy Star Rated
Yes
GTIN
UPC
883049415949
EAN
0883049415949
Appearance
Type
Drop-In
Trim Color
Black
Surface Color
Black
Style
Smoothtop
Color
Black
Control Type
Knobs
Controls Location
Top
Number of Burners
5
Fuel Type
Electric
Downdraft Venting
Yes
Ventilation System
Number of Speeds
3
CFM Motor Class
300 CFM
Burner Output
Burner 5 Output
3,200W
Burner 4 Output
1,300W
Burner 3 Output
1,800W
Burner 2 Output
1,200W
Burner 1 Output
3,000W
Product Information
Brand
KitchenAid
Model
KCED606GBL
Dimensions
Actual Width
36 5/16 Inch
Actual Height
18 3/4 Inch
Actual Depth
22 1/16 Inch
Cutout Depth
21 1/8 Inch
Cutout Width
34 9/16 Inch
Dimensions and Weight
Width
36 5/16"
Net Weight
57 lb.
Height
3 5/8"
Gross Weight
70 lb.
Depth
22 1/16"
Electric Cooktop Features
Hot Surface Indicator Light
Yes
