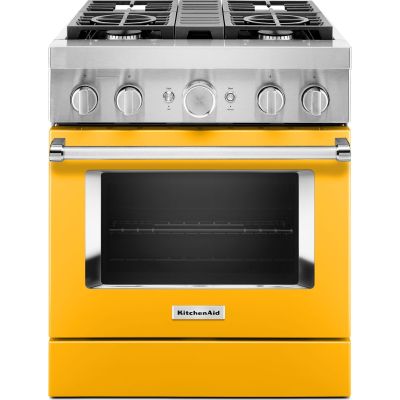

About the KitchenAid KFDC500JYP
- 30 Inch Freestanding Dual Fuel Smart Range with 4 Sealed Burners
- 4.1 Cu. Ft. Capacity
- Convertible Grates
- Self-Clean
- Even-Heat™ Convection
- WiFi
- EasyConvect™ Conversion
- SatinGlide™ Rack
- Ultra Power™ Burners
- Star-K Certified: Yellow Pepper
Brand:
Series:
Commercial-Style
Style:
Freestanding
Width:
29 7/8"
Height:
36"
Depth:
30 1/4"
Capacity:
4.1 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Fuel Type:
Dual Fuel
Volts:
240 Volts
Amps:
40
Empower your creativity with a 30-inch KitchenAid® Commercial Style Range with four burners. This dual-fuel range combines a gas cooktop with the even baking of an electric oven. Two versatile 20,000 BTU Ultra Power™ Dual-Flame Burners offer the power and precision to sear, simmer, stir-fry, and sauté. Even-Heat™ True Convection helps you achieve more consistent baking and roasting. With Three-Level Convertible Grates, you can adjust the heat to suit your cooking style. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer, and melt or remove it to nestle a round-bottom wok for stir-fry. When inspiration strikes, it's easy to get cooking with the KitchenAid app and stay hands-on or hands-off when you control your oven with your google assistant or an Alexa-enabled device.
About KitchenAid
KitchenAid has spent decades creating innovative products for the well-equipped kitchen. From commercial grade cooktops and wine cellars to stand mixers and an impressive assortment of cookware, bakeware and accessories, they offer virtually every culinary essential you need. So whether you cook, bake, brew, blend, or anything you want to do in the kitchen, you can do with KitchenAid.
Key Features
4 Sealed Burners
- It provides 5,000 - 20,000 BTUs to meet various cooking requirements.
4.1 Cu. Ft. Capacity
- Provides ample room to cook large dishes, such as a whole turkey or roast.
Three-Level Convertible Grates
- Adjust the removable inserts to give your pan the right heat for your cooking technique.
Even-Heat™ True Convection
- Features a unique bow-tie design with a heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts, and flavorful, caramelized vegetables.
WiFi
- Use the KitchenAid™ App to preheat, proof, bake and roast, save custom cooking instructions for favorite recipes, and more. It also works with your Google Assistant or an Alexa-enabled device.
EasyConvect™ Conversion System
- Automatically adjusts conventional baking temperatures to their convection equivalents, making it effortless to use convection with recipes of all kinds.
SatinGlide™ Roll-Out Extension Rack
- Makes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
Two 20,000 BTU Ultra Power™ Dual-Flame Burners
- Give you precise control of powerful highs, steady lows, and the wide range of temperatures in between.
- The versatile, dual-flame design lets you sear, saute, simmer, and sizzle, all on the same burner.
5,000 BTU Simmer & Melt Burner
- Lets you reach and maintain low temperatures for delicate sauces and just the right size for small saucepans.
- Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.
15,000 BTU Burner
- Delivers the high-heat you need for successful searing, sautéing, stir-frying, and quickly bringing large stock pots to a rolling boil.
Dual-Concentric Oven Knob
- Provides one-handed control of both oven mode and temperature; responsive backlighting confirms settings are correct or alerts you to needed adjustments.
KitchenAid® Handle Medallion Kit (Sold Separately)
- Lets you change the color of your commercial-style range handle medallions to add a custom accent. Available in Silver, Dark Blue, Bronze, Black, Copper, Red, New Gold, and Mascarpone.
- Each kit includes two medallions and a 1/8" hex Allen wrench for easy replacement (sold separately).
Dual Fuel Range
- Satisfies the needs of the most demanding cooks by combining the precise control of a gas cooking surface with the even baking, roasting, and broiling of an electric oven.
Other Features
- Self-Clean Oven
- Automatic Shut-Off
- Hidden Bake Element
- Flame-Sensing™ Re-ignition
- Power On Indicator Light
- Removable Door
KFDC500JYP Installation Instructions
Specifications
GTIN
UPC
883049529264
Technical Details
ADA Compliant
No
Amps
40
LP Conversion
Yes - Kit Included
Voltage
240 Volts
Smart
Alexa
Yes
App Integration
KitchenAid™ App, Google Assistant, Amazon Alexa
Google Home
Yes
Remote Control
Yes
Remote Monitoring
Yes
WiFi
Yes
Product Information
Brand
KitchenAid
Model
KFDC500JYP
Oven Features
Broiler Element Location
Top
Broiler Pan Included
No
Convection
Yes
Delay Bake
No
Digital Temperature Display
No
Glide Rack(s)
Yes
Interior Oven Light
Yes
Racks
3
Removable Door
Yes
Self-Cleaning
Yes
Self-Cleaning Type
High Heat
Steam Clean
No
Temperature Probe
Yes
Timer
No
Burner Output
Burner 1 Output
20000
Burner 2 Output
15000
Burner 3 Output
5000
Burner 4 Output
20000
Power Burner
Yes
Simmer Burner
Yes
Shabbos Compliance
Certification
STAR-K
Sabbath Mode
Yes
Appearance
Clock
No
Color
Yellow
Cooktop
Sealed Burner
Cooktop Control Type
Knobs
Double Oven
No
Downdraft Venting
No
Drawer
None
Fingerprint Resistant
No
Fuel Subtype
Natural Gas
Fuel Type
Dual Fuel
Oven Control Type
Knobs
Stainless Steel Handle
Yes
Style
Freestanding
Viewing Window
Yes
Gas Cooktop Features
Continuous Grates
Yes
Dishwasher Safe Grates
Yes
Griddle
No
Dimensions
Depth
30 1/4 Inch
Exterior Width
30 Inch
Height
36 Inch
Interior Depth
16 3/10 Inch
Interior Height
14 3/10 Inch
Interior Width
24 Inch
Width
29 7/8 Inch
Capacity
Number of Burners
4
Primary Oven Capacity
4.1 Cu. Ft.
General
Series
Commercial-Style
Manufacturer
KitchenAid
Certifications
ADA Compliant
No
CUL
Yes
Star K Certified
Yes
UL
Yes
Smart Compatibility
Connectivity
Amazon Alexa, Android, Google Assistant, iOS
Smart Appliance
Yes
Works With
App, Remote Access, Voice Controlled, WiFi
Dimensions & Weight
Cutout Depth
24"
Cutout Height
36"
Cutout Width
30"
Depth
30 1/4"
Depth Closed Excluding Handles
27 3/4"
Depth With Door Open 90 Degree
46 1/2"
Gross Weight
408 lb.
Height
36"
Net Weight
358 lb.
Oven Interior Depth
16 3/10"
Oven Interior Height
14 3/10"
Oven Interior Width
24"
Width
29 7/8"
Element/Burner Details
Cooktop Element Style
Sealed Burners
Left Front Element-Burner Power
20,000 BTU/14,000 LP
Left Front Element-Burner Type
Dual-Stacked Burner
Left Rear Element-Burner Power
15,000 BTU/11,000 LP
Left Rear Element-Burner Type
Sealed Burner
Right Front Element-Burner Power
20,000 BTU/14,000 LP
Right Front Element-Burner Type
Dual-Stacked Burner
Right Rear Element-Burner Power
5,000 BTU/3,000 LP
Right Rear Element-Burner Type
Sealed Burner
Cooktop
Auto Re-ignition
Yes
Cooktop Control Knob Color
Stainless Steel
Cooktop Control Knob Type
Metal
Cooktop Control Location
Front
Cooktop Control Type
Knobs
Cooktop Surface Color
Black
Cooktop Surface Material
Porcelain Coated Steel
Grate Details
Dishwasher Safe, Individual, Matte Finish, Porcelain Coated Cast Grates
Heating Element On Indicator Light
No
Hot Surface Indicator Light
No
Ignition Type
Flame-Sensing™ Re-ignition
Number of Cooking Element-Burners
4
Number of Grates
4
Oven
Automatic Convection Conversion Temperature Adjust
Yes
Automatic Shut-Off
Yes
Broiler Location
Top Center
Convection Functions
Bake, Broil, Roast
Door Removable
Yes
Hidden Bake Element
Yes
Number of Oven Lights
3
Number of Oven Racks
3
Number of Rack Guides
6
Oven Control Location
Front
Oven Control Type
Knobs
Oven Light Switch Location
Oven Control
Oven Light Type
Halogen
Oven Rack Type
Gliding Roll-Out, Standard (Both)
Power On Indicator Light
Yes
Product Specifications
Color
Yellow Pepper
Cooktop Configuration
All Burners
Fuel Type
Dual Fuel
Handle Color
Stainless Steel
Handle Material
Metal
Handle Type
Towel Bar
LP Convertible
Yes - Kit Included
Natural Gas Convertible
Yes
Oven Cleaning Type
Self-Cleaning
Oven Configuration
Single Oven
Power Cord Included
No
Power Outage Compatible
Yes
Range Configuration
Freestanding
Range Type
Freestanding
Size
30"
