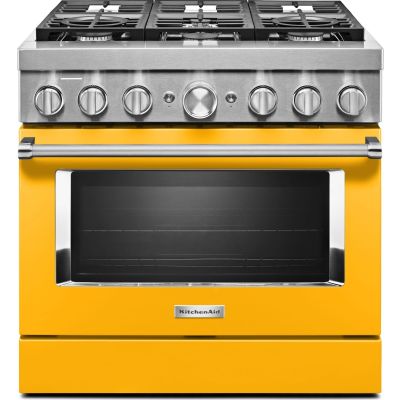

About the KitchenAid KFDC506JYP
- 36 Inch Freestanding Dual Fuel Smart Range with 6 Sealed Burners
- 5.1 Cu. Ft. Capacity
- Convertible Grates
- Self-Clean
- Even-Heat™ Convection
- WiFi
- EasyConvect™ Conversion
- SatinGlide™ Rack
- Ultra Power™ Burners
- Star-K Certified: Yellow Pepper
Brand:
Series:
Commercial-Style
Style:
Freestanding
Width:
35 7/8"
Height:
36"
Depth:
27 3/4"
Capacity:
5.1 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Fuel Type:
Dual Fuel
Volts:
240/208 Volts
Amps:
40
Expand your skills with a 36-inch KitchenAid® Commercial Style Range with six burners. This dual-fuel range combines a gas cooktop with the even baking of an electric oven. Two 20,000 BTU Ultra Power™ Dual-Flame Burners offer the power and precision to successfully sear, simmer, stir-fry, and sauté. Even-Heat™ True Convection helps you achieve more consistent baking and roasting. With Three-Level Convertible Grates, you can adjust the heat to suit your cooking style. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer, and melt or remove it to nestle a round-bottom wok for stir-fry. When inspiration strikes, it's easy to get cooking with the KitchenAid app and stay hands-on or hands-off when you control your oven with your Google Assistant or an Alexa-enabled device.
About KitchenAid
KitchenAid has spent decades creating innovative products for the well-equipped kitchen. From commercial grade cooktops and wine cellars to stand mixers and an impressive assortment of cookware, bakeware and accessories, they offer virtually every culinary essential you need. So whether you cook, bake, brew, blend, or anything you want to do in the kitchen, you can do with KitchenAid.
Key Features
6 Sealed Burners
- It provides 5,000 - 20,000 BTUs to meet various cooking requirements.
5.1 Cu. Ft. Capacity
- Provides extra room for multiple dishes, so you can cook a whole turkey or roast and sides all at once.
Three-Level Convertible Grates
- Adjust the removable inserts to give your pan the right heat for your cooking technique.
Even-Heat™ True Convection
- Features a unique bow-tie design with a heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts, and flavorful, caramelized vegetables.
WiFi
- Use the KitchenAid™ App to preheat, proof, bake and roast, save custom cooking instructions for favorite recipes, and more. It also works with your Google Assistant or an Alexa-enabled device.
EasyConvect™ Conversion System
- Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ App, making it effortless to use convection with recipes of all kinds.
SatinGlide™ Roll-Out Extension Rack
- Makes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
Two 20,000 BTU Ultra Power™ Dual-Flame Burners
- Give you precise control of powerful highs, steady lows, and the wide range of temperatures in between.
- The versatile, dual-flame design lets you sear, saute, simmer, and sizzle, all on the same burner.
5,000 BTU Simmer & Melt Burner
- Lets you reach and maintain low temperatures for delicate sauces and just the right size for small saucepans.
- Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.
Three 15,000 BTU Burners
- Delivers the high-heat you need for successful searing, sautéing, stir-frying, and quickly bringing large stock pots to a rolling boil.
Dual-Concentric Oven Knob
- Provides one-handed control of both oven mode and temperature; responsive backlighting confirms settings are correct or alerts you to needed adjustments.
KitchenAid® Handle Medallion Kit (Sold Separately)
- Lets you change the color of your commercial-style range handle medallions to add a custom accent. Available in Silver, Dark Blue, Bronze, Black, Copper, Red, New Gold, and Mascarpone.
- Each kit includes two medallions and a 1/8" hex Allen wrench for easy replacement (sold separately).
Dual Fuel Range
- Satisfies the needs of the most demanding cooks by combining the precise control of a gas cooking surface with the even baking, roasting, and broiling of an electric oven.
Star-K Certified
- To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays, and tones disabled.
Other Features
- Self-Clean Oven
- Automatic Shut-Off
- Hidden Bake Element
- Flame-Sensing™ Re-ignition
- Power On Indicator Light
- Removable Door
KFDC506JYP Installation Instructions
Specifications
GTIN
UPC
883049529288
Technical Details
ADA Compliant
No
Amps
40
LP Conversion
Yes - Kit Included
Voltage
240/208 Volts
Smart
Alexa
Yes
App Integration
KitchenAid™ App, Google Assistant, Amazon Alexa
Google Home
Yes
Remote Control
Yes
Remote Monitoring
Yes
WiFi
Yes
Product Information
Brand
KitchenAid
Model
KFDC506JYP
Oven Features
Broiler Element Location
Top
Broiler Pan Included
No
Convection
Yes
Delay Bake
No
Digital Temperature Display
No
Glide Rack(s)
Yes
Interior Oven Light
Yes
Proof Mode
Yes
Racks
3
Removable Door
Yes
Self-Cleaning
Yes
Self-Cleaning Type
High Heat
Steam Clean
No
Temperature Probe
Yes
Timer
No
Burner Output
Burner 1 Output
20000
Burner 2 Output
15000
Burner 3 Output
15000
Burner 4 Output
20000
Burner 5 Output
5000
Burner 6 Output
15000
Power Burner
Yes
Simmer Burner
Yes
Shabbos Compliance
Certification
STAR-K
Sabbath Mode
Yes
Appearance
Clock
No
Color
Yellow
Cooktop
Sealed Burner
Cooktop Control Type
Knobs
Double Oven
No
Downdraft Venting
No
Drawer
None
Fingerprint Resistant
No
Fuel Subtype
Natural Gas
Fuel Type
Dual Fuel
Oven Control Type
Knobs
Stainless Steel Handle
Yes
Style
Freestanding
Viewing Window
Yes
Gas Cooktop Features
Continuous Grates
Yes
Cooktop Accessory
No Accessory
Dishwasher Safe Grates
Yes
Dimensions
Depth
27 3/4 Inch
Exterior Width
36 Inch
Height
36 Inch
Interior Depth
16 3/10 Inch
Interior Height
14 3/10 Inch
Interior Width
29 9/10 Inch
Width
35 7/8 Inch
Capacity
Number of Burners
6
Primary Oven Capacity
5.1 Cu. Ft.
General
Series
Commercial-Style
Manufacturer
KitchenAid
Certifications
ADA Compliant
No
CUL
Yes
Star K Certified
Yes
UL
Yes
Dimensions & Weight
Cooking Surface Top Height
36"
Depth with Control Panel Overhang
27 3/4"
Depth with Door
27"
Depth with Door Fully Open
46 1/2"
Depth with Handle
30 1/4"
Door Top Height
27 7/8
Grates Top Height
37 3/16"
Gross Weight
444 lb.
Net Weight
389 lb.
Oven Interior Depth
16 3/10"
Oven Interior Height
14 3/10"
Oven Interior Width
29 9/10"
Toe-Kick Height
6 5/8"
Width
35 7/8"
Cooktop Features
Auto Re-ignition
Yes
Back Left Output
15,000 BTU
Back Right Output
15,000 BTU
Cooktop Control Knob Type
Metal
Cooktop Control Location
Front
Cooktop Surface Color
Black
Cooktop Surface Material
Porcelain Coated Steel
Front Left Output
20,000 BTU
Front Right Output
20,000 BTU
Grate Details
Dishwasher Safe, Matte Finish, Porcelain Coated Cast Grates
Heating Element On Indicator Light
No
Hot Surface Indicator Light
No
Ignition Type
Flame-Sensing™ Re-ignition
Middle Back Output
5,000 BTU
Middle Front Output
15,000 BTU
Number of Cooking Element-Burners
6
Number of Grates
6
Total Burner BTU
90,000 BTU
Smart Features
Connectivity
Amazon Alexa, Android, Google Assistant, iOS
Smart Appliance
Yes
Works With
App, Remote Access, Voice Controlled, WiFi
Quick Specs
Color
Yellow Pepper
Fuel Type
Dual Fuel
LP Convertible
Yes - Kit Included
Natural Gas Convertible
Yes
Power Cord Included
No
Power Outage Compatible
Yes
Range Type
Freestanding
Size
36"
Star-K Certified
Yes
Oven Features
Automatic Convection Conversion Temperature Adjust
Yes
Automatic Shut-Off
Yes
Broiler Location
Top Center
Convection Functions
Bake, Broil, Roast
Door Removable
Yes
Hidden Bake Element
Yes
Keep Warm Setting
Yes
Number of Oven Racks
3
Number of Rack Guides
6
Oven Capacity
5.1 cu. ft.
Oven Control Location
Front
Oven Control Type
Knobs
Oven Light Switch Location
Oven Control
Oven Light Type
Halogen
Power On Indicator Light
Yes
Proofing
Yes
