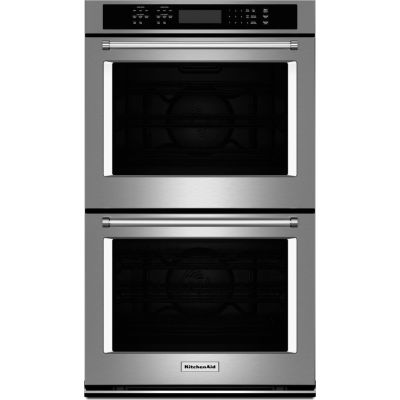

About the KitchenAid KODE507ESS
- 27 Inch Double Convection Electric Wall Oven with 8.6 cu. ft. Total Capacity
- Self-Clean Oven
- Even-Heat™ True Convection Oven
- Temperature Probe
- Even-Heat™ Preheat
- FIT System Guarantee: Stainless Steel
Brand:
Oven Style:
Double
Capacity:
8.6 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Color:
Stainless Steel
Width:
27"
Height:
51 1/4"
Cutout Width:
25 1/2"
Cutout Height:
50 1/4"
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
40
Key Features
Even-Heat True Convection Oven (Both Ovens)
- Provides consistent heating and even cooking on all racks with a unique bow-tie shaped design and convection fan that helps ensure the most even baking
Temperature Probe (Both Ovens)
- Allows accurate measurement of internal temperature of meats, poultry, and casseroles without having to open the oven door
Professionally-Inspired Design (Full VBL)
- Combines a bold blend of professionally-inspired styling with sleek touches for the home. This beautiful built-in wall oven features Satin Textured Handles, Precision Touch Controls, a stunning Chrome Inlaid Frame, the KitchenAid Badge and Brand Medallion
FIT System Guarantee
- Allows for customization of wall oven installation to match the heaight of existing cabinets through flexible design elements
EasyConvect Conversion System
- Takes the guesswork out of convection cooking by ensuring exceptional results when experimenting with new recipes or familiar favorites
4.3 cu. ft. Capacity
- The spacious capacity simultaneously accommodates multiple dishes
Even-Heat Preheat
- Helps remove cold spots to help ensure even baking because the entire oven, including the walls and racks are heated to the correct temperature
SatinGlide Roll-Out Extension Rack (Both Ovens)
- Allows easy loading and features an easy-grip handle, giving you the confidence when cooking with large or heavy dishes
Glass-Touch Display with Control Lock Function
- Features a responsive, easy-to-use interface that is also easy to clean
Self Cleaning Cycle
- Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle
Available at Designer Appliances
- www.Designer Appliances.com
KODE507ESS Dimension Guide
Specifications
Additional Specs
Oven Type
Double
LP Convertible
No
Installable Under Cooktop
No
Fuel Type
Electric
Handle Material
Metal
Flush Installation Approved
Yes
Features
Even-Heat™ True Convection, EasyConvect™ Conversion, FIT System, Self Clean, SatinGlide™ Roll-Out Extension Rack
Size
27"
Oven Details
Light Type
Halogen
Light Control
Oven Light Touch Pad
Language Conversion
English/French
Interior Color
Black
Interior Coating
Porcelain
Delay Clean
Yes
Door Broil Position
Closed
Door Lock
Yes
Door Removable
Yes
Upper Oven Number of Oven Lights
2
Upper Oven Interior Width
22"
Upper Oven Interior Height
18"
Number of Upper Oven Racks
3
Number of Upper Rack Guides
6
Self-Cleaning Oven Racks
No
Temperature Conversion
Yes
Upper Oven Interior Depth
19"
Hidden Bake Element
Yes
Convection Functions
Bake, Broil, Roast, Both
Broiler Location
Top of Oven
Automatic Shut-Off
Yes
Lower Oven Interior Depth
19"
Lower Oven Interior Height
18"
Lower Oven Interior Width
22"
Lower Oven Number of Oven Lights
2
Number of Bake Elements
1
Number of Broil Elements
1
Number of Lower Oven Racks
3
Number of Lower Rack Guides
6
Technical Details
Amps
40
Voltage
240/208 Volts
Undercounter Installable
No
ADA Compliant
No
Approved for Outdoor Use
No
Star-K Certified
Yes
LP Conversion
No
Oven Features
Timer
Yes
Temperature Probe
Yes
Removable Door
Yes
Sabbath Mode
Yes
Lower Racks
3
Proofing
Yes
Oven Racks
6
Upper Racks
3
Interior Oven Light
Yes
Delay Bake
Yes
Digital Temperature Display
Yes
Broiler Element Location
Top
Self-Cleaning
Yes
Control Type
Touch Sensor
Convection
Yes
Upper Capacity
4.3 Cu. Ft.
Lower Capacity
4.3 Cu. Ft.
Capacity
8.6 Cu. Ft.
Fast Preheat
No
Convection Type
True European
Proof Mode
Yes
Self-Cleaning Type
High Heat
Steam Clean
No
Glide Rack(s)
Yes
Broiler
Yes
Air Fry
No
Sous Vide
No
Dimensions
Exterior Depth
27 1/8 Inch
Exterior Height
51 1/4 Inch
Cutout Height
50 1/4 Inch
Exterior Width
27 Inch
Cutout Width
25 1/2 Inch
Cutout Depth
24 Inch
Appearance
Drawer
None
Clock
Yes
Viewing Window
Yes
Steam Oven
No
Stainless Steel Handle
Yes
Microwave
No
Speed Oven
No
Fuel Type
Electric
Style
Double
Door Style
Drop Down
French Door Oven
No
Color
Stainless Steel
Fingerprint Resistant
No
Electrical Details
Volts
240/208v
Amps
40a
Frequency
60 hz
Dimensions & Weight
Product Width
27"
Product Depth
27 1/8"
Product Height
51 1/4"
Net Weight
220 lbs
Product Information
Brand
KitchenAid
Model
KODE507ESS
Smart
WiFi
No
Smart Accessory Required
No
GTIN
UPC
883049327365
General
Manufacturer
KitchenAid
