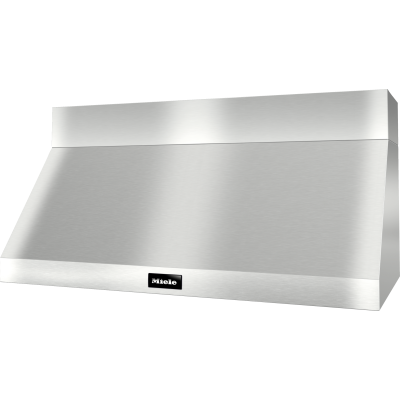

About the Miele DAR12503
- Wall Mount Range Hood with 4-Speed (Blower Sold Separately)
- Recessed Knob Controls
- LED ClearView Lighting
- Dishwasher-Safe Baffle Filters: 48 Inch
Wall ventilation hood for a perfect combination with Ranges and Rangetops.
About Miele
A brand is like an enduring promise that needs to be fulfilled continuously. Miele adheres to this promise with the utmost commitment. For more than 115 years, Miele stands for the highest product quality. Miele - that means durability, reliability, security, and peace of mind. As part of this philosophy, Miele avows itself to Germany as its center of production. Ninety percent of the total value creation is generated here. "Made in Germany" is a promise of quality and Miele strives to fulfill the high requirements of their customers and provide them with appliances of the highest quality and tested durability to make their lives more comfortable.
Key Features
4-Speed (Blower Sold Separately)
- A powerful blower that is efficient and quiet, with up to 1100 CFM ventilation.
Miele CleanCover
- Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Dishwasher-Safe Baffle Filters
- Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable.
LED ClearView Lighting
- Environmentally friendly and long-lasting: With up to 3 W they illuminate the cooktop evenly with a warm light.
Knob Controls
- Matching convenience: Rotary control allow intuitive and easy operation of blower power and LED lighting.
Temperature Sensor
- Continuous monitoring: the temperature sensor ensures the safety and prevents unnecessary energy consumption.
Handcrafted in Germany
- Know-how and craftsmanship: Our expertise goes into every ventilation hood, from development to finished product.
DAR12503 Blower Details
Specifications
Smart
WiFi
No
Smart Accessory Required
No
Product Dimensions
Overall Width
47 15/16"
Overall Height (without duct cover)
18"
Overall Depth
24 1/16"
Lighting
Number of Lights and Wattage
4 LED lights @ 2 watts each
Duct
Recommended Duct Diameter With DR*B XXL
10"
Fan
Maximum CFM With DR*B XXL
1100 CFM
Fan Speeds
4
Motor
Blower
Sold separately
Shipping
Shipping Depth
29 3/16"
Shipping Height
28"
Shipping Width
52 3/4"
Dimensions
Width
47 15/16 Inch
Depth
24 1/16 Inch
Height
18 Inch
Product Information
Warranty Terms
2 years ? Miele Appliances are backed by a two year warranty. For additional details, visit https://www.mieleusa.com/c/service-10.htm
Brand
Miele
Model
DAR12503
Technical Details
Voltage
120 Volts
Approved for Outdoor Use
No
Amps
15
ADA Compliant
No
Energy Star Rated
No
Appearance
Venting Type
Ducted
Type
Hood
Style
Canopy Pro Style
Mounting Type
Wall Mount
Color
Stainless Steel
Blower Type
Sold Separately
Blower Included
No
Glass Canopy
No
Fingerprint Resistant
No
GTIN
UPC
28125051USA
EAN
4002516546955
Electrical
Power Cord
Yes - NEMA 5-15 plug, length 2' 6" (0.75 m)
Electrical Requirements
120V, 60Hz, 15 Amps
Features
Number of Fan Speeds
4
Delay Shut-Off
No
Dishwasher Safe Filters
Yes
Lights
LED
Filter Type
Baffle
Capacity
Duct Size
10 Inch
General
Manufacturer
Miele
