About the Miele HR14223I

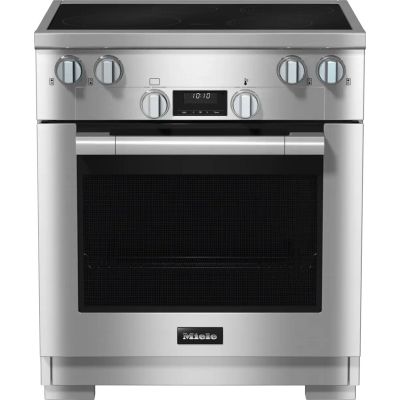

- Miele HR14223I 30 Inch Freestanding Induction Range with 4 Cooking Zones
- 4.59 Cu. Ft. Oven Capacity
- 9 Power Levels
- Booster Function
- TwinBooster
- DirectSelect Controls and TwinPower Convection Fans
Brand:
Series:
Induction
Style:
Freestanding
Width:
29 15/16"
Height:
35 5/8"
Depth:
27 3/4"
Capacity:
4.59 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Induction
Volts:
240/208 Volts
Amps:
50
With innovative technologies and cutting-edge design this 30-inch induction range features a Direct Select easy control display, TwinPower function for a fast heating time and even heat distribution. It also features a self cleaning function for minimal cleaning effort.
About Miele
Since 1899, Miele has created thoughtfully designed, precisely engineered home appliances that fulfill the company's founding promise of 'Immer Besser' - a German phrase meaning 'Forever Better'. Designed for longevity and durably crafted, our full suite of home appliances delivers many years of exceptional performance, complementing any kitchen décor. Discover how Miele can create special moments... every day - offering a versatile design, which stands the test of time, functionality that simplifies everyday tasks, and quality that will endure for decades.
Key Features
Self Clean Oven & Self Clean Ready Accessories
- During the cooking process, grease residue is continually broken down, helping to keep the oven and cooking accessories clean.
- Grease residue is continually broken down, helping to keep the oven and cooking accessories clean.
Clean Touch Steel™ Front
- This innovative finish resists fingerprints, scratches and smudges. A special treatment stands up to aggressive handling - keeping the exterior cleaner and easier to maintain.
Individual Settings
- You decide: Language, buzzer tones, display brightness and much more can be individually adjusted.
Timer Function
- Miele ovens offer various clock/timer functions. By selecting a start and finish time or the duration of the cooking process, your meals will be perfectly cooked at exactly the right time.
- The process is completed automatically at the programmed time. In the event of a power failure, the clock time is saved for up to approx. 200 hours.
Soft Open & Soft Close
- The Range oven door effortlessly opens and closes, preventing the door from shutting or slamming.
Twinpower Convection Blowers & Power Convection Blower
- Two convection blowers (30" and 36" Range) and one convection blower (48" Range) inside the oven provide rapid heat-up of the oven and optimum hot air distribution.
- Inside the oven provide rapid heat-up of the oven and optimum hot air distribution.
Cooling System & Cool-Touch Fronts
- Maximum protection: all surfaces around the appliance remain cool - offering safety and protection against burns.
Safty Functions
- Automatic switch-off for maximum safety.
- The appliance can be locked at the touch of a button to prevent unintentional operation, e.g. by children.
- Miele ranges switch off automatically if the maximum operating time is exceeded. So you don't need to worry if you forget to switch the appliance off by mistake.
Surround Mode
- Multi-purpose, classic function: perfect results on all traditional baking and roasting dishes.
Convection Roast Mode
- Crispy on the outside, succulent inside: Ideal for chicken, duck, joints, rolled meat and many other meat dishes.
Bake Mode
- Individual requirements: For dishes which need to be cooked in a bain marie or browned from below.
Maxi Broil
- Versatile function for indoors: For grilling large quantities of steak, sausages, kebabs, etc.
Convection Bake
- Perfectly soft and light: ideal for gentle baking on up to two levels
Manuals & Downloads
HR14223I Specification Sheet
Specifications
GTIN
EAN
4002516755906
Technical Details
Amps
50
Voltage
240/208 Volts
Product Information
Brand
Miele
Model
HR14223I
Warranty Terms
2 years ? Miele Appliances are backed by a two year warranty. For additional details, visit https://www.mieleusa.com/c/service-10.htm
Appearance
Clock
Yes
Color
Stainless Steel
Cooktop
Smoothtop
Cooktop Control Type
Digital and Knobs
Double Oven
No
Downdraft Venting
No
Drawer
None
Fingerprint Resistant
Yes
Fuel Type
Induction
Oven Control Type
Digital and Knobs
Stainless Steel Handle
Yes
Style
Freestanding
Viewing Window
Yes
Oven Features
Convection
Yes
Delay Bake
Yes
Digital Temperature Display
Yes
Interior Oven Light
Yes
Racks
6
Self-Cleaning
Yes
Self-Cleaning Type
High Heat
Soft Close
Yes
Timer
Yes
Specifications:
French Top
No
Griddle
No
Grill
No
Series
Induction
Dimensions
Depth
27 3/4 Inch
Exterior Width
30 Inch
Height
35 5/8 Inch
Width
29 15/16 Inch
Electric Cooktop Features
Hot Surface Indicator Light
Yes
Keep Warm Setting
Yes
Capacity
Number of Burners
4
Primary Oven Capacity
4.59 Cu. Ft.
Burner
Power Burner
Yes
Oven compartment
No. of halogen lamps
Double
Number of oven shelf levels
6
TwinPower hot air fans
Yes
Design
Appliance Color
Clean Touch Steel
Oven Display
EasyControl
Cleaning convenience
Catalyzer
unheated
Cooktop surface
Ceramic surface
Oven with self-cleaning program
Yes
Stainless-steel front with partial Clean Touch Steel finish
Yes
Unheated catalyzer
Yes
Safety
Appliance cooling system and cool touch front
Yes
Door contact switch
Yes
Door lock during self cleaning
Yes
Safety cut-out
Yes
System lock
Yes
Standard Accessories
Self Clean ready baking and roasting rack
1
Self clean ready baking and roasting racks with rail system
1
Side racks self clean ready
1
Cooktop Features
Cooking zones with Booster function
4 cooking zones
Cooking zones with keeping warm function
4 rings
Cooking zones with TwinBooster
2 cooking zones
Number of induction cooking zones
4
Residual heat indicator
Yes
Vario zone
4 rings
Operating Modes
Bake
Yes
Convection Bake
Yes
Convection Roast
Yes
Maxi Broil
Yes
Surround
Yes
Technical Data
Appliance height max
37 1/8"
Appliance height min.
35 5/8"
Appliance width
30"
Depth with bullnose
27 3/4"
Fuse rating in Amps
50 A
Number of phases
1
Power Rating in Volts
240/208V
Convenience features
Precise temperature control
75-575°F
Burner Output
Burner 1 (4-6 1/4" diameter)
1,250-2,000W (208V) / 1,450-2,300W (240V)
Burner 2 (5 1/2-7 3/4" diameter)
1,700-2,700W (208V) / 1,950-3,100W (240V)
Burner 3 (6 1/4-9" diameter)
2,100-3,500W (208V) / 2,400-3,850W (240V)
Burner 4 (7-11" diameter)
2,300-3,350W (208V) / 2,700-3,850W (240V)
Total Power Output
6,700W (208V) / 7,700W (240V)
Appliance door
CleanGlass door
Yes
Door contact switch
Yes
SoftClose oven door/ SoftOpen
Yes
Product Overview
Cooktop
Induction
Heating Type
Electric/Induction
User convenience
Automatic switch-off
Yes
Individual settings
Yes
Minute minder
Yes
Precision knobs
Yes
Programmable cooking time
Yes
Time of day display
Yes
General
Manufacturer
Miele
