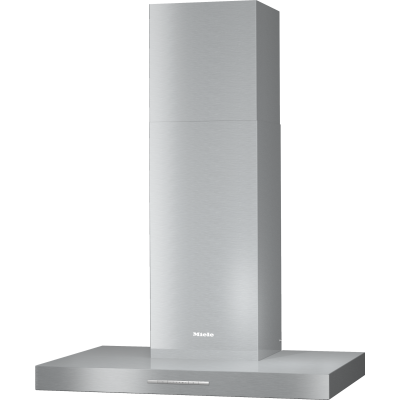

About the Miele PUR88W
- 30" Wall Ventilation Hood 625 CFM
- Stainless Steel and Dishwasher Safe Filters
- Powerful and quiet: Radial blowers on both sides ensure high air throughput and vented with low noise levels
- Sealed, smooth surface prevents contact with the electrical components/motor
- In recirculation mode odors are absorbed and neutralized completely
- Optional - Convertible to Recirculating
- LED lighting and backlit controls for easy use
Brand:
Venting Type:
Convertible
Style:
Chimney Style
Width:
29 1/2"
Height:
39 5/8"
Depth:
19 3/4"
Key Features
Miele CleanCover
- Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Stainless-steel grease filters
- Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable
Design variety
- Clear design, intelligent technology: you can choose between many models and features.
LED ClearView Lighting
- Environmentally friendly and long lasting: With up to 4.5 W they illuminate the cooktop with a warm light.
Automatic 'Intensive' switch-off
- Full power when required: The Booster setting is efficient at extracting strong cooking vapors and odors.
Active AirClean filter
- Efficient in absorbing odors: In recirculation mode odors are absorbed and neutralized completely.
High-quality and powerful motors
- Powerful and quiet: Radial blowers on both sides ensure high air throughput and vented with low noise levels.
PUR88W Installation and User Manual
Specifications
GTIN
JAN
4002515941638
UPC
28428654USA
EAN
4002515941638
Dimensions
Width
29 1/2 Inch
Depth
19 3/4 Inch
Height
39 5/8 Inch
Appearance
Venting Type
Convertible
Mounting Type
Wall Mount
Color
Stainless Steel
Type
Hood
Style
Chimney Style
Product Information
Model
PUR88W
Brand
Miele
Warranty Terms
2 years ? Miele Appliances are backed by a two year warranty. For additional details, visit https://www.mieleusa.com/c/service-10.htm
MPN
28428654USA
Dimensions And Weight
Net weight in lbs. (kg)
51 (23.0)
Minimum distance above electric cooktops in in.
24 1/8
Depth of hood canopy in in.
19 3/4
Height of hood canopy in in.
2 1/2
Minimum height above gas cooktop (max. 12.6 kW total power, bu
26
Canopy width in in.
29 1/2
Overall hood height for recirculation in in.
32 1/8 - 44 3/4
Overall hood height for vented and external in in.
27 - 39 5/8
Features
Dishwasher Safe Filters
Yes
Approved for Outdoor Use
No
Halogen Lighting
No
Technical Details
Voltage
120 Volts
Amps
15
Specifications:
Dishwasher-safe stainless steel grease filters
2
EasyClean CleanCover hood liner
Yes
Programmable 'Intensive' switch-off
Yes
Power levels (number excl. Intensive)
3
Wall ventilation hood
Yes
RAL color
possible as special order
Customization possible
on request
Variable height available
as special order
Variable width available
as special order
Backlit controls
Yes
Control panel
Electronic controls
Recirculated mode
Convertible
LED ClearView lighting
Yes
Light intensity in Lx
330
Color temperature in K
3,000
Safety shut-off
Yes
AC motor
Yes
Dual-action blower
Yes
Technical Data
Telescopic chimney
Yes
Diameter of vent connection in in.
6
Vent connection at top and rear
Yes
Vent connection at top
Yes
Number of phases
1
Fuse rating in A
15
Voltage in V
120
Total connected load in kW
0.36
Length of electrical wire in ft (m)
4 (1.5)
General
Manufacturer
Miele
