About the Monogram ZGP304NRSS
- 4 Sealed Dual-Flame Stacked Burners
- Dual-Burner Bake System
- Reverse Air Convection
- Infrared Broil Burner
- Heavy-Duty Oven Racks
- Star-K Certified
Brand:
Style:
Freestanding
Width:
29 7/8"
Height:
35 1/4"
Depth:
28 1/4"
Capacity:
5.7 Cu. Ft.
Burners:
4
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Only Monogram
No matter how you look at it, the Monogram Collection puts the kitchen of your dreams within the realm of possibility. With three distinct styles and seemingly endless options for customization, only Monogram gives you complete freedom to follow your vision.
Impeccably Timeless
Monogram integrated appliances reflect a mindset that says, "Fine design endures." Shaped and polished to seamless perfection, these sleekly styled appliances capture the essence of timeless sophistication.
Decidely Bold
Monogram professional appliances offer a slightly different angle on appliance design. Lustrous, premium-grade stainless steel with chamfered, hand-finished edges makes a powerfully compelling statement that translates boldly and beautifully to any decor.
Uniquely Personal
Monogram custom-panel appliances provide the perfect canvas for creative expression in the kitchen. Start with a refrigerator or dishwasher, personalize it with a panel of your liking and - voila! - you have something stylish, artful and unquely you.
Key Features
Authentic Professional appearance
- With premium-grade, 304 stainless steel with smoothly finished edges, large electronic control knobs and heavy duty handles
Sealed, dual-flame stacked burners
- Deliver a full spectrum of heat settings, from an ultra-low 140CF simmer to an intense 18,000 BTU
Largest all-gas professional oven capacity
Monogram Professional dual-burner bake system
- Combines Reverse-Air convection technology with an infrared broil and gas burner to provide superb baking results, with fast preheating
Infrared broil burner
- Produces intense heat needed to sear meats to lock in juices and is thermostatically controlled to provide top browning when baking or convection baking
Heavy-duty oven racks
- Glide smoothly in and out on stainless steel ball bearings for easy access, and are designed to remain in the oven during the self-clean cycle
LED task lights
- Below the bull-nose, provide a functional and theatrical touch
Electronic ignition with automatic re-ignition
- Ensures a continuous flame and reignites automatically if accidentally extinguished
Reversible burner grates
- Flat on one side and uniquely contoured on the other to accommodate round-bottom woks
True hidden bake
- Is achieved with a u-shaped burner below the oven floor providing even cooking performance with a clean appearance
ZGP304NRSS Installation Instructions
Key Features
Authentic professional appearance
Stainless steel with smoothly finished edges, large electronic control knobs and heavy duty handles
Sealed, dual-flame stacked burners
Deliver a full spectrum of heat settings, from an ultra-low 140 F simmer to an intense 18,000 BTU
Largest all-gas professional oven capacity available in the 30" professional gas range category
Monogram professional dual-burner bake system
Combines reverse-air convection technology with an infrared broil and gas burner to provide superb baking results, with fast preheating
Infrared broil burner
Produces intense heat needed to sear meats to lock in juices and is thermostatically controlled to provide top browning when baking or convection baking
Heavy-duty oven racks
Glide smoothly in and out on stainless steel ball bearings for easy access, and are designed to remain in the oven during the self-clean cycle
LED task lights
Below the bullnose, provide a functional and theatrical touch
Electronic ignition with automatic reignition
Ensures a continuous flame and reignites automatically if accidentally extinguished
Reversible burner grates
Flat on one side and uniquely contoured on the other to accommodate round-bottom woks
True hidden bake
Is achieved with a u-shaped burner below the oven floor providing even cooking performance with a clean appearance
Large temperature and time displays
Make it easy to monitor cooking progress
Optional full-width stainless steel toekick
Is included with the range
Star-K certification
Allows Monogram ranges to operate in Sabbath mode
Halogen light columns
Provide a clear view, regardless of rack position

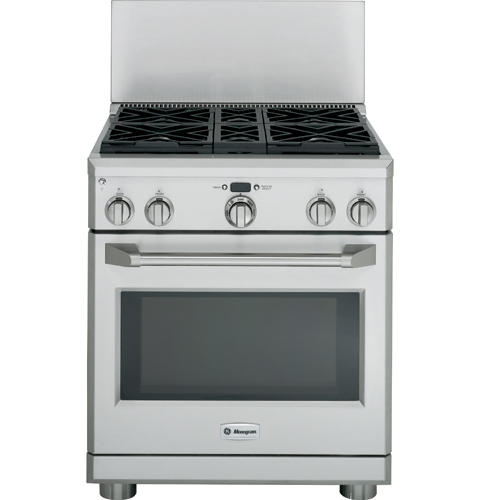

Optional fixed (12 inch) or adjustable-height (30-36 inch) backsplashes
Are available
Specifications
Technical Details
ADA Compliant
No
Amps
15
Ignition Type
Electronic
LP Conversion
Yes
Star-K Certified
Yes
Voltage
120 Volts
Product Information
Brand
Monogram
Model
ZGP304NRSS
UPC
084691224938
Oven Features
Broiler Element Location
Top
Broiler Pan Included
Yes
Convection
Yes
Delay Bake
No
Digital Temperature Display
Yes
Interior Oven Light
Yes
Oven Control Type
Knobs
Primary Oven Capacity
5.7 Cu. Ft.
Proof Mode
Yes
Proofing
Yes
Racks
5
Removable Door
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Temperature Probe
No
Timer
Yes
Burner Output
Burner 1 Output
18000
Burner 2 Output
10000
Set 1 Output
18000
Set 1 QTY
1
Set 2 Output
10000
Set 2 QTY
3
Cooktop Features
Burners / Elements
4
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Griddle
No
Grill
No
Hot Surface Indicator Light
No
Modules Required
No
Appearance
Clock
No
Color
Stainless Steel
Continuous Grates
Yes
Cooktop
Sealed Burner
Drawer
None
Fuel Subtype
Natural Gas
Fuel Type
Gas
Stainless Steel Handle
Yes
Style
Freestanding
Viewing Window
Yes
Dimensions
Depth
28 1/4 Inch
Height
35 1/4 Inch
Interior Depth
19 Inch
Interior Height
16 3/8 Inch
Interior Width
28 1/4 Inch
Width
29 7/8 Inch
Capacity
Number of Burners
4
Capacity
Total Capacity
5.7 cu. ft.
Dimensions & Weights
Approximate Shipping Weight
391 lbs.
Cabinet Width
30"
Height to Cooking Surface
35 1/4" to 36 3/4"
Height with Legs Extended
36 3/4"
Height with Legs Retracted
35 1/4"
Interior Depth
19"
Interior Height
16 3/8"
Interior Width
28 1/4"
Net Weight
351 lbs.
Overall Depth
28 1/4"
Overall Height
35 1/4"
Overall Width
29 7/8"
Power/Ratings
Electrical Requirements
120V; 60Hz; 15A
Top Burner BTU Rating - Natural Gas
(1) 18,000 BTUs; (3) 10,000 BTUs, 140 Degree simmer
Warranty
Labor Warranty
Limited 2-Year Entire Appliance
Parts Warranty
Limited 2-Year Entire Appliance; Limited 5-Year Gas Surface Burners; Limited Lifetime of Oven Racks
Warranty Notes
See Written Warranty for Full Details
Features
140 Deg. Simmer Burner
All Burners - Adjustable
Automatic Self-Clean Oven Door Lock
Yes
Broiler Pan
1
Cleaning Time
Variable
Configuration
4 Burners
Control Type
Digital Temperature Display with Timer Display
Convection Roasting Rack
Yes
Cooking System
Reverse Air Convection
Cooking Technology
Convection
Cooktop Burner Grate Features
Continuous Grates; Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Cooktop Burner Type
4 Sealed, Dual Flame Stacked
Cooktop Surface
Porcelain-Enamel
Fuel Type
All-Gas (Natural Gas)
Ignition System
Electronic with Auto Reignition
Indicator Lights
Burner "On"
Interior Oven Light
6 Halogen Lamps (Caterer Oven)
Lighting
LED Bull-nose Task Lighting
Oven Cleaning Type
Self-Clean
Oven Control Features
Delay Clean Option; Certified Sabbath Mode; Proof Mode
Oven Cooking Modes
Convection Bake; Convection Roast; Bake; Broil
Oven Rack Features
3 Self-Cleaning Oven Racks; 5 Rack Positions; 2 Full Extension Racks
Accessories
Factory-Installed Island Backguard
Yes
LP Conversion Kit
Included
Optional Backguard
12" Stainless Steel Backsplash (ZX12B30PSS); 30"-36" Adjustable Stainless Steel Backsplash with Warming Shelf (ZXADJB30PSS)
Optional Black Control Knobs
WB03K10268
Appearance
Color Appearance
Stainless Steel
Control Knobs
Die-cast Metallic (Included); Diecast Black (Optional)
Design
Professional
Installation
Flush Installation Capable
General
Manufacturer
Monogram
